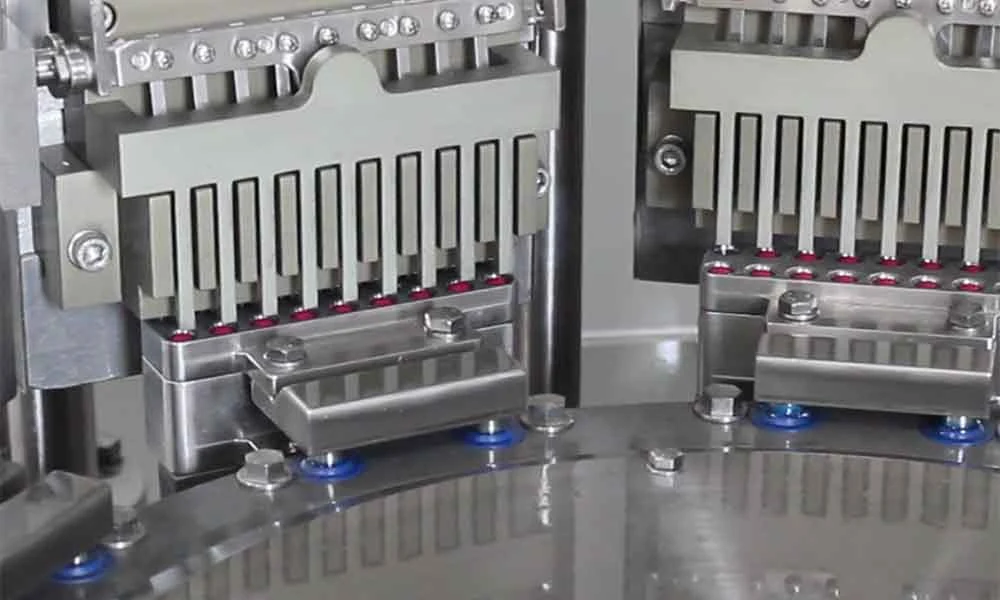

Dosing assembly
Review dosing-disk selection, tamping setup and powder flow using your formulation.
Capsule Filling

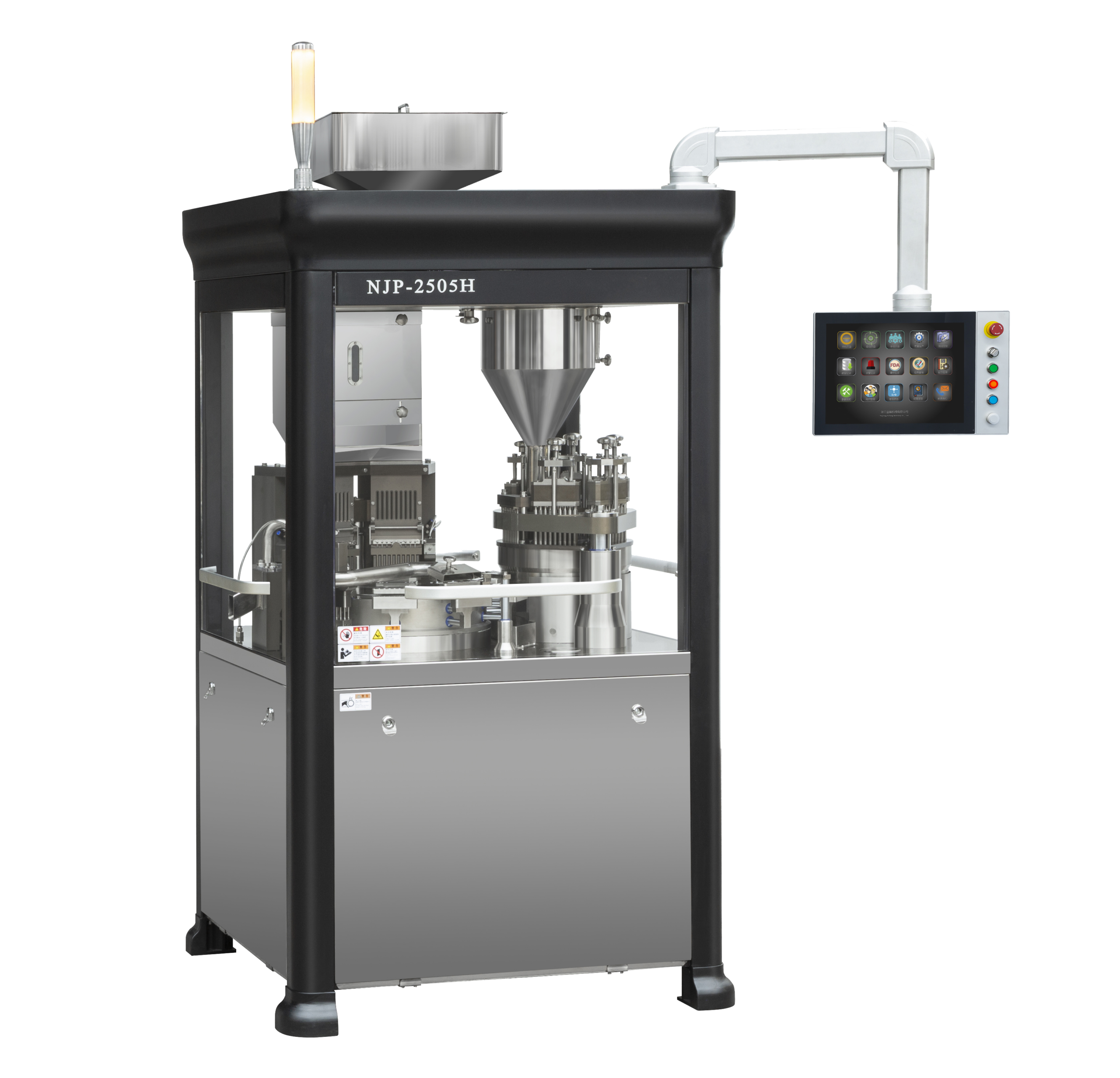

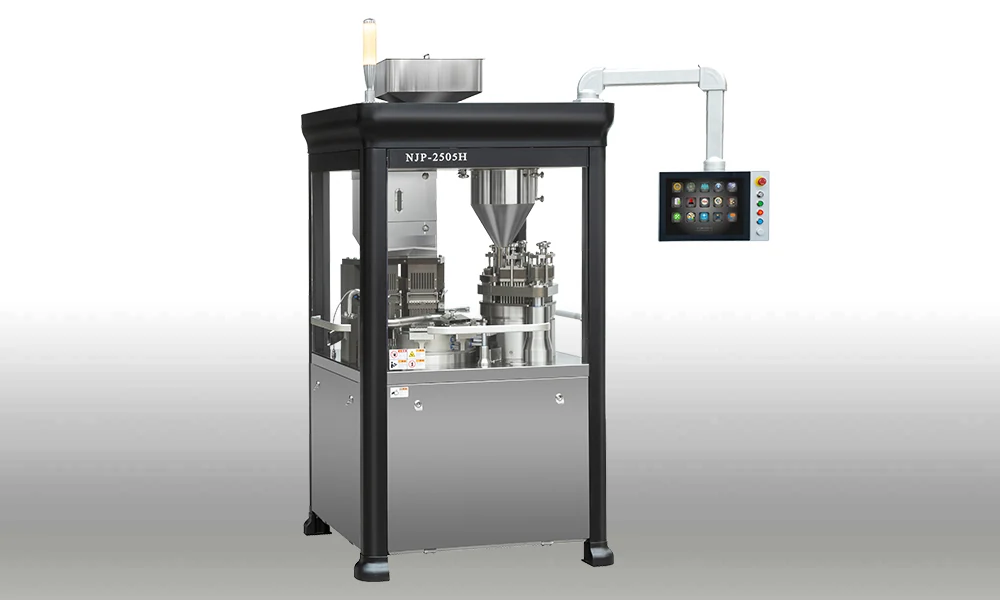

NJP-2505 Automatic Hard Capsule Filling Machine
Automatic hard-capsule filling for powder applications. Match the dosing setup, capsule tooling and supporting utilities to your production requirements.
- 150,000capsules/hour · rated maximum
- Size toolingselected for your capsule
- US setupmodel-specific utilities
A CLOSER LOOK
Inside the
capsule-filling cycle.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

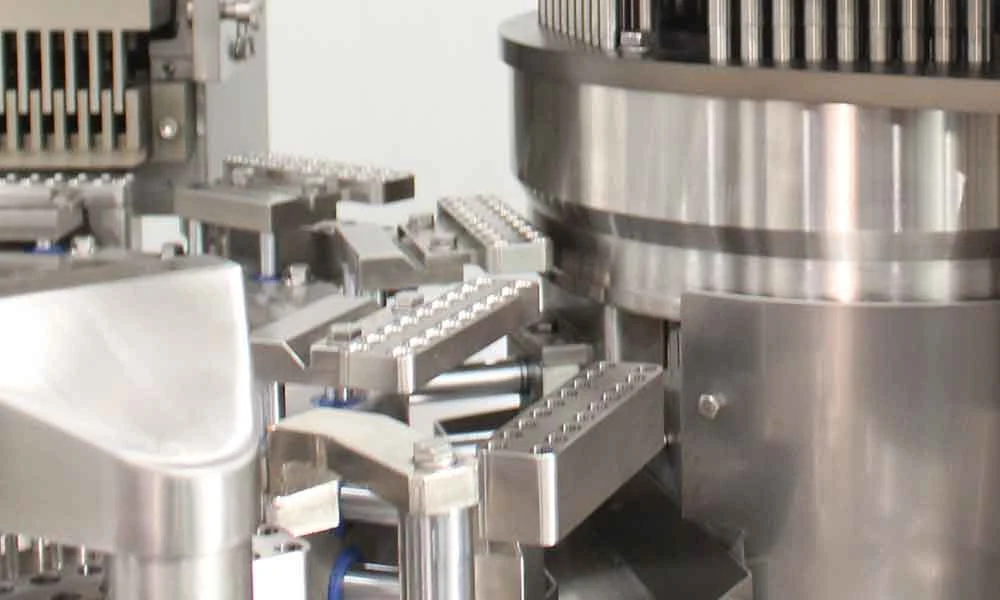

Capsule tooling
Capsule size and change parts determine the setup. Review separation, filling and closing together.

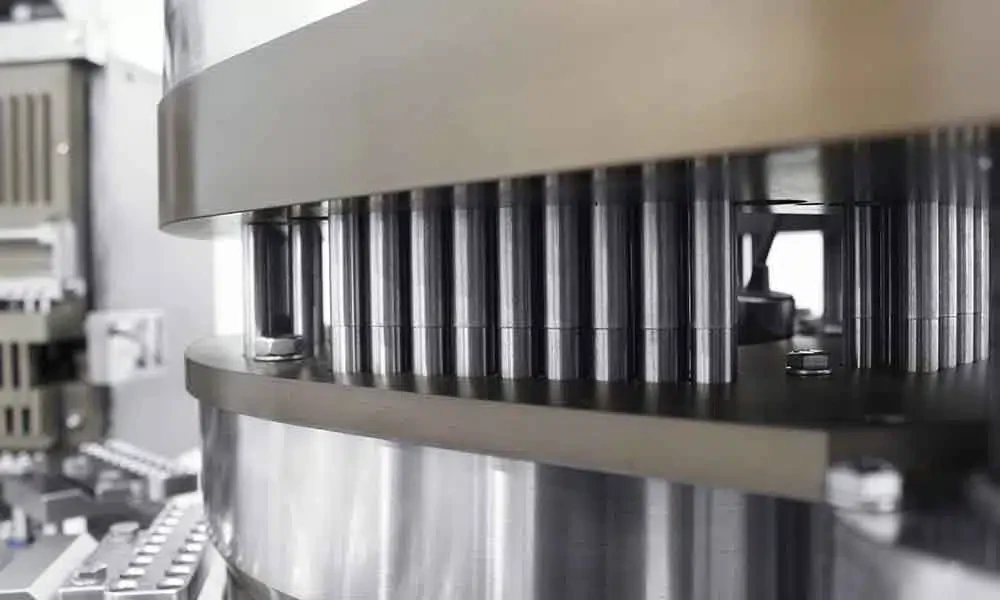

Process access
Discuss inspection, cleaning and access to the operating stations during your equipment review.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
From empty shell
to closed capsule.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01
Orient & separate
Position the shells and separate the caps from the bodies.
- 02
Meter the fill
Set the dosing arrangement around the formulation and fill weight.
- 03
Fill the bodies
Transfer the measured fill into the capsule bodies.
- 04
Close & lock
Rejoin and lock the capsule shells.
- 05
Discharge
Transfer the closed capsules to downstream handling.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
NJP-2505H / CATALOGUE REFERENCEKnow what you
are selecting.
The original catalogue identifies this reference as NJP-2505H. The U.S. configuration uses 220V, 3-phase, 60Hz power. Confirm the total connected load, auxiliary equipment and site connections in your quotation.
Bring these details to the discussion
- Capsule size, shell supplier and target fill weight
- Powder properties and pellet / mixed-fill requirements
- Available utilities, cleaning access and changeover needs
| Model | NJP-2505H |
|---|---|
| Rated maximum output | 150,000 capsules/hour |
| Number of Die Holes | 18 |
| Filling Dosage Form | Powder or Pellets |
| Capsule Size | Capsule size 00# - 5# and safety capsule A-E |
| Motor Power | 3.47kw |
| U.S. power supply | 220V, 3-phase, 60Hz |
| Noise | ≤75dBA |
| Vacuum Degree | -0.02~-0.06 MPa |
| Compressed Air (clean segment) | Air consumption: 4m3/h Pressure: 0.3~0.4 MPa |
| Dimensions | 1120×1260×2100mm |
| Weight | 1400kg |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
COMPARE CONFIGURATIONS
Choose the size
for your process.
Compare catalogue model references. Confirm the selected model and demonstrated results for your product before ordering.
Scroll across to compare models →
| Model | NJP-120C | NJP-700B/C/H | NJP-1205H | NJP-2505H | NJP-3805H | NJP-5602C/H | NJP-7502B/C/H |
|---|---|---|---|---|---|---|---|
| Rated maximum output (capsules/hour) | 7,200 | 42,000 | 75,000 | 150,000 | 228,000 | 336,000 | 450,000 |
Catalogue references · Capacity, output and operating settings depend on the selected format and product. Final parameters are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.

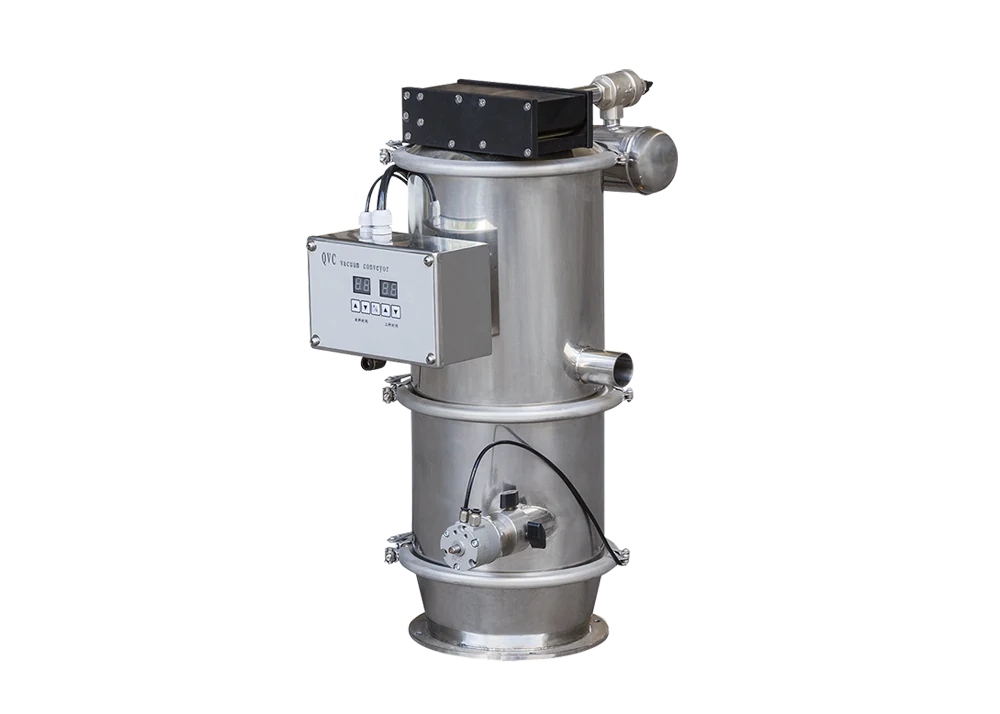

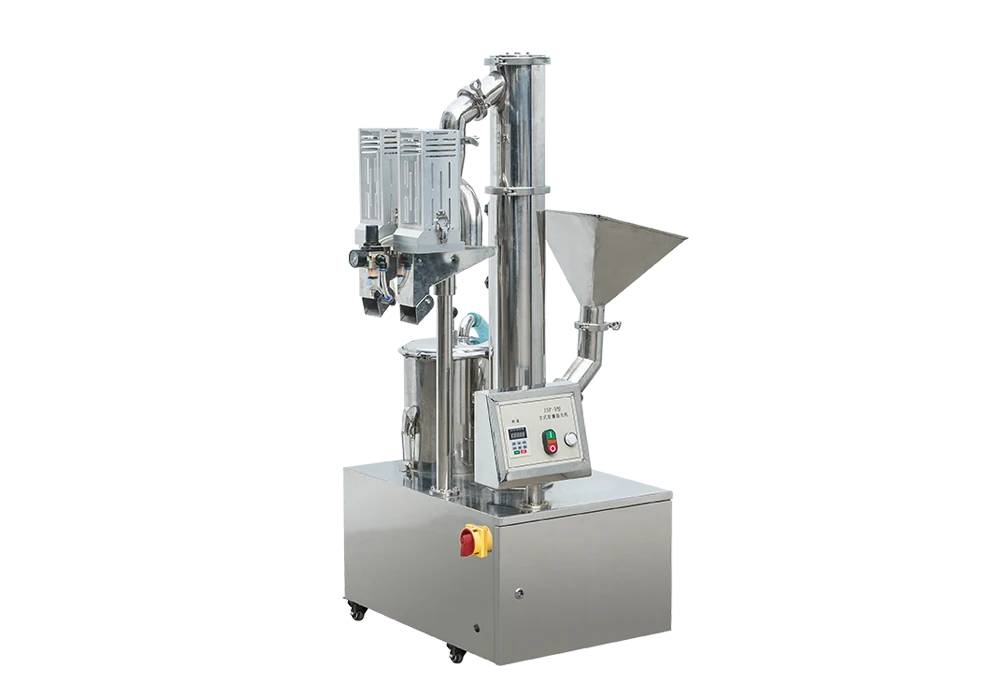

Explore related equipment, then review which items belong in your project scope with our team.
EQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 9.0 MB
