Process chamber
Review charging, chamber access and the working fill level.
Granulating & Blending

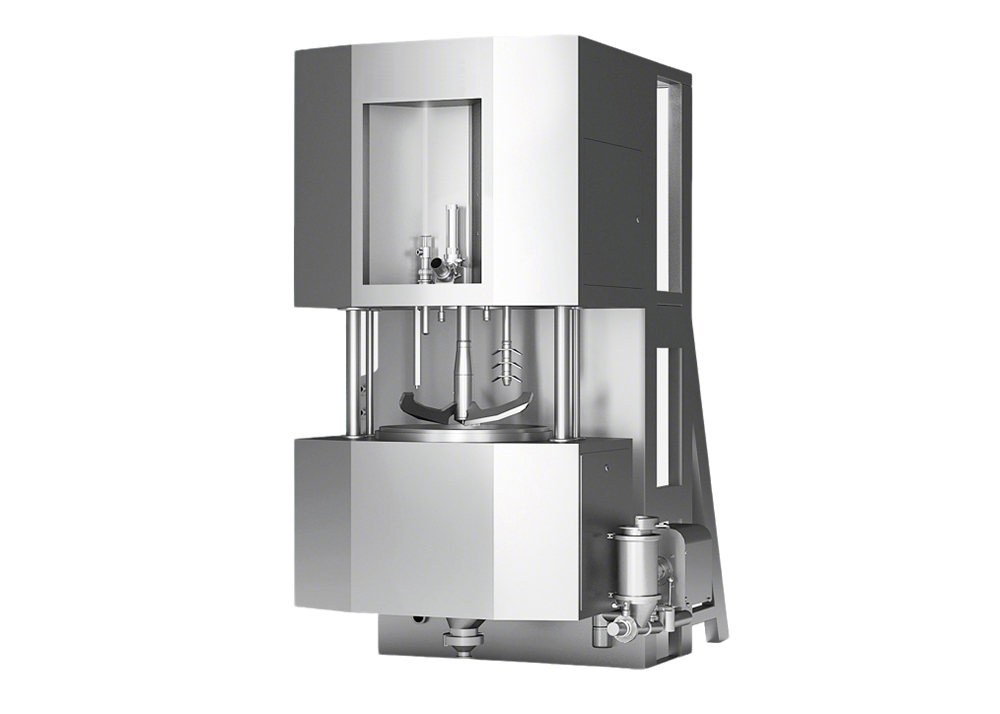

THG Single-Pot Mixer Granulator
Combine powder mixing, binder addition and granule development in a top-drive single-pot process. Review the required drying and discharge configuration for your formulation.
- Wet granulationpowder + binder
- Single-pot designreview the process setup
- Batch sizingbased on working volume
A CLOSER LOOK
See the product
contact area.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

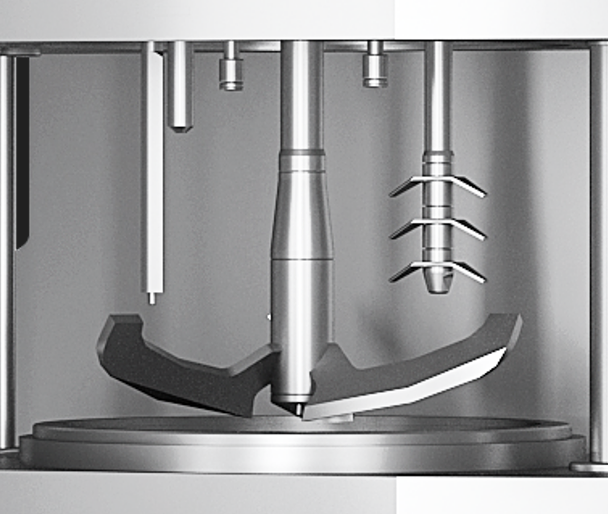

Mixing and granulating components
Match the mixer, chopper and binder-delivery setup to the formulation.

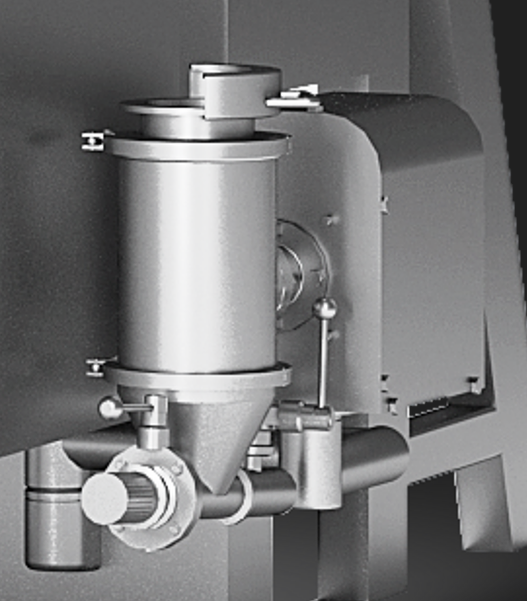

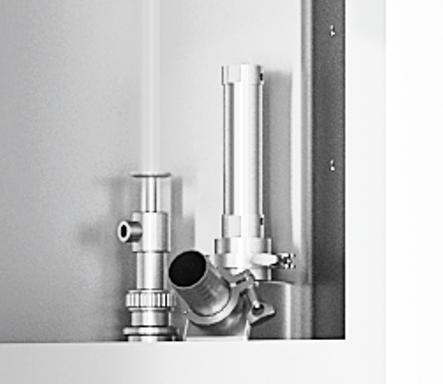

Mechanical and service access
Review access to the mechanical and process components for cleaning and maintenance.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
Mix. Add binder.
Develop granules.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
Charge
Load the ingredients for the selected working batch.
Dry mix
Distribute the powder ingredients before binder addition.
Add binder
Introduce the selected binder at the required rate.
Granulate
Use mixing and chopping to develop the wet granules.
Finish the batch

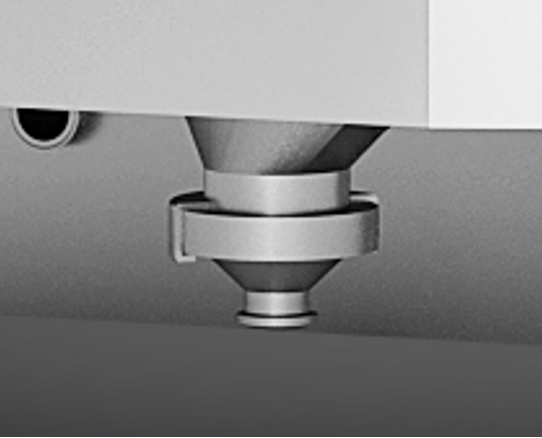

Continue with the selected sizing, drying and discharge arrangement.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
THG Series / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Formulation, binder and powder bulk density
- Working batch size and target granule properties
- Drying method, wet sizing and transfer requirements
| Series reference | THG Series |
|---|---|
| Process scope | Mixing and granulation; drying / sizing options confirmed separately |
| Effective volume | 75 L - 1100 L |
| Total power | 8.5 kW - 55.0 kW |
| Production Capacity | 15 kg - 440 kg |
| Compressed air consumption | 0.4 - 1.8 m3/min |
| Compressed air pressure | 0.6 - 0.8 MPa |
| US three-phase configuration | 220V, 3-phase, 60Hz; connected loads confirmed in quotation |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.

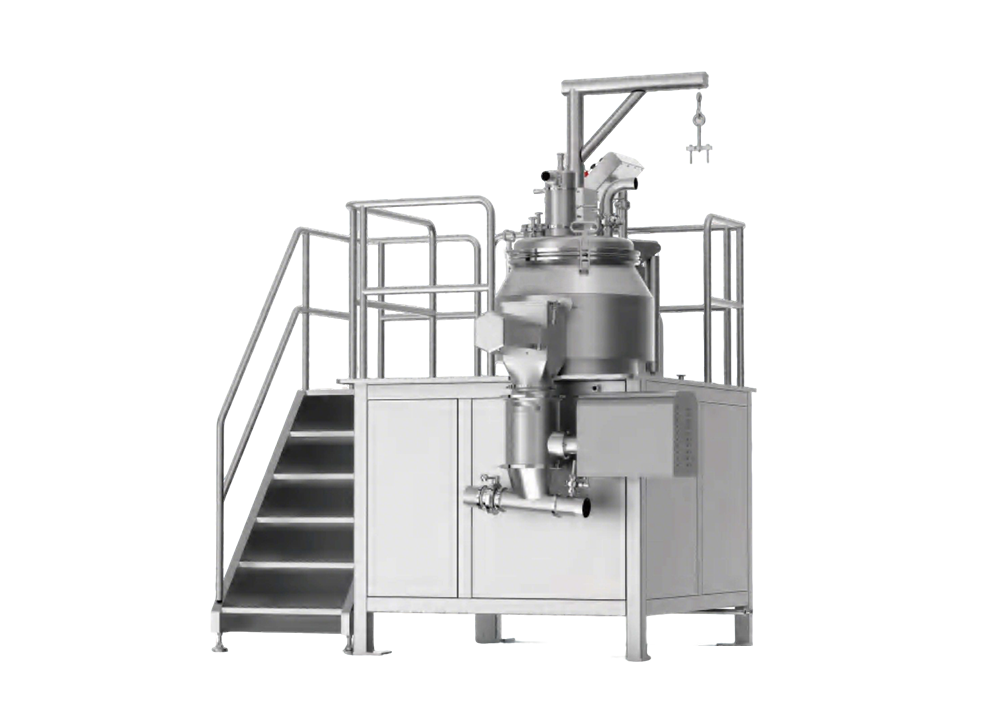

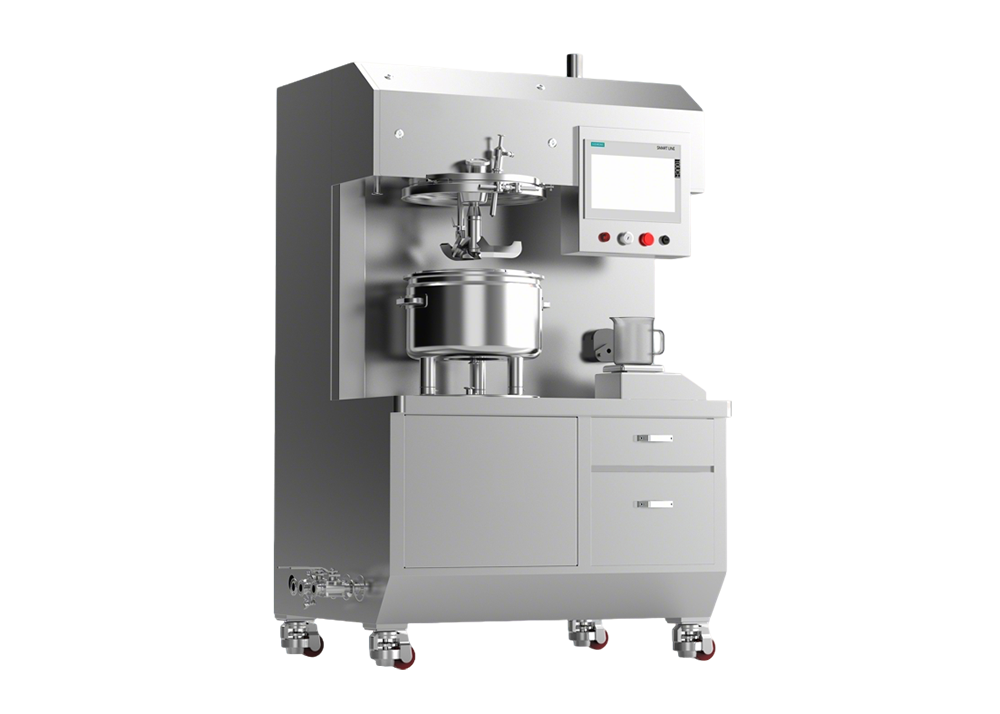

Explore related equipment, then review which items belong in your project scope with our team.
EQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 2.2 MB
