GZL-150H Roller Compactor
Compact powder into ribbons and mill the compacted material into granules without adding a liquid binder. Review the formulation, target granule distribution and downstream process together.
- 50–200kg/hcatalogue application / capacity
- Dry granulationno added liquid binder
- Product trialscheck compaction and granules
A CLOSER LOOK
Review the complete
compaction path.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

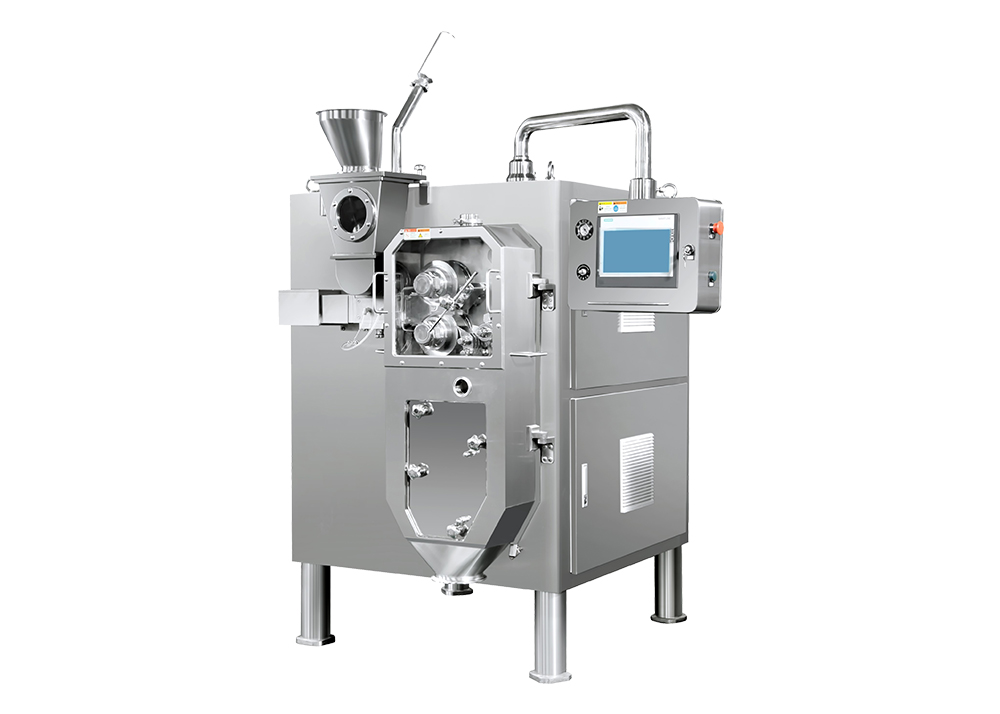

Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS / GZL-150H
Powder to ribbon
Ribbon to granules
Follow the powder through the GZL-150H. Watch the complete process, or select a stage to explore screw feeding, roll compaction, crushing and discharge.
GZL-150HDry granulation
STEP 01 / 04
Feed and release trapped air
A hollow vertical screw moves powder from the hopper into the horizontal feeder. Part of the entrained air escapes upward through the hollow screw, while the powder becomes more densely packed.
STEP 02 / 04
Precompress before the rolls
The horizontal screw advances the deaerated powder toward the roll nip. Screw feeding provides further precompression and a controlled supply to the compaction rolls.
STEP 03 / 04
Press powder into a ribbon
Two rolls, arranged one above the other, rotate in opposite directions and draw powder through the nip. Hydraulic loading provides the compaction force. Roll gap and operating settings are reviewed with your material.
STEP 04 / 04
Break the ribbon and discharge
A cutter-and-tooth crusher breaks the compacted ribbon into smaller pieces. The granulated material then leaves through the product outlet. Crushing is a separate operation from roll compaction.
Full process
About this illustration
Based on the GZL-150H operating manual and the confirmed machine configuration. The drawing simplifies housings and transmission parts. The manual describes water-cooled rolls; cooling water is separate from the dry product path. No liquid binder or process water is added to the powder in the illustrated process. Loading and transfer equipment are confirmed for each project.
CONFIGURATION & SELECTION
GZL-150H / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Powder compressibility, bulk density and moisture sensitivity
- Target granule distribution and downstream use
- Trial quantity, throughput and cooling / dust-handling needs
| Model reference | GZL-150H |
|---|---|
| Production capacity | 50~200kg/h |
| Pressing roller size | Ф160 x 54mm |
| Maximum system pressure | 25MPa |
| Maximum roller pressure | 10t |
| Input power | 7.95kW |
| US three-phase configuration | 220V, 3-phase, 60Hz; connected loads confirmed in quotation |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
