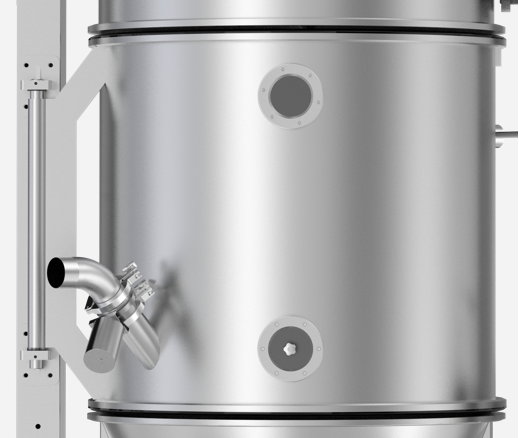

Processing chamber

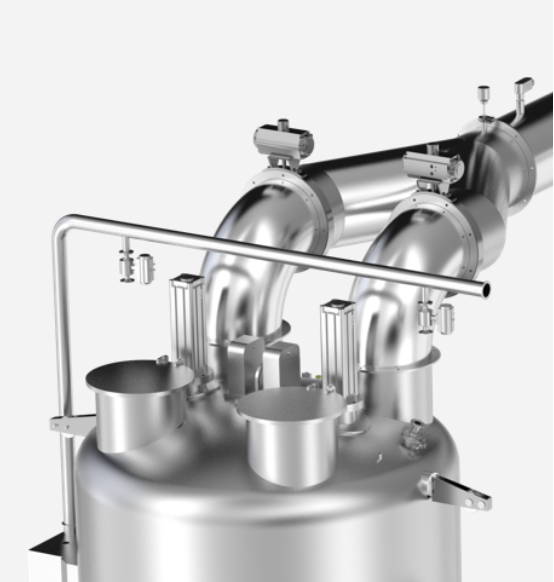

Review chamber access and the product container arrangement.
Granulating & Blending

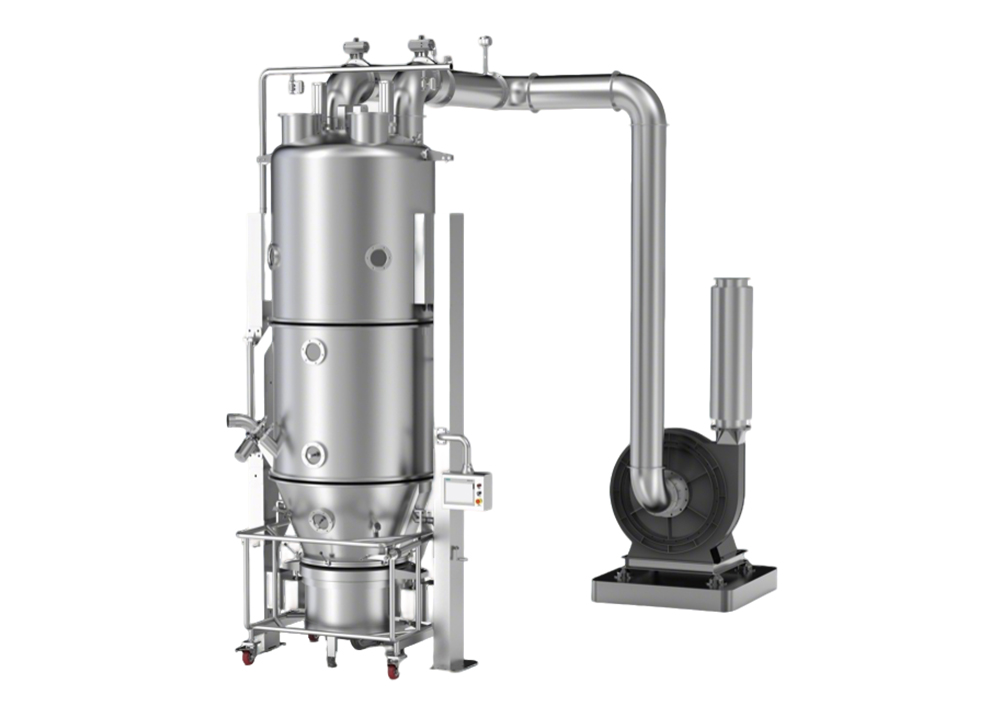

Fluid Bed Dryer (FG Series)
Dry wet granules with a controlled fluidizing air stream. Review air handling, temperature and the required product endpoint as part of the complete installation.
- Fluid-bed processcontrolled product air stream
- Dryingselected for the application
- Batch selectionworking load depends on product
A CLOSER LOOK
Inside the
fluid-bed system.
Review the equipment photographs alongside the application, access and changeover requirements for your process.
Product handling

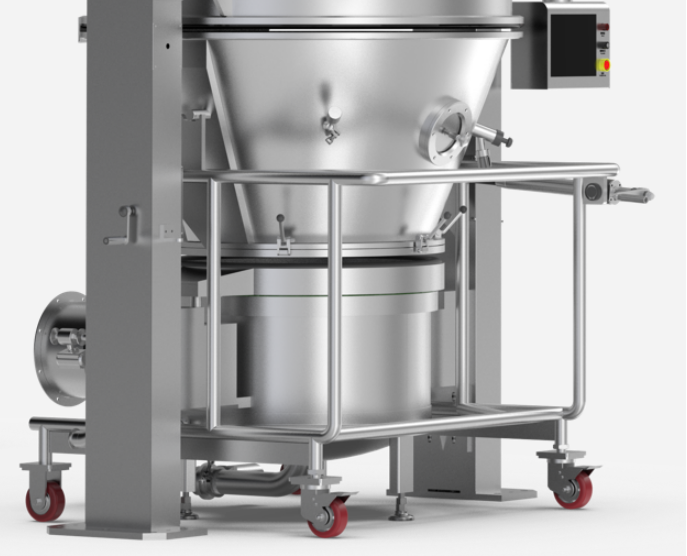

Match loading, discharge and cleaning access to your batch routine.
Air and process components

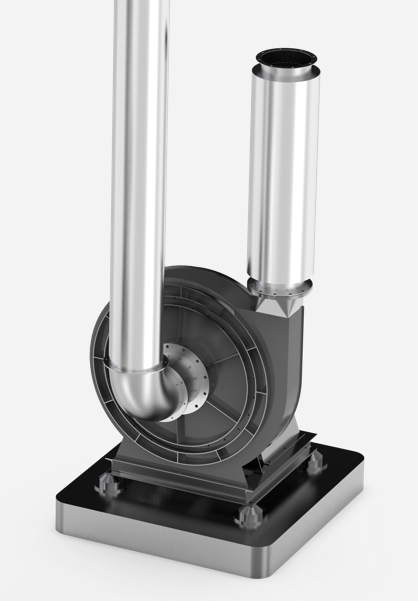

Discuss the selected air handling, filters and process attachments with our team.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
Control the air.
Develop the process.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
Load
Load the wet granules into the product container.
Condition air
Prepare the required inlet air conditions.
Fluidize & dry
Pass the process air through the product bed.
Check endpoint
Evaluate the product moisture against your process target.
Discharge
Discharge the dried product for the next step.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
FG Series / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Material bulk density, batch load and target endpoint
- Incoming moisture and desired final moisture
- Available steam / heating, air handling, ceiling height and exhaust route
| Series reference | FG Series |
|---|---|
| Process | Fluid-bed drying |
| Heating and air handling | Scope and utility loads selected for the project |
| Effective volume | 45 L - 1430 L |
| Total power | 7.5 kW - 75 kW |
| Steam pressure | 0.4 - 0.6 MPa |
| Compressed air pressure | 0.6 - 0.8 MPa |
| Compressed air consumption | 0.4 - 1.8 m3/min |
| Heating temperature range | Room temperature - 120 °C |
| US three-phase configuration | 220V, 3-phase, 60Hz; connected loads confirmed in quotation |
