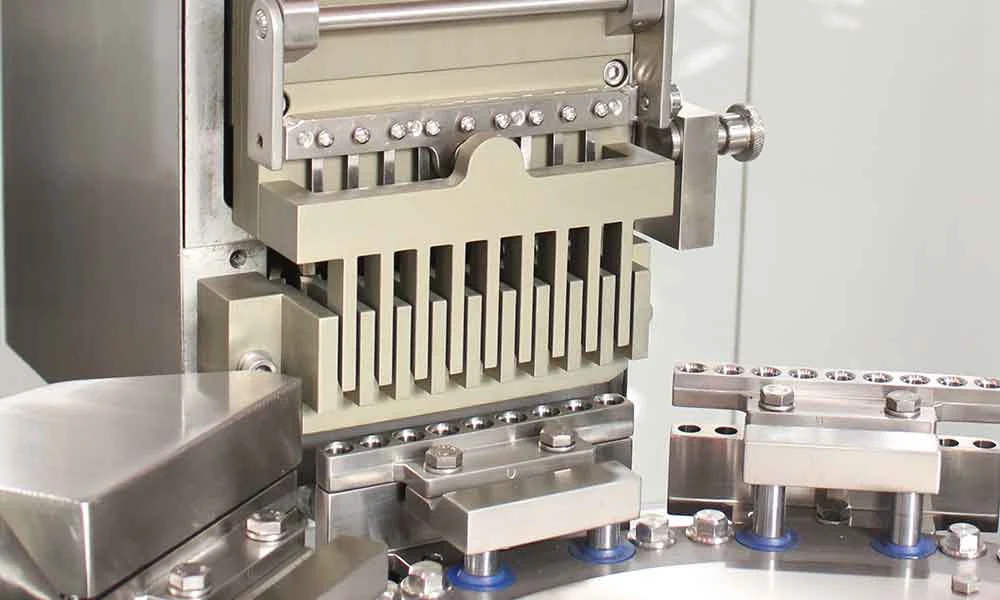

Dosing and filling assembly
Review the powder characteristics, target fill weight and dosing setup together. The quoted NJP-1250C uses a nine-hole tooling arrangement.
Capsule Filling

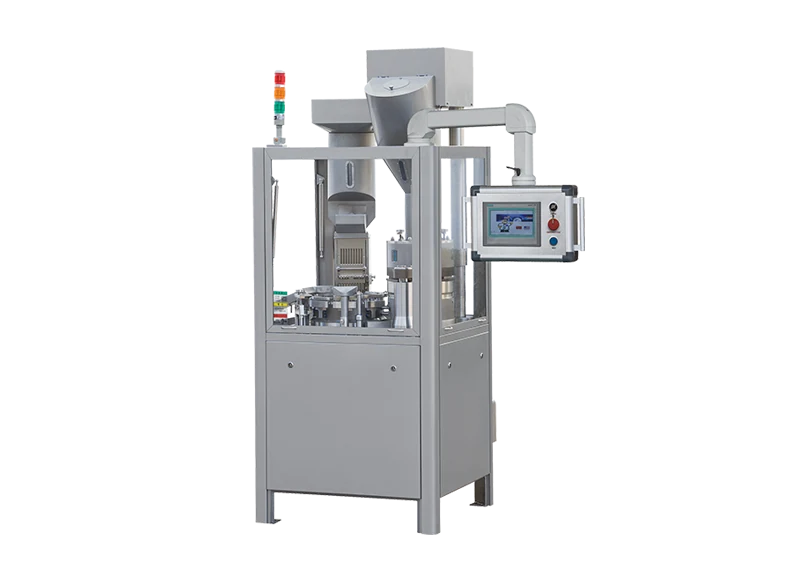

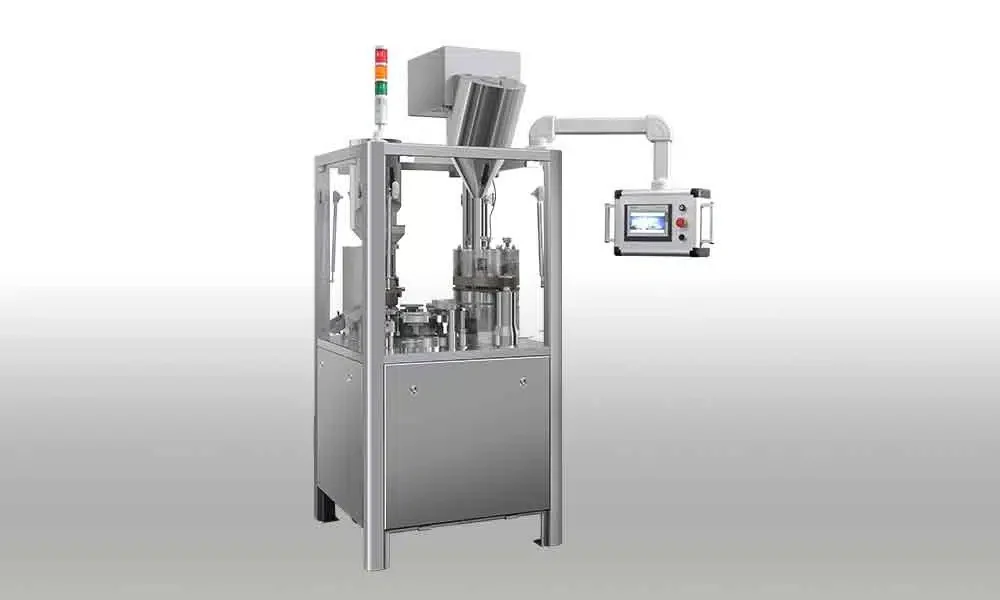

NJP-1250C Automatic Capsule Filler
Automatic hard capsule filling for powder applications, with pellet-filling options. Review the dosing setup, capsule tooling and supporting equipment around the product you actually run.
- 75,000capsules/hour · rated maximum
- 00–5capsule sizes · tooling selected
- 220V / 3P60Hz · US configuration
SEE THE EQUIPMENT AT WORK
Watch the process.
Watch the NJP-1250 series run, then discuss your capsule format, formulation and machine setup with our team.
Discuss your material and trial goalsPlays here · Connects to YouTube
ENCAP NORTH AMERICA / YOUTUBE
Open on YouTube NJP-1250 capsule filling demonstration
NJP-1250 series demonstration. Tooling and the final ordered configuration are confirmed for your application.
A CLOSER LOOK
See what goes into
the filling process.
Look beyond the outside cabinet. Dosing, capsule handling and operator controls all belong in the equipment discussion.

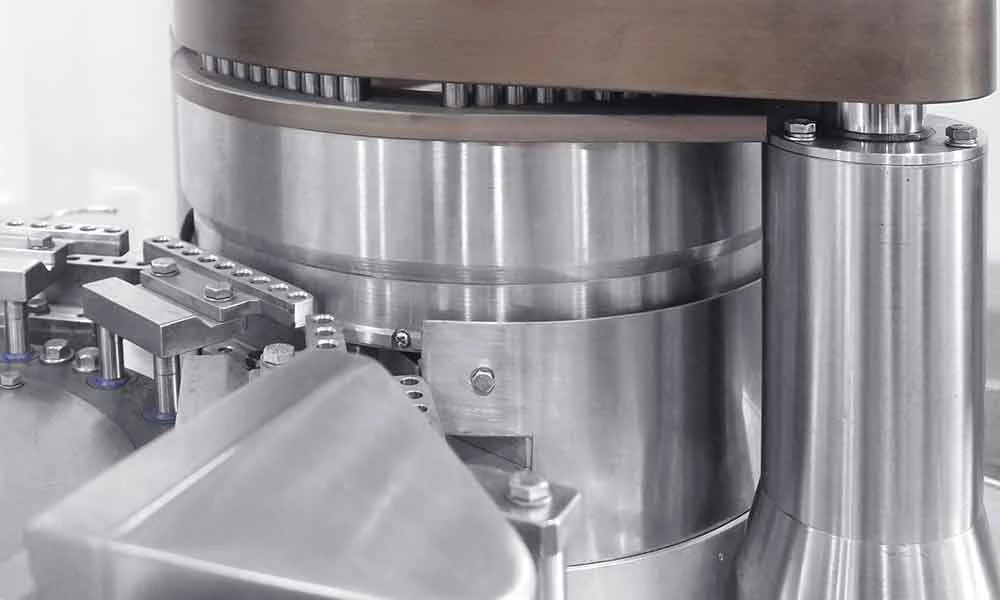

Capsule handling and access
Capsule format and change parts shape the setup. Discuss changeover, cleaning access and the operating routine your team will use.

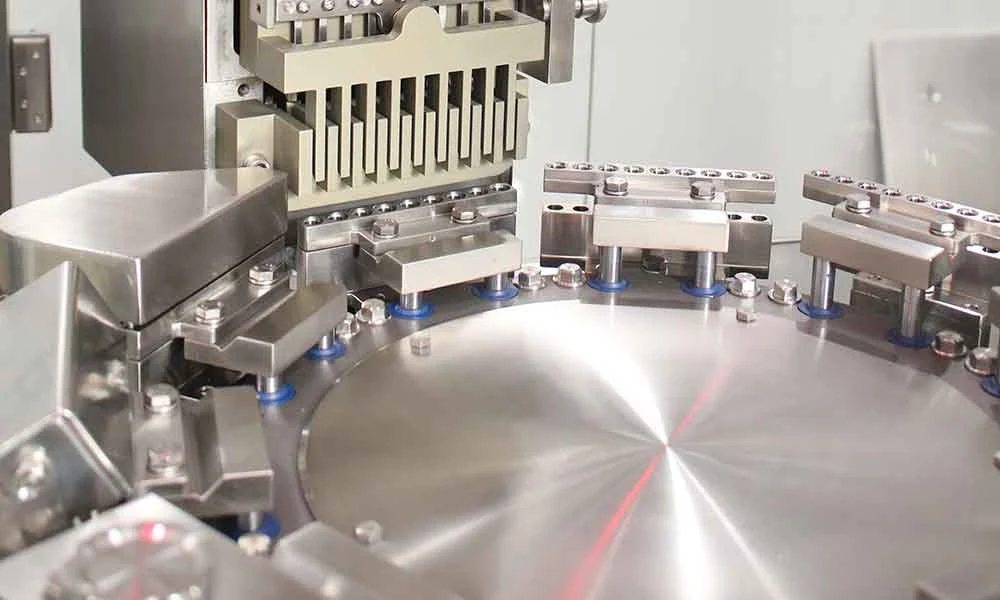

Access for setup and cleaning
Review the change parts, cleaning access and routine setup checks your operators need. Training and production coaching can be arranged for your equipment.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
From empty shell
to filled capsule.
A simplified view of the automatic filling cycle. Tooling and dosing are selected for your capsule and formulation.
- 01
Orient & separate
Position the empty capsules and separate caps from bodies.
- 02
Meter the material
Set the dosing system around the powder and target fill weight.
- 03
Fill the bodies
Transfer the metered material into the capsule bodies.
- 04
Close the capsules
Bring the cap and body back together and lock the capsule.
- 05
Discharge
Release the closed capsules for the next process step.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
NJP-1250C / CONFIGURATION REFERENCEKnow what you
are selecting.
The rated output is a manufacturer maximum. Actual output and fill-weight performance depend on your material, capsule format, tooling and operating conditions.
Bring these details to the discussion
- Capsule shell, size and target fill weight
- Powder flow and pellet-filling requirements
- Dust collection, vacuum and connected auxiliary loads
| Model reference | NJP-1250C |
|---|---|
| Rated maximum output | 75,000 capsules/hour |
| Capsule sizes | 00–5; size-specific change parts |
| Filling applications | Powder; pellet device available on request |
| Dosing tooling | 9 holes |
| US main-machine supply | 220V, 3-phase, 60Hz |
| Quoted motor loads | 2.67kW main unit + 2.2kW dust collector |
| Controls | PLC with touch screen |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
COMPARE CONFIGURATIONS
Choose the size
for your process.
Compare catalogue model references. Confirm the selected model and demonstrated results for your product before ordering.
Scroll across to compare models →
| Model | NJP-120C | NJP-700B/C/H | NJP-1250B/C/H | NJP-2505H | NJP-3800B/C/H | NJP-5602C/H | NJP-7502B/C/H |
|---|---|---|---|---|---|---|---|
| Rated maximum output (capsules/hour) | 7,200 | 42,000 | 75,000 | 150,000 | 228,000 | 336,000 | 450,000 |
Catalogue references · Capacity, output and operating settings depend on the selected format and product. Final parameters are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportAFTER DELIVERY
Support the people
running the machine.
We can assist with installation, commissioning, operator training, production coaching, maintenance and repair. The scope is agreed around your site and equipment.
Explore technical supportCan we arrange a material trial?
Yes. Share your material, target fill weight, capsule format and trial goals. Our team will confirm a suitable machine and appointment in San Diego.
What power supply will we need?
Our standard US three-phase configuration is 220V, 3-phase, 60Hz. We confirm auxiliary supplies and connected loads for the ordered system. Share the power available at your facility during selection.
What is included with the machine?
Your quotation identifies the base equipment, change parts, accessories and service scope. We review these with you before ordering.
Can you help after commissioning?
Discuss production coaching, preventive maintenance and repair support with our team.
