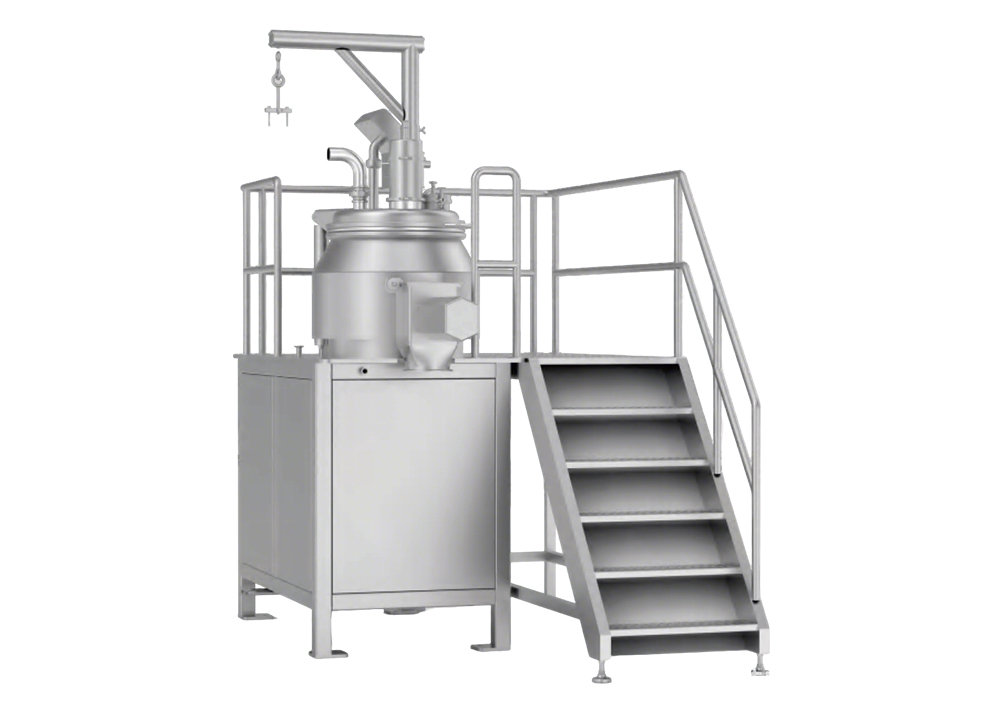

THRapid Mixer Granulator (SHL Series)
You are here:
Widely used in the pharmaceutical, food, and chemical industries where facility height is a constraint.
Designed for operational efficiency in standard pharmaceutical granulation, focusing on cleaning optimization via WIP systems and precise control over particle morphology via variable frequency chopping.
ATTRIBUTES
- Facility Compatibility: Features a lower working platform without sacrificing throughput or batch capacity, primarily suitable for rooms with lower ceiling heights.
- Process Reproducibility: Features advanced safety interlocks and process monitoring to guarantee batch-to-batch uniformity.
- System Integration: Can seamlessly connect with a fluid bed dryer or milling equipment to form a fully closed production line.
Key Features & Benefits
Volume Range:
Effective volume from 100 L to 1000 L.
Batch Capacity:
20 kg to 400 kg per batch.

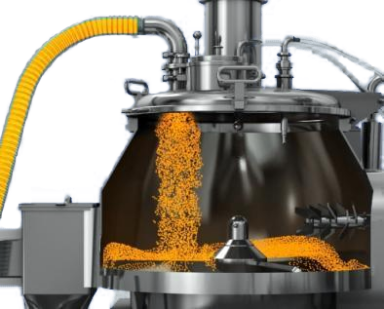

Mixing Impeller:
Tangential blade geometry for maximized shear force.
Chopper Speed:
Variable (300 – 2800 RPM) for precise granule size control.
Compressed Air:
Operating pressure of 0.6 – 0.8 MPa.
TECHNICAL PARAMETERS
| HD Series | |
|---|---|
| Specification | Details |
| Effective volume | 100 L - 1000 L |
| Total power | 17.2 kW - 71.5 kW |
| Granulating chopper rotation speed | 300 - 2800 RPM |
| Wet co-mill rotation speed | 300 - 900 RPM |
| Compressed air consumption | 0.4 - 1 m3/min |
| Compressed air pressure | 0.6 - 0.8 MPa |
Product references: SHL-100 / SHL-150 / SHL-200 / SHL-300 / SHL-400 / SHL-500 / SHL-600 / SHL-800 / SHL-1000 MODELS
