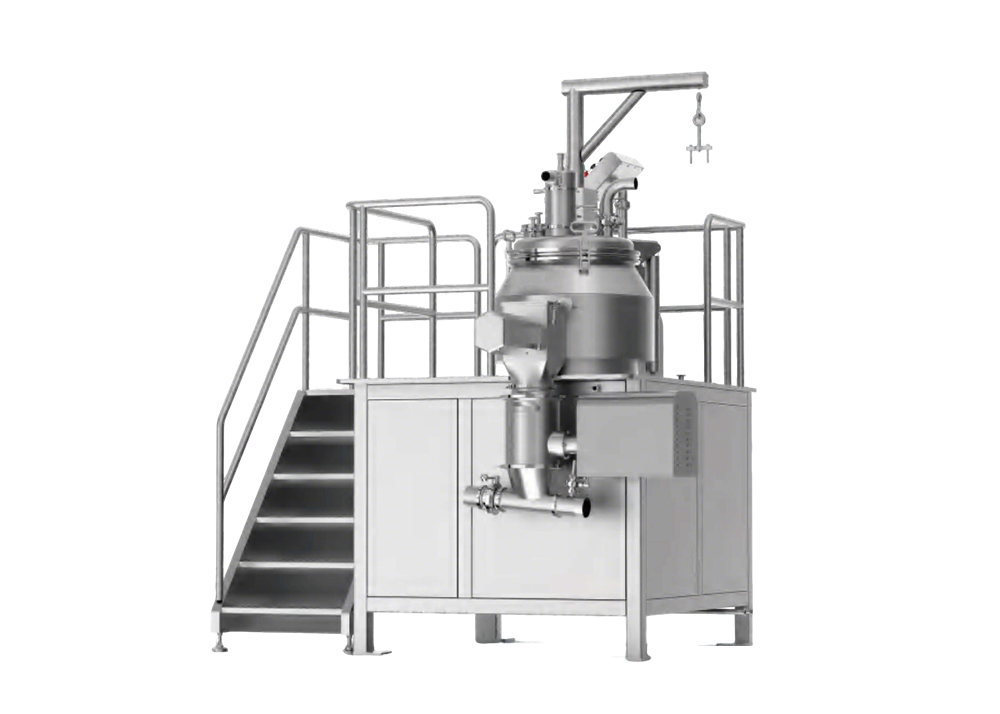

High Shear Mixer Granulator (SHLG Series)
You are here:
Ideal for pharmaceutical and food production lines requiring a fully closed granulating process.
Designed for operational efficiency in standard pharmaceutical granulation, focusing on cleaning optimization via WIP systems and precise control over particle morphology via variable frequency chopping.
Our flagship industrial production model, optimized for seamless integration with Fluid Bed Dryers (FBD) for efficient, large-scale manufacturing.
ATTRIBUTES

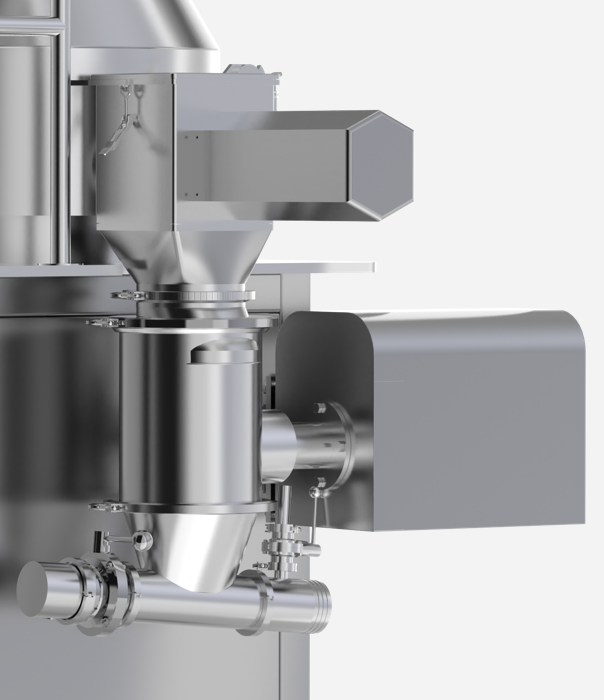

- Efficient Integration: Designed with a higher working platform, Specifically engineered for gravitational discharge directly into Fluid Bed Dryers (FBD), enabling a fully closed production line.
- Compliance: Fully meets FDA, cGMP, and GMP standards.
- Intelligent WIP System: Retractable rotating cleaning balls ensure 360° coverage with zero dead zones.
Key Features & Benefits
Volume Range:
Effective volume from 100 L to 1000 L.
Batch Capacity:
20 kg to 400 kg per batch.
Mixing Impeller:
Tangential blade geometry for maximized shear force.

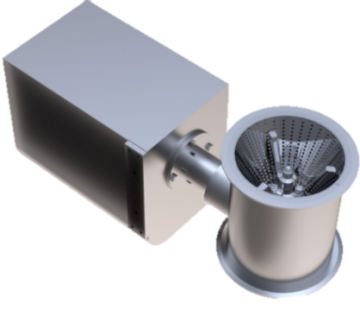

Chopper Speed:
Variable (300–2800 RPM) for precise granule size control.
Control System:
Optional control system compliant with 21CFR Part11 requirements.
TECHNICAL PARAMETERS
| HD Series | |
|---|---|
| Specification | Details |
| Effective volume | 100 L - 1000 L |
| Total power | 17.2 kW - 71.5 kW |
| Granulating chopper rotation speed | 300 - 900 RPM |
| Compressed air consumption | 0.4 - 1 m3/min |
| Compressed air pressure | 0.6 - 0.8 MPa |
Product references: SHLG-100 / SHLG-150 / SHLG-200 / SHLG-300 / SHLG-400 / SHLG-500 / SHLG-600 / SHLG-800 / SHLG-1000 MODELS
