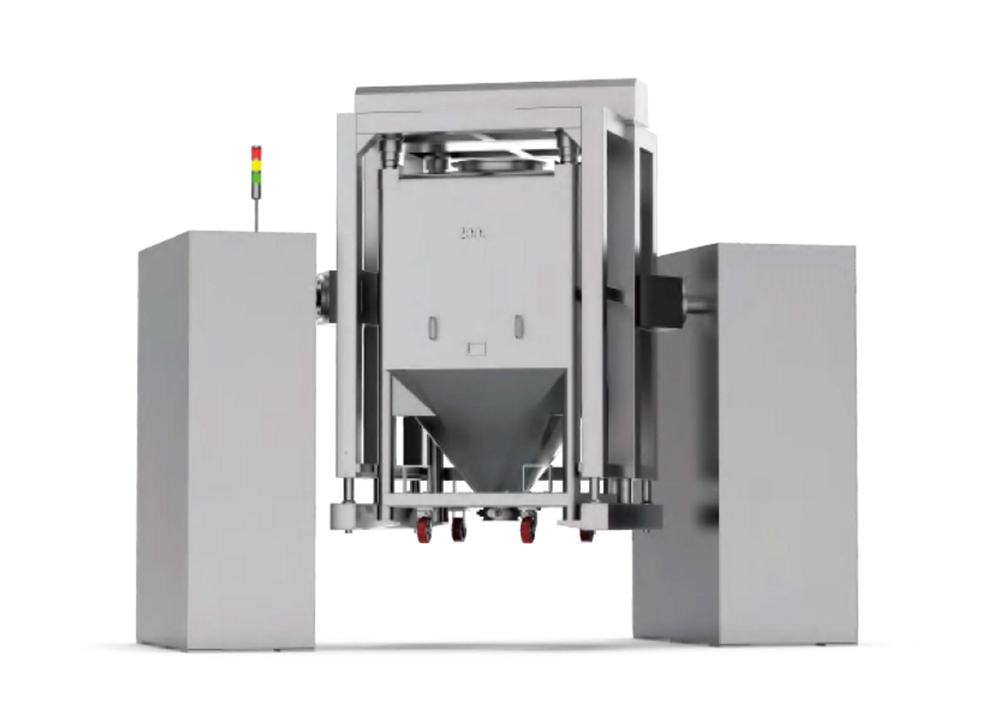

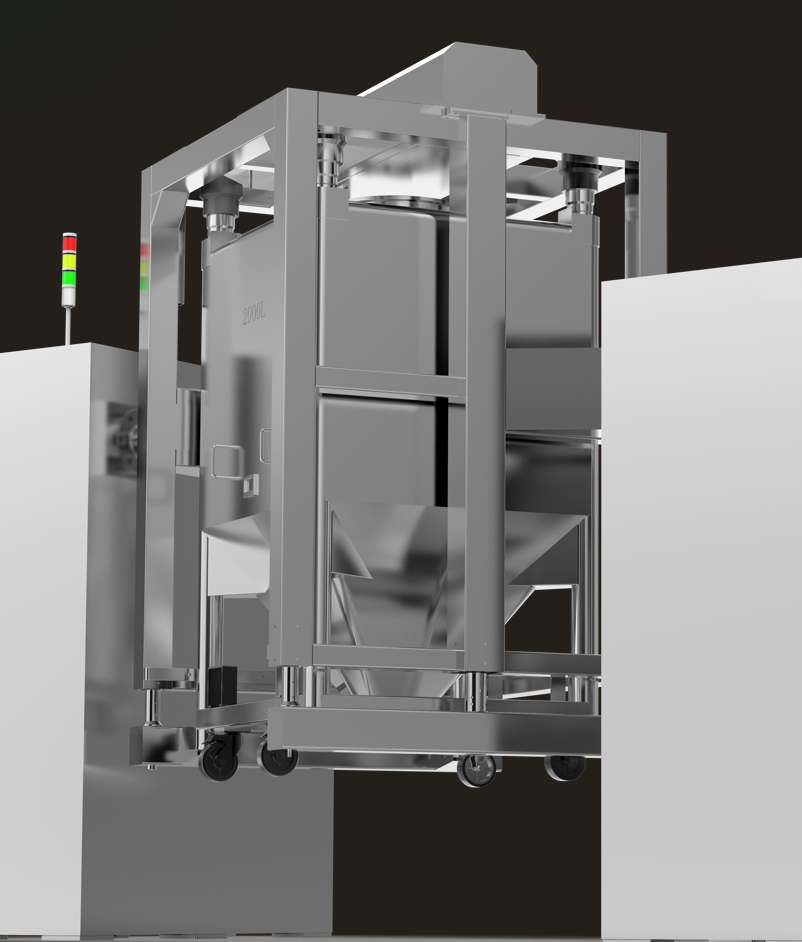

Automatic Lifting Bin Blender
(ZTH Series)
Automatic Lifting Bin Blender
You are here:
Focus on the 30° offset rotation that forces high-speed tangential movement for maximum uniformity in large batches.
Heavy-duty industrial powder mixing in pharmaceutical and chemical plants. Used for large batches where high-speed tangential material movement is needed to achieve maximum uniformity.
ATTRIBUTES
- Maximum Mixing Efficiency: The unique 30° offset forces material into high-speed tangential movements along the container walls, creating a vigorous tumbling action for optimal blend uniformity.

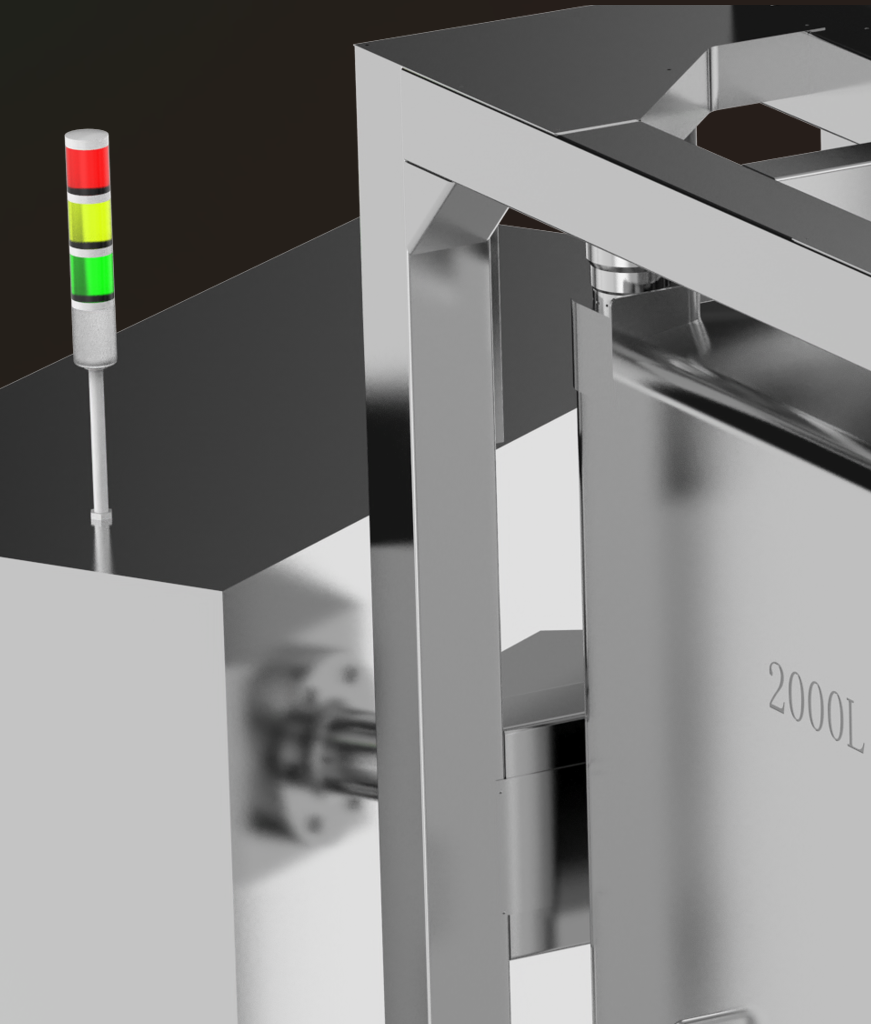

- Comprehensive Safety Systems: Equipped with infrared safety barriers and multi-tiered interlocking mechanisms to ensure maximum operator protection.
- Advanced Dust and Contamination Control: The sealed system effectively eliminates dust emissions and material segregation, optimizing the production process while maintaining strict contamination control.
Key Features & Benefits
Bin Volume Range:
400 L to 3,000 L
Maximum Load Capacity:
Supports up to 1,500 kg for the largest model.
Optimal Mixing Angle:
The symmetry plane of the rotating bin is fixed at a 30° angle relative to the rotation axis, maximizing cross-flow efficiency.
TECHNICAL PARAMETERS
| ZTH Series | |
|---|---|
| Specification | Details |
| Bin Volume Range | 400 L – 3000 L |
| Max Loading Weight | Up to 1500 kg |
| Total Power | 7 - 15 kW |
| Mixing Angle | 30° offset |
Product references: ZTH-400 / ZTH-600 / ZTH-800 / ZTH-1000 / ZTH-1200 / ZTH-1500 / ZTH-2000 / ZTH-2500 / ZTH-3000 MODELS
Featured Products
GZL-1000 Roller Compactor
Gantry Type Lifting Bin Blender (LHLT Series)
Air Flow Mixer (WQH Series)
Fluid Bed Dryer (FG Series)

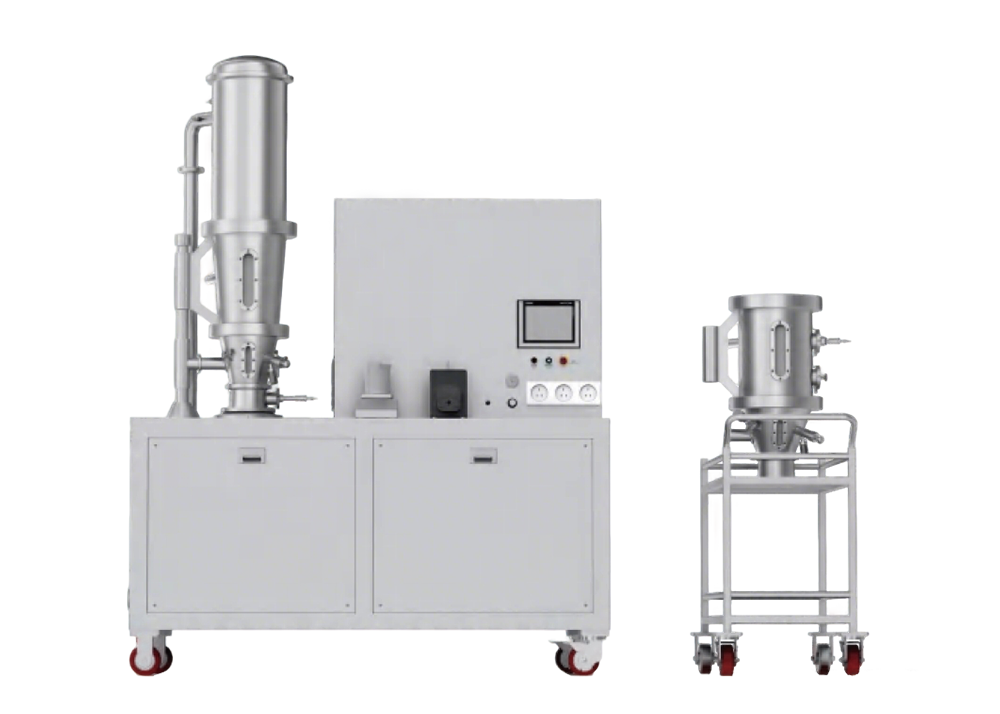

Lab Multifunctional Fluid Bed Granulator (DPLS Series) (Copy)
