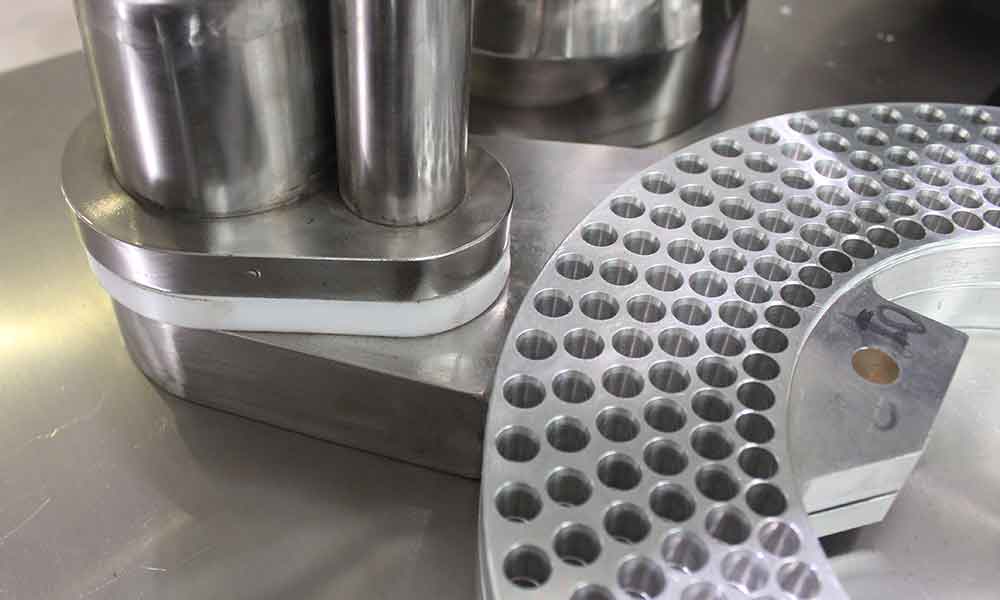

Capsule plate tooling
Match the plate holes and change parts to your capsule shell.
Capsule Filling

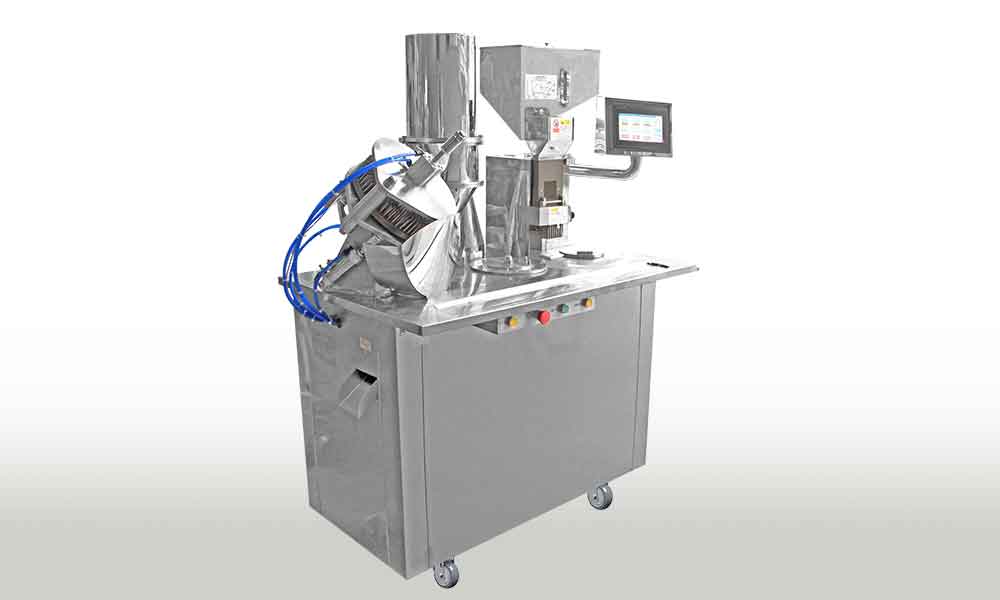

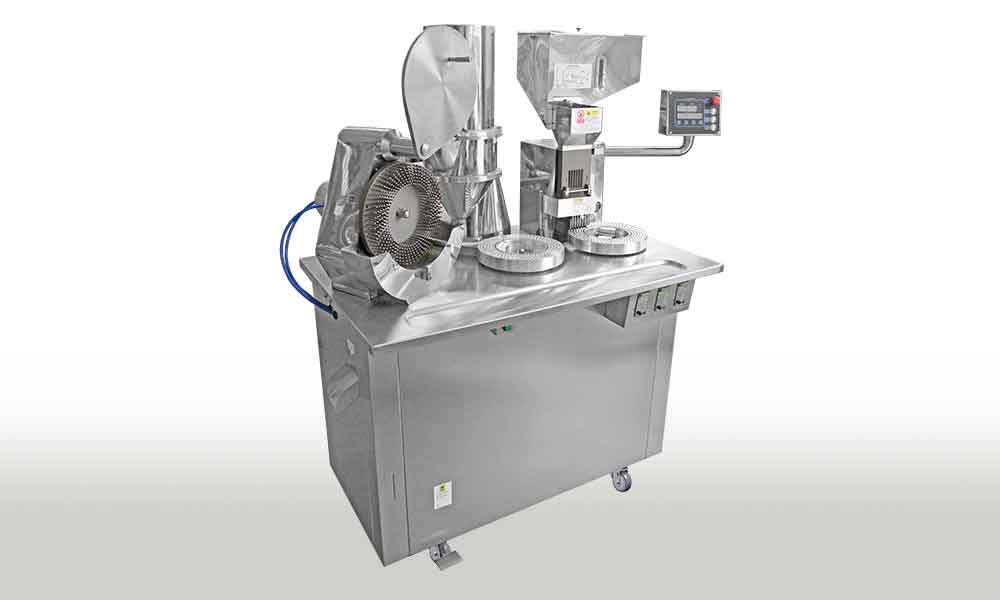

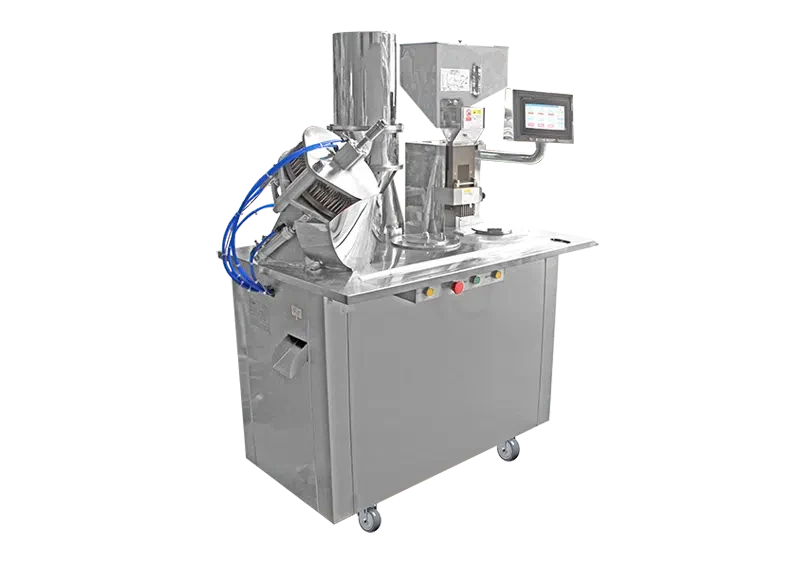

Semi-Automatic Capsule Filling Machine
Operator-assisted capsule filling with separate shell loading, filling and locking stages. Choose the plate tooling and dosing setup around your batch size and formulation.
- Operator assistedplates move between stages
- Change partscapsule-specific tooling
- Batch productionpowder / selected granules
A CLOSER LOOK
The stations your
operators work with.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

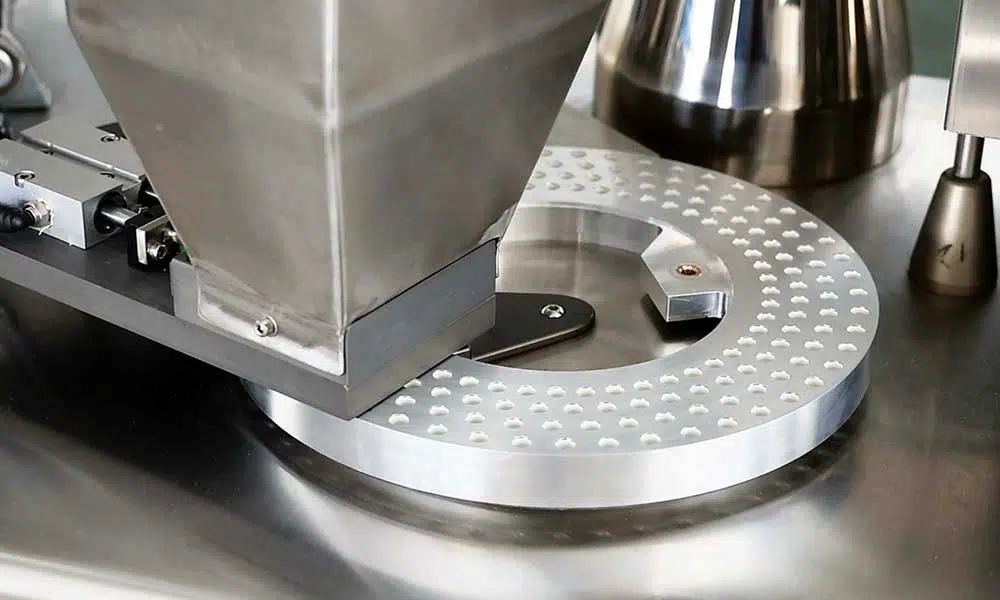

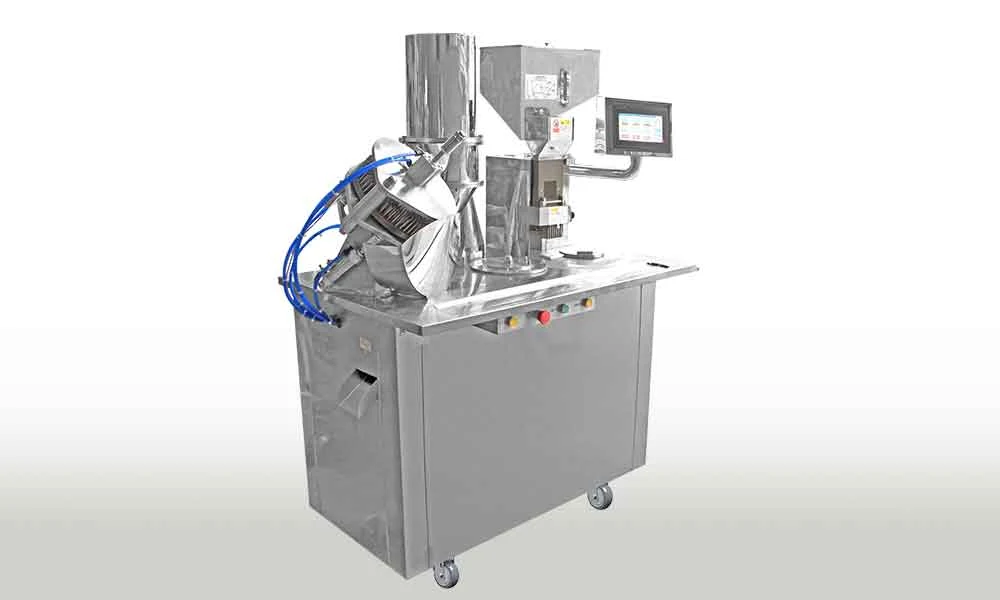

Filling station
Review fill-weight adjustment, material flow and the operator cycle.
Locking and handling
Plan plate transfers, capsule closing and the collection routine as part of operator training.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
A practical
operator-assisted cycle.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01

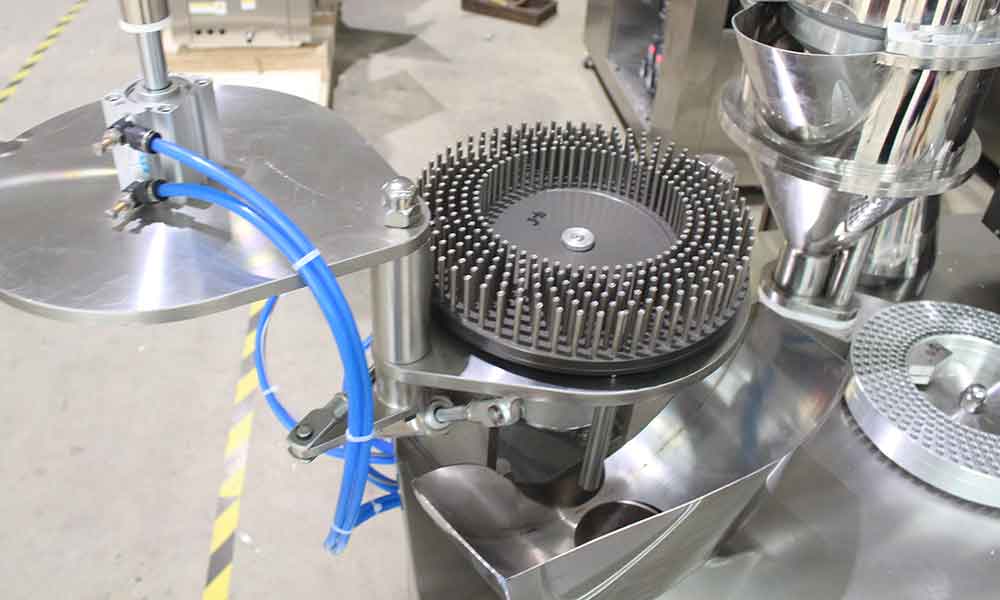

Load shells
Arrange and separate capsules in the plate tooling.
- 02
Set the fill
Adjust the dosing setup for your material and target weight.
- 03
Fill
Move the capsule bodies through the filling stage.
- 04
Lock
Bring the cap and body plates together to close the capsules.
- 05
Collect
Discharge the capsules and repeat the plate cycle.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
Semi-automatic capsule filling / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Capsule shell and plate size
- Powder flow, dose and any pellet-filling requirement
- Operator staffing, changeover and cleaning routine
| Model reference | Semi-automatic capsule filling |
|---|---|
| Capsule tooling | Confirm shell sizes and plate set in quotation |
| Vacuum and air | Confirm pump scope, air supply and connections |
| Productivity | 10000-25000 pcs/hour |
| Total power | 2.12kW |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
