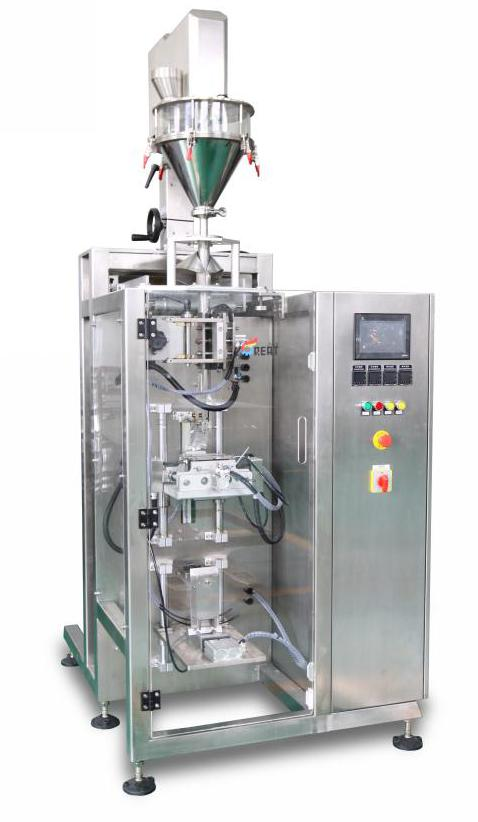

Compact bagging format
Review the forming and sealing arrangement against your bag dimensions.
Powder & Granule
Automatic Vertical Bag Packaging Machine
Form bags from rollstock, dose powder with an auger and seal the finished packs. Select the bag format and material handling together.
- Form–fill–sealrollstock bag making
- Auger fillingpowder dosing
- 2 model referencescompare bag formats
A CLOSER LOOK
Size the bag
and the dosing system.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

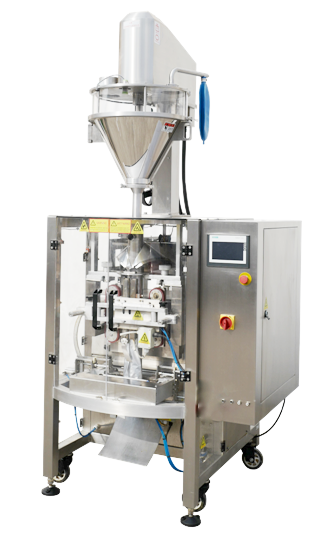

Larger bagging format
Compare package size, hopper capacity and installation height before selection.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
Rollstock in.
Filled bags out.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01
Unwind
Feed the selected rollstock and registration marks.
- 02
Form
Form the specified bag format.
- 03
Dose powder
Meter the powder with the selected auger.
- 04
Seal
Close the filled pack using the selected seal arrangement.
- 05
Cut & collect
Separate the finished packs for collection.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
PXG-QL vertical bag packaging / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Powder properties, fill weight and dosing trial goals
- Bag dimensions, film structure and print repeat
- Coding, material supply and pack collection
| Model range | PXG-QL-240L / PXG-QL-520L |
|---|---|
| US three-phase configuration | 220V, 3-phase, 60Hz; connected loads confirmed in quotation |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
COMPARE CONFIGURATIONS
Choose the size
for your process.
Compare catalogue model references. Confirm the selected model and demonstrated results for your product before ordering.
Scroll across to compare models →

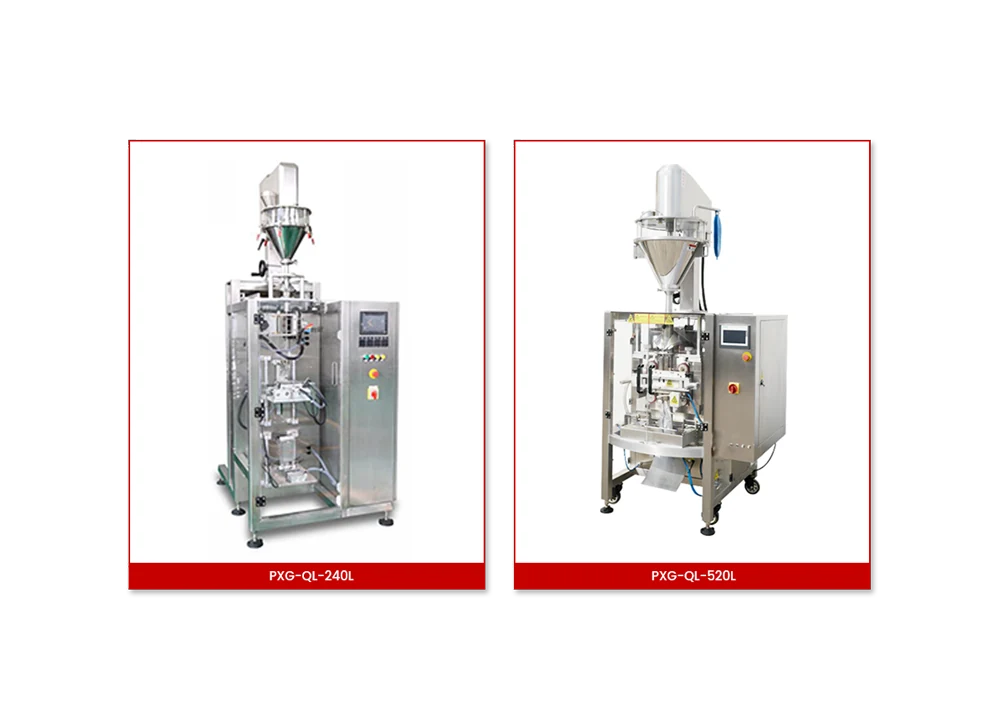

| Model | PXG-QL-240L | PXG-QL-520L |
|---|---|---|
| Dosing mode | Auger filler | Auger filler |
| Bag sizes | L: 50-200mm W: 20-70mm(3 or 4 seal) W: 40-110mm(pillow bag) | L:100-320mm W: 100-250mm |
| Packing speed | 25 Bags/min | 30 Bags/min |
| Total Power | 3.7kw | 4.4kw |
| Hopper volume | 25L | 50L |
Catalogue references · Capacity, output and operating settings depend on the selected format and product. Final parameters are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.
Explore related equipment, then review which items belong in your project scope with our team.
EQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 2.2 MB
