Powder & Granule

Vacuum Feeder

Transfer suitable powder to the selected receiving equipment using a vacuum-conveying arrangement.

  • Process supportmatch the connected machine
  • Selected capacityreview the actual application
  • Service accessplan setup and cleaning
Request a Quote Compare models ↓
Equipment overview

A CLOSER LOOK

Fit the equipment
to the process.

Review the equipment photographs alongside the application, access and changeover requirements for your process.

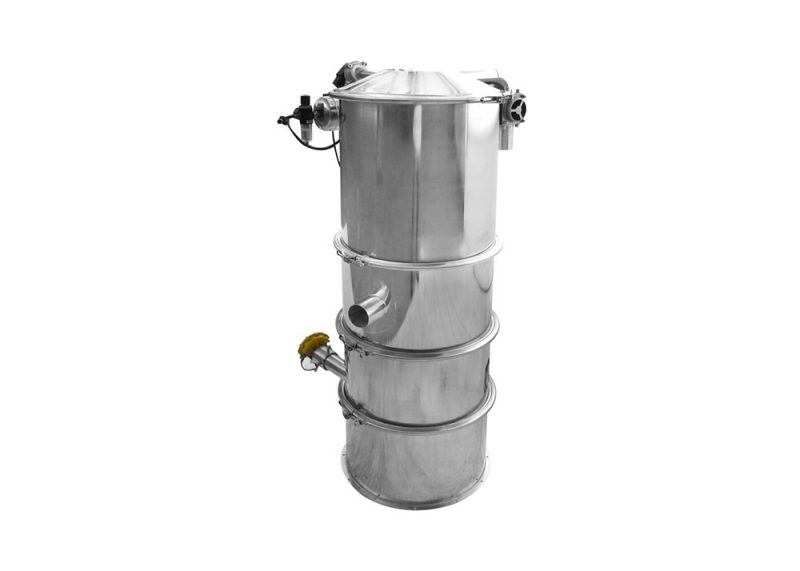

Receiver configuration
01 / MACHINE DETAILS

Receiver configuration

Review receiver size, filter access and the discharge connection.

Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.

HOW IT WORKS

A clear role
in your production flow.

Follow the main stages, then review the settings and acceptance criteria with our team using your own product.

  1. 01

    Pick up

    Collect powder from the selected pickup point.

  2. 02

    Convey

    Transfer material through the selected vacuum line.

  3. 03

    Separate

    Separate product from the air stream in the receiver.

  4. 04

    Discharge

    Supply the connected machine at the required rate.

Process overview · Actual equipment sequence and configuration are selected for your application.

CONFIGURATION & SELECTION

PXG vacuum feeder / CONFIGURATION REFERENCE

Know what you
are selecting.

Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.

Bring these details to the discussion
  • Connected equipment, inlet / outlet and available space
  • Material properties and required transfer / handling rate
  • Utilities, connections and cleaning requirements
Request a configured quote
PXG vacuum feeder configuration reference
Equipment referencePXG vacuum feeder
IntegrationConnections and accessories confirmed for the selected machine
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.

COMPARE CONFIGURATIONS

Choose the size
for your process.

Compare catalogue model references. Confirm the selected model and demonstrated results for your product before ordering.

Scroll across to compare models →

PXG vacuum feeder catalogue model comparison
ModelPXG-1PXG-2PXG-3PXG-4PXG-5PXG-6PXG-7PXG-10-6PXG-20-5
Feeding Volume400L/h600L/h1200L/h2000L/h3000L/h4000L/h6000L/h6000L/hFeeding distance 10m5000L/h Feeding distance 20m
Total power1.5kw2.2kw3kw4kw5.5kw5.5kw7.5kw7.5kw11kw
Air consumption8L/min8L/min10L/min12L/min12L/min12L/min17L/min34L/min68L/min
Pressure of air0.5-0.6Mpa0.5-0.6Mpa0.5-0.6Mpa0.5-0.6Mpa0.5-0.6Mpa0.5-0.6Mpa0.5-0.6Mpa0.5-0.6Mpa0.5-0.6Mpa

Catalogue references · Capacity, output and operating settings depend on the selected format and product. Final parameters are confirmed in your quotation.

SUPPORT THROUGH PRODUCTION

The equipment is
only the beginning.

Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.

Select & plan

Review the application, equipment scope, FAT and delivery plan before the machine ships.

Discuss your project

Install & start up

Arrange installation assistance, commissioning, operator training and production coaching.

Explore startup support

Keep production moving

Talk with our San Diego team about maintenance, troubleshooting, parts and repair.

Ask for technical support

EQUIPMENT FINANCING

Plan the machine.
Explore the payment options.

Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.

Financing is subject to approval and program availability.

Discuss financing options Explore equipment financing

Catalogue specification

Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.

Download catalogue spec sheet (PDF) · 1.9 MB
