ENCAP NORTH AMERICA
Packaging Equipment
Encap North America — Packaging | Servicing | Equipment

Powder & Granule

Multi Lane Powder Packing Machines

Form, dose and seal powder stick packs in multiple lanes. Match the auger dosing, package dimensions and film to the powder you plan to run.

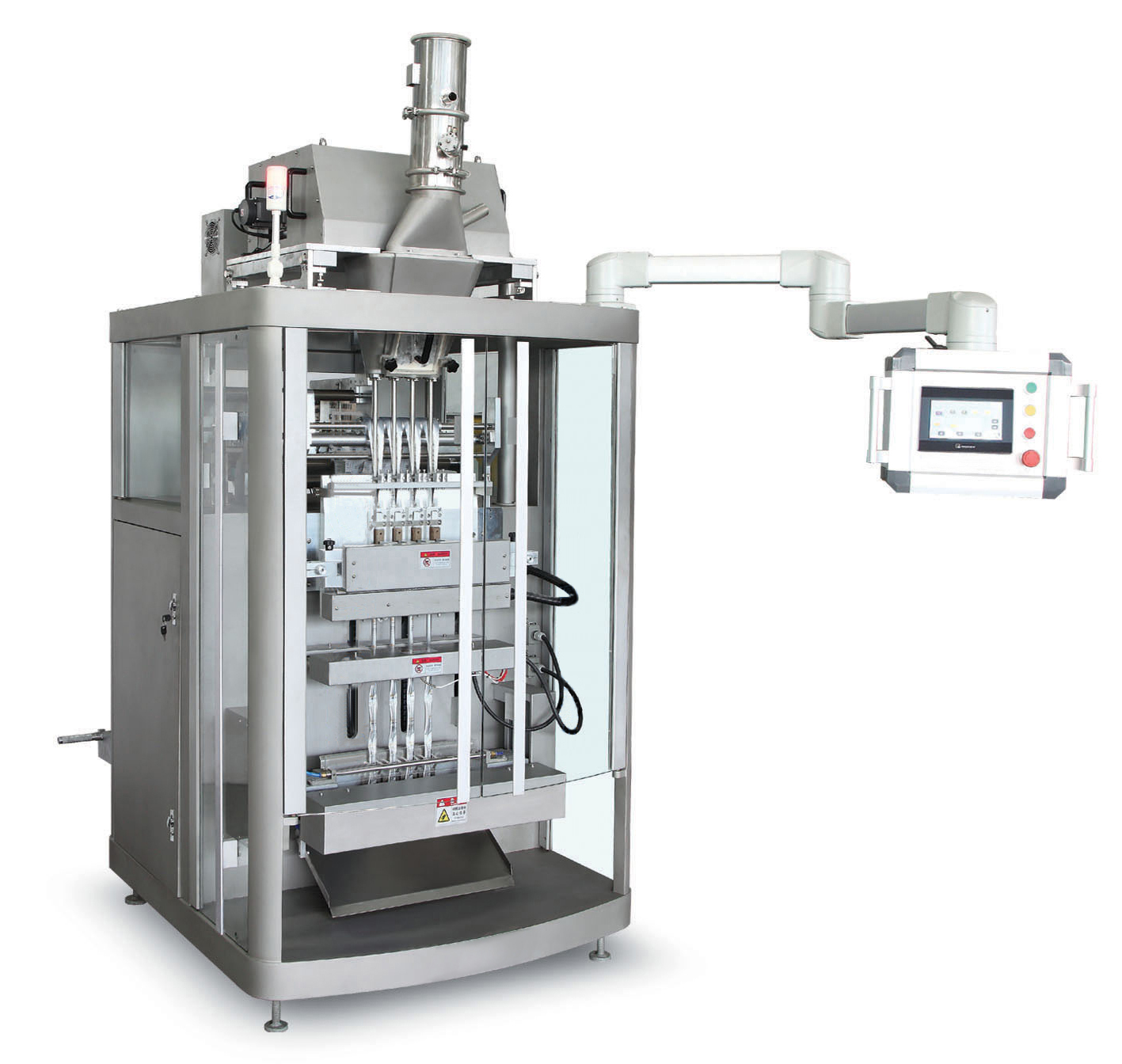

Shown: GBK-BF-680. The gallery also shows GBK-BF-480 and GBK-BF-880. The technical table is the separate GBK-BF350 reference; request the specifications for your selected model.

  • 3 models480 / 680 / 880 photographed
  • Powderdosing selected for the formulation
  • U.S. setupmodel-specific utilities
Request a Quote Watch videoBrowse this category
GBK-BF-680 · equipment overview

SEE THE EQUIPMENT AT WORK

Watch the process.

See a related multilane powder packaging application on the GBK-BF680. Discuss the stick format and lane layout you need with our team.

Discuss your material and trial goals

Plays here · Connects to YouTube

ENCAP NORTH AMERICA / YOUTUBE

Multilane powder sachet packaging — GBK-BF680

Related powder packaging example: GBK-BF680 sachets. This is a different model from GBK-BF350; confirm stick format, lane layout and machine selection for your application.

Open on YouTube
Open the demonstration page

A CLOSER LOOK

From rollstock
to a finished stick pack.

Dosing and film control need to work together. Review the powder, film structure and package format before fixing the lane layout.

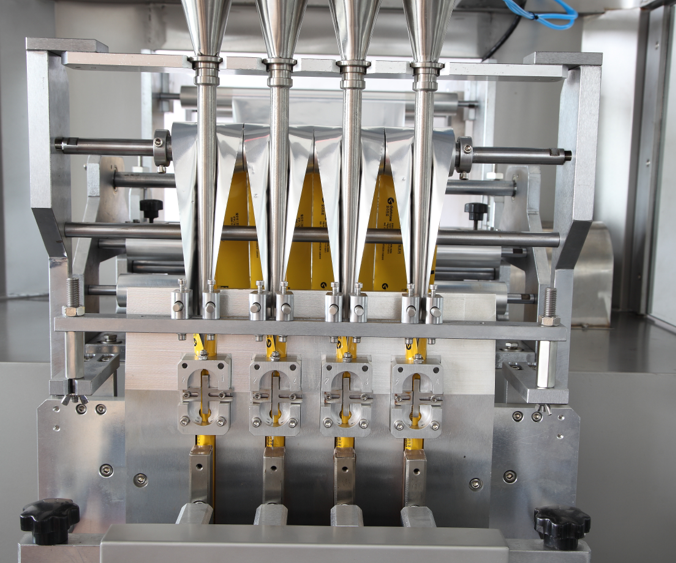

GBK series · multi-lane forming and filling area
01 / MACHINE DETAILS

Multi-lane forming and filling

See the parallel film paths and the forming/filling area in the supplied equipment photographs. Review the dosing setup, powder behavior and lane layout for the model you select.

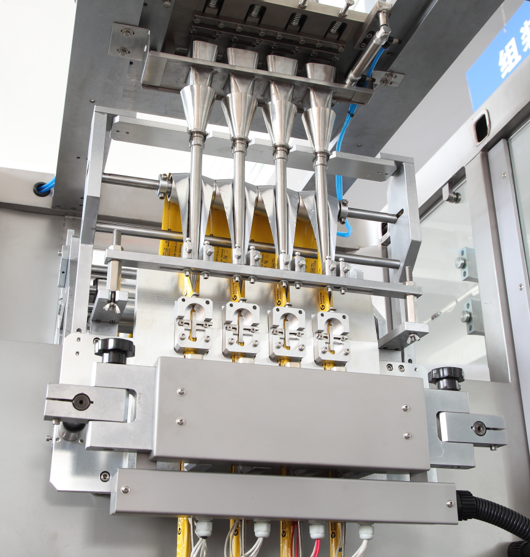

GBK series · filling and sealing-area detail
02 / MACHINE DETAILS

Filling and sealing-area access

Inspect access around the filling tubes, film guides and sealing area. Discuss change parts, cleaning access and package dimensions using your actual film and formulation.

GBK series equipment photographs supplied by Encap. Components and appearance vary by selected configuration.

HOW IT WORKS

One roll.
Several coordinated lanes.

A simplified form–fill–seal sequence. Actual lane count, dosing setup and output depend on your material and stick format.

  1. 01

    Unwind & register

    Feed the rollstock and track the printed registration mark.

  2. 02

    Slit & form

    Divide the film and form the selected lanes.

  3. 03

    Dose the powder

    Meter the fill with the auger system.

  4. 04

    Seal

    Make the longitudinal and transverse seals.

  5. 05

    Code & cut

    Add the selected code and separate the finished packs.

Process overview · Actual equipment sequence and configuration are selected for your application.

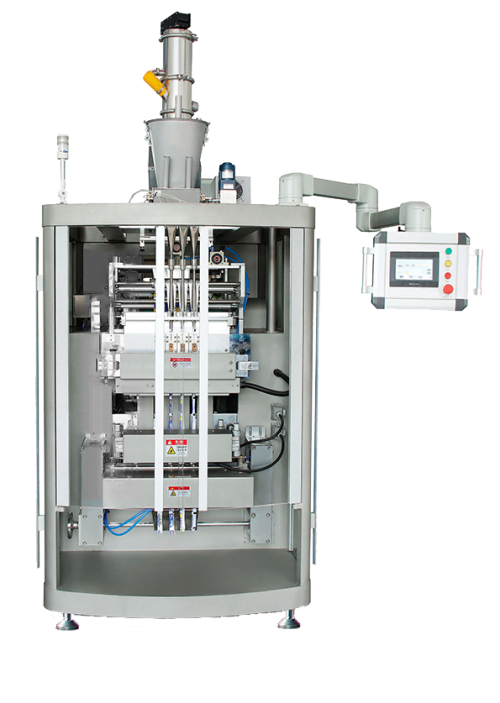

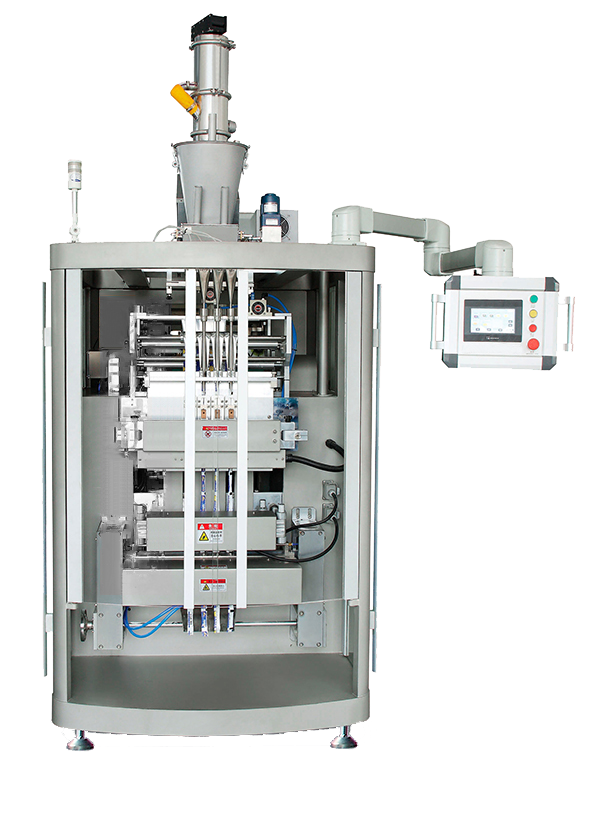

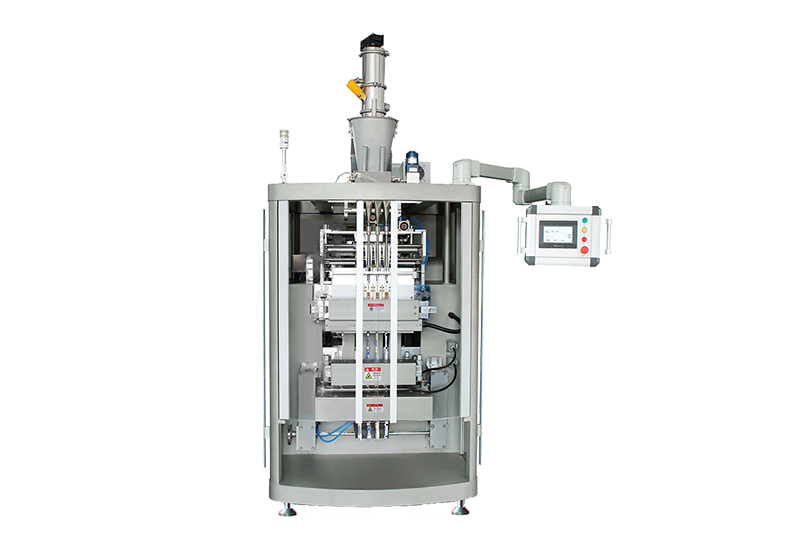

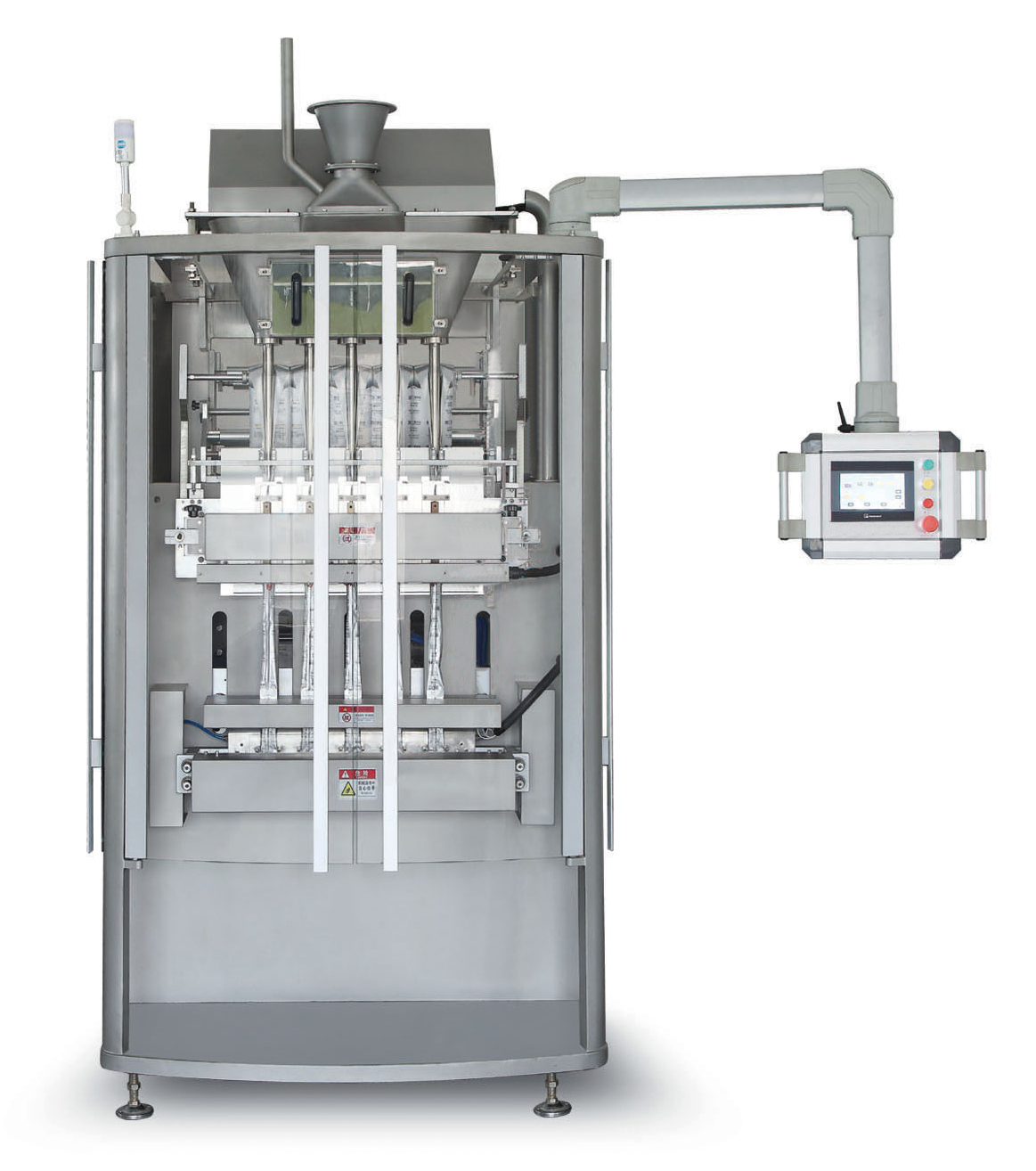

PHOTOGRAPHED CONFIGURATIONS

See the GBK range.

Review the configuration that fits your powder and film. These photographs are not to scale; lane count, dimensions, speed and utilities are confirmed for the selected machine.

CONFIGURATION & SELECTION

GBK-BF350 / CONFIGURATION REFERENCE

Know what you
are selecting.

These parameters describe the GBK-BF350 quotation reference. Confirm the lane count, film, tooling and demonstrated output for your own powder and package dimensions.

Bring these details to the discussion
  • Powder flow, bulk density and target fill weight
  • Stick dimensions, film structure and print repeat
  • Lane count, coding and downstream collection needs
Request a configured quote
GBK-BF350 configuration reference
Model referenceGBK-BF350
Lane configuration2–4 lanes
Quoted speed30–40 packs/min/lane; material dependent
Quoted fill range4–10g/pack; material dependent
Pack dimensionsLength 40–160mm; fixed tooling width selected within 20–60mm
Maximum film width350mm
Seal formatBack-seal stick pack
US power supply220V, 3-phase, 60Hz
Quoted connected power8kW
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
Explore Stick Pack Packaging

SUPPORT THROUGH PRODUCTION

The equipment is
only the beginning.

Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.

Select & plan

Review the application, equipment scope, FAT and delivery plan before the machine ships.

Discuss your project

Install & start up

Arrange installation assistance, commissioning, operator training and production coaching.

Explore startup support

Keep production moving

Talk with our San Diego team about maintenance, troubleshooting, parts and repair.

Ask for technical support

EQUIPMENT FINANCING

Plan the machine.
Explore the payment options.

Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.

Financing is subject to approval and program availability.

Discuss financing options Explore equipment financing

Catalogue specification

Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.

Download catalogue spec sheet (PDF) · 3.6 MB
Multi Lane Powder Packing Machines
