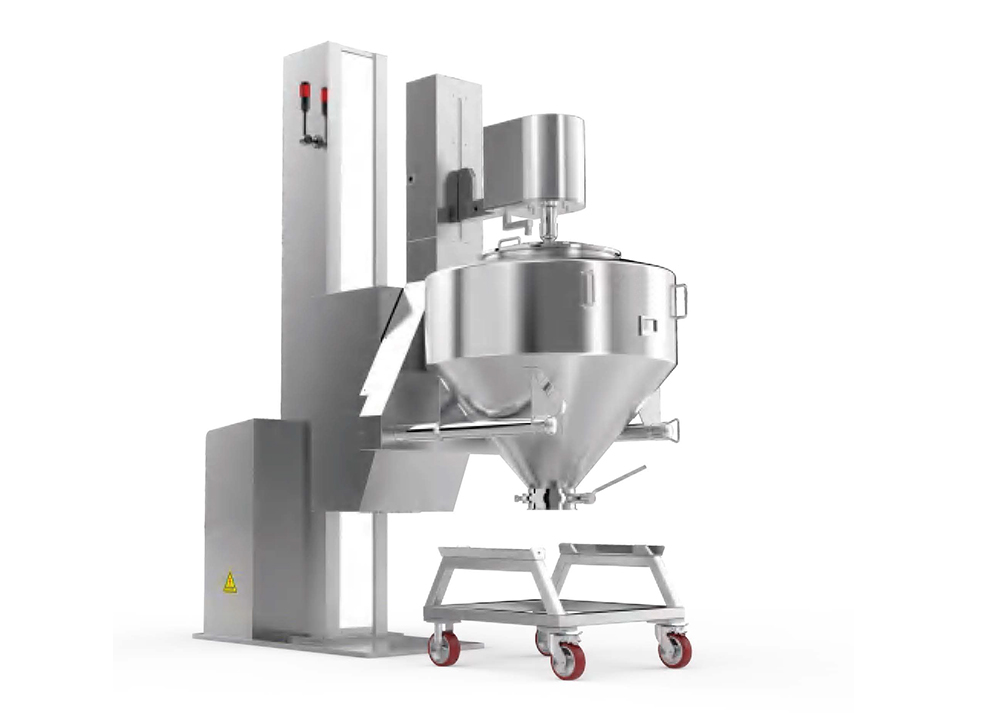

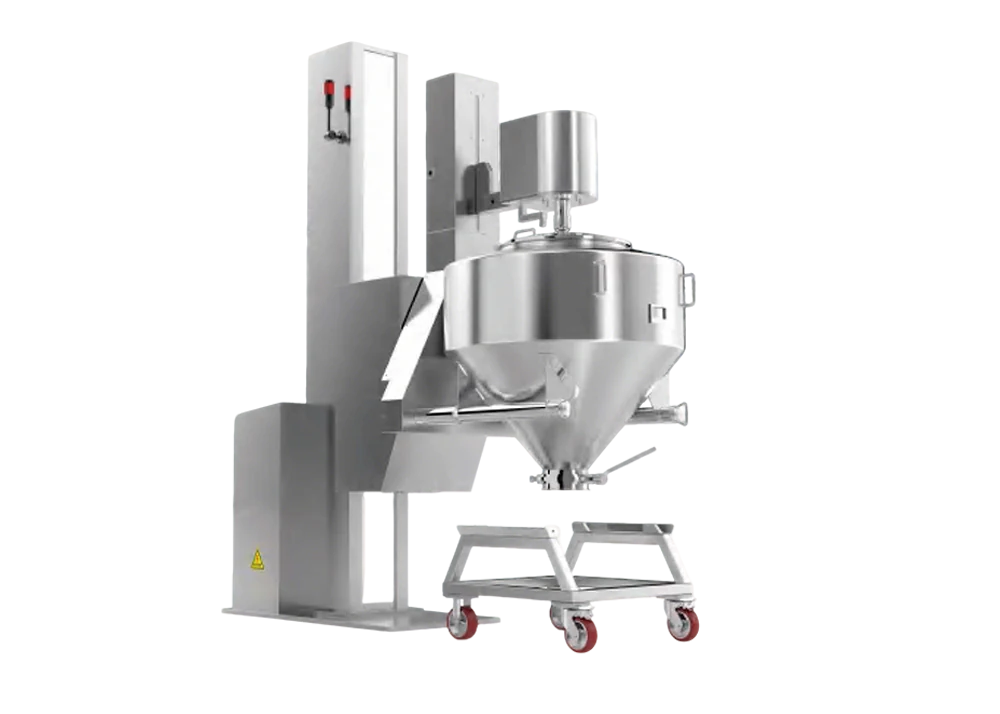

Single Column Lifting Bin Blender
(HLT Series-Customized Bohle Type)
Single Column Lifting Bin Blender
You are here:
Focus on the intensive mixing capability and optional mixing chopper for specialized formulations.
Used for specialized pharmaceutical formulations requiring intensive mixing. Best for difficult-to-mix components or formulas that require high-shear choppers to break down agglomerates.
ATTRIBUTES
- Customization:
This version is customized to the Bohle type structure based on specific user requirements. - Bin Design:
It can be equipped with customized round mixing bins instead of the standard square cone shape.
Key Features & Benefits
Enhanced Mixing Precision:
It can be equipped with an optional mixing chopper and baffle plates to generate dynamic material movement, ensuring rapid homogeneity even for difficult-to-mix components..
Optimized Sanitary Design:
The blending bin features a crevice-free design with no dead zones and easy-to-clean surfaces, making it ideal for the strictest pharmaceutical cGMP environments.
TECHNICAL PARAMETERS
| HLT Series-Customized Bohle Type | |
|---|---|
| Specification | Details |
| Bin Volume Range | 100 L – 3000 L |
| Max Loading Weight | Up to 1500 kg |
| Fill Coefficient | 0.3-0.8 |
| Total Power | Up to 11 kW |
Product references: HLT-100 / HLT-200 / HLT-300 / HLT-400 / HLT-600 / HLT-800 / HLT-1000 / HLT-1200 / HLT-1500 / HLT-2000 / HLT-3000 MODELS
