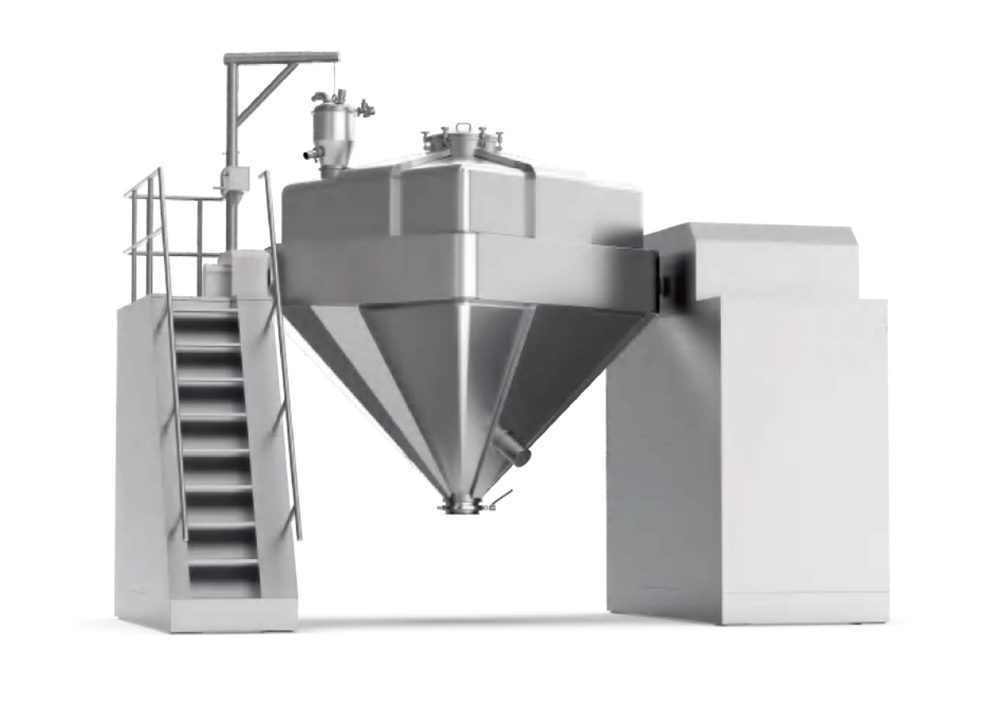

Square Cone Bin Blender
(HF Series)
Square Cone Bin Blender
You are here:
Focus on the fixed-bin structural stability and 80% loading coefficient for massive single-variety industrial batches.
Large-scale production in the food, dairy, and chemical reagent industries. Best for mixing single-variety products in massive batches (up to 10,000L) where equipment stability is a priority.
ATTRIBUTES
- High-Efficiency Homogeneity: The asymmetrical square-cone geometry generates complex multi-dimensional tumbling pathways, completely preventing material segregation and dead spots.
- Closed-System Contamination Control: Completely sealed processing isolates dust emissions, guaranteeing an airtight environment that meets strict regulatory cross-contamination requirements.
- Streamlined Process Integration: Engineered to facilitate seamless charging and discharging, optimizing product yield and reducing changeover times.
Key Features & Benefits
Bin Volume Range:
Ranges from 300 L to 15,000 L.
Maximum Load Capacity:
Supports up to 7500 kg for large-scale production requirements.
Compliance Standard:
Fully compliant with cGMP guidelines for sanitary, residue-free batch cleaning.
TECHNICAL PARAMETERS
| HF Series | |
|---|---|
| Specification | Details |
| Bin Volume Range | 300 L – 15000 L |
| Max Loading Weight | Up to 7500 kg |
| Total Power | 2.2 - 30 kW |
Product references: HF-300 / HF-600 / HF-800 / HF-1000 / HF-1200 / HF-1500 / HF-2000 / HF-3000 / HF-4000 / HF-6000 / HF-8000 / HF-10000 / HF-12000 / HF-15000 MODELS
