Conveyor and hopper
Match the screw, hopper and discharge height to the powder and receiving machine.
Powder & Granule

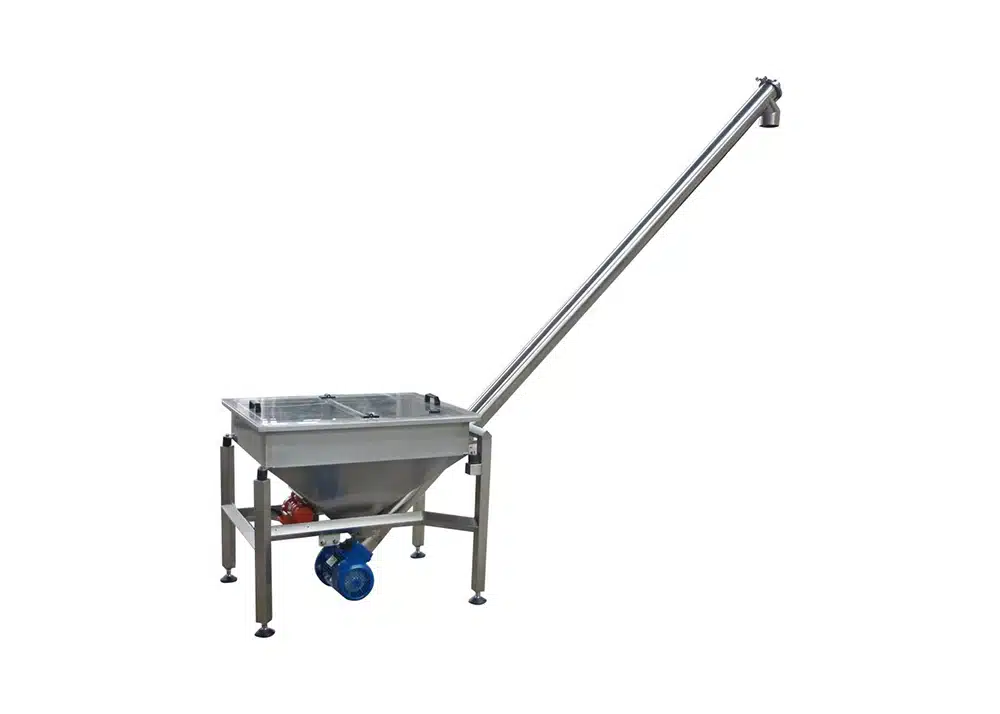

Vibrating Hopper Inclined Screw Conveyor
Feed powder from a hopper to a higher inlet using the selected screw and inclined tube.
- Process supportmatch the connected machine
- Selected capacityreview the actual application
- Service accessplan setup and cleaning
A CLOSER LOOK
Fit the equipment
to the process.
Review the equipment photographs alongside the application, access and changeover requirements for your process.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
A clear role
in your production flow.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01
Load
Supply powder to the hopper.
- 02
Move material
Advance the material with the selected screw.
- 03
Raise
Convey along the inclined tube.
- 04
Discharge
Supply the connected machine.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
PXG-S2 screw conveyor / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Connected equipment, inlet / outlet and available space
- Material properties and required transfer / handling rate
- Utilities, connections and cleaning requirements
| Equipment reference | PXG-S2 screw conveyor |
|---|---|
| Integration | Connections and accessories confirmed for the selected machine |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
COMPARE CONFIGURATIONS
Choose the size
for your process.
Compare catalogue model references. Confirm the selected model and demonstrated results for your product before ordering.
Scroll across to compare models →
| Model | PXG-S2-1K | PXG-S2-2K | PXG-S2-3K | PXG-S2-5K | PXG-S2-7K | PXG-S2-8K | PXG-S2-12K |
|---|---|---|---|---|---|---|---|
| Charging capacity | 2m3/h | 2m3/h | 3m3/h | 5m3/h | 7m3/h | 8m3/h | 12m3/h |
| Total power | 0.58KW | 0.58KW | 0.78KW | 1.53KW | 2.23KW | 2.23KW | 3.03KW |
| Hopper volume | 100L | 100L | 200L | 200L | 200L | 200L | 200L |
Catalogue references · Capacity, output and operating settings depend on the selected format and product. Final parameters are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.
Explore related equipment, then review which items belong in your project scope with our team.
EQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 2.2 MB
