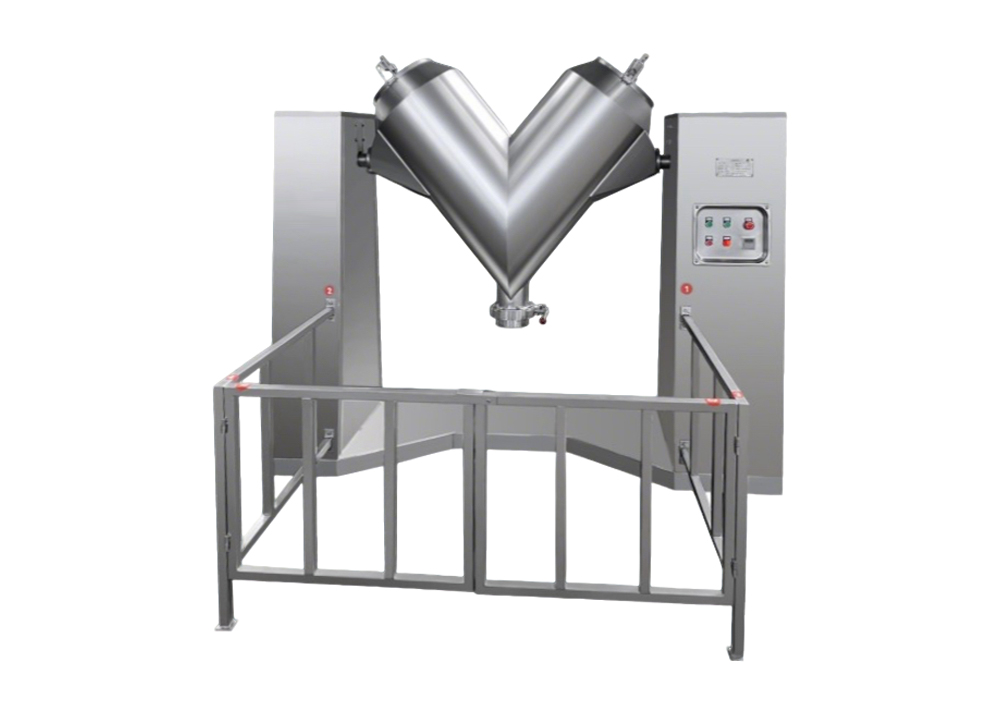

V-Type Blender (V Series)
You are here:
The stainless steel polished finish meets strict GMP standards for pharmaceutical and food industries.
Traditional dry powder and granule mixing in pharmaceutical, chemical, and food industries. Used for mixing two or more types of dry materials where a symmetrical, dead-corner-free tumble mixing principle is required.
ATTRIBUTES
- High Mixing Uniformity: The unique symmetrical structure ensures materials are constantly divided and recombined, achieving high efficiency with no dead corners.
- Hygienic Surface Finish: The polished stainless steel walls provide an attractive appearance while meeting strict cleaning standards for pharmaceutical and food industries.
- Strong Adaptability: The machine has a wide range of applications across various industries and can be customized to handle difficult materials like wet or clumpy powders.
Key Features & Benefits
Material Standards:
Constructed entirely of stainless steel with polished inner and outer walls.
Applicable Materials:
Suitable for mixing two or more types of dry powders and granules.
Configuration:
Features a unique “V” shaped mixing drum structure designed for high efficiency.
Optional Equipment:
Can be equipped with a forced agitator to handle fine powders, block materials, or materials with certain moisture content.
TECHNICAL PARAMETERS
| V Series | |
|---|---|
| Specification | Details |
| Capacity | 72 – 2400 kg |
| Fully Voume | 0.18 - 6.0 m3 |
| Stirring Speed | 12 - 10 r/min |
| Motor Speed | 1.1 - 18.5 kW |
| Rotating Height | 1580 - 5300 mm |
Product references: V-180 / V-300 / V-500 / V-1000 / V-1500 / V-2000 / V-2500 / V-3000 / V-4000 / V-5000 / V-6000 MODELS
