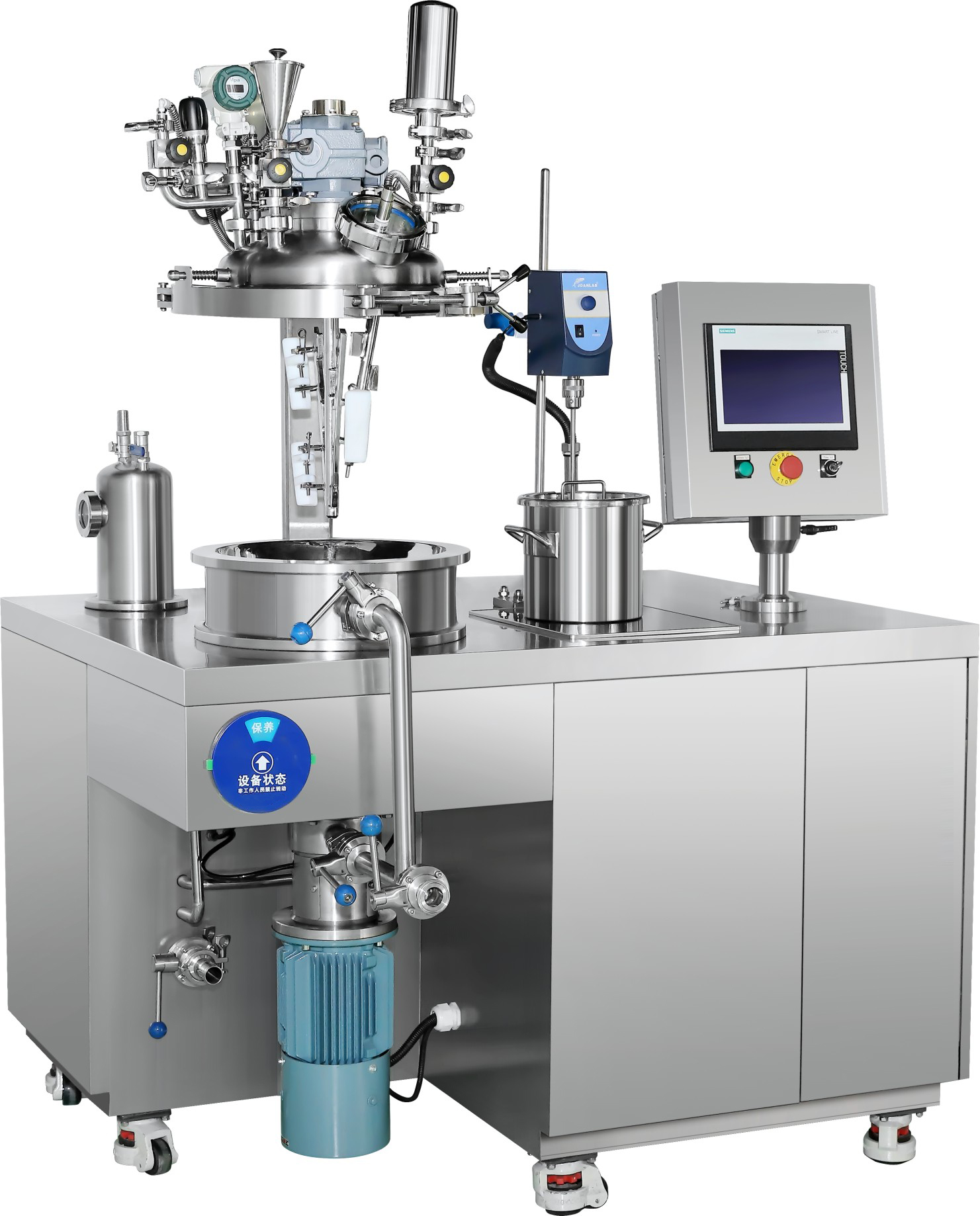

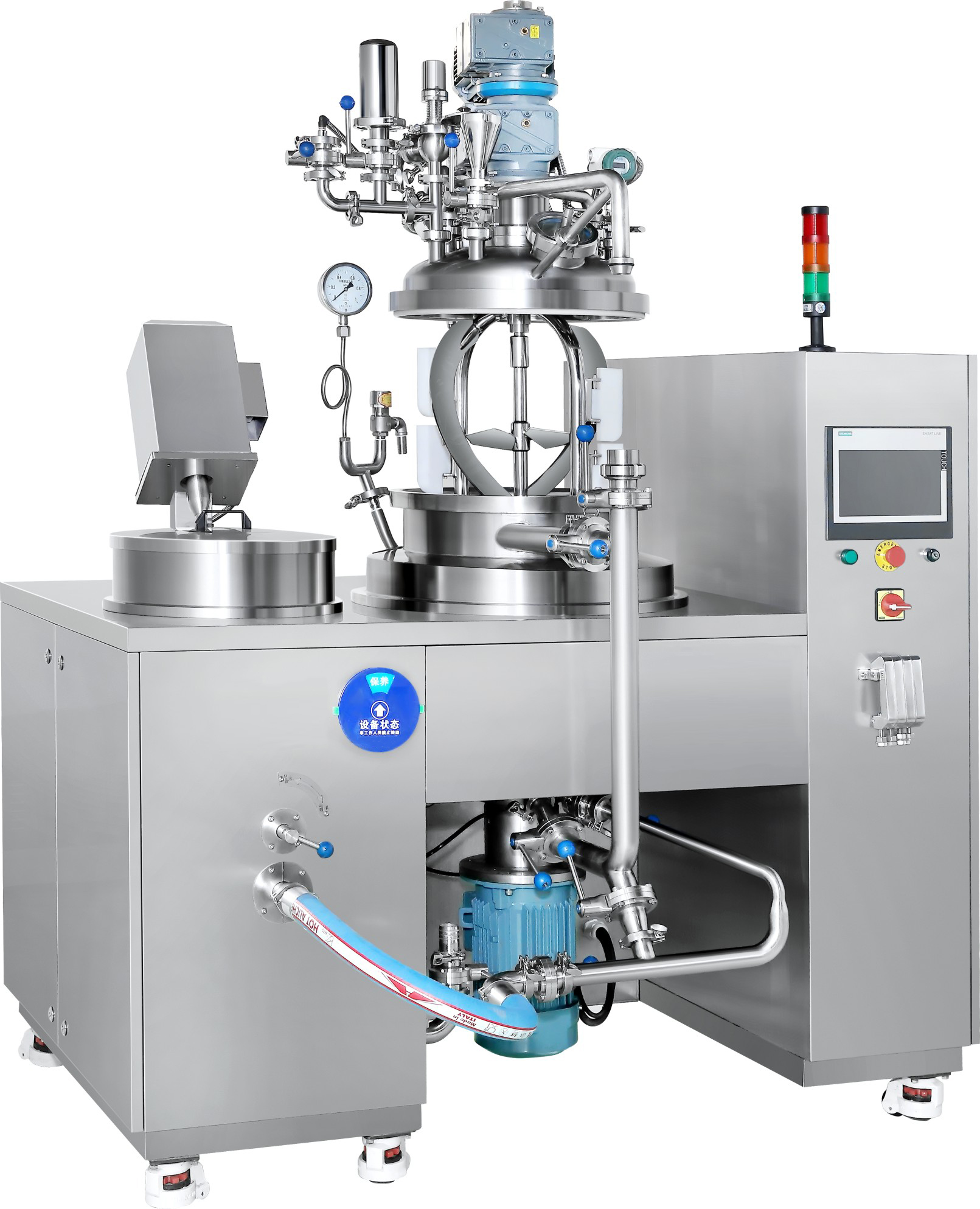

Desktop vacuum homogenizer
You are here:
Featuring a traditional desktop design, the Desktop Vacuum Homogenizer is an essential tool for laboratory applications, including dispersion, mixing, emulsification, homogenization, and dissolution processes. Ideal for formulating sample cream products, this device ensures precision and consistency in your lab experiments.
ATTRIBUTES
- The homogenizer is designed to be positioned at the base of the container, facilitating comprehensive homogenization through both internal and external circulation. This ensures that paste particles are finely controlled to below 5 microns, resulting in a smoother, more refined product. Additionally, the external circulation system functions as an effective discharge pump.
- Enhanced homogenization efficiency—up to 30%—is achieved through multi-layer shearing, allowing for a tight particle size distribution comparable to that of a centrifugal pump impeller.
- Equipped with a CIP (Clean-In-Place) cleaning function, this homogenizer significantly reduces cleaning times, boosts cleaning effectiveness, and conserves water usage.
- Furthermore, the homogenizer features memory storage capabilities for streamlined operation and consistency.
TECHNICAL PARAMETERS
| CF-Q 7500B/C/E | ||||
|---|---|---|---|---|
| Model | SME-DE10 | SME-DE20 | SME-DE30 | SME-DE50 |
| Capacity | 10L | 20L | 30L | 50L |
| Homogenizer motor (KW) | 2.2 | 2.2 | 4 | 4 |
| Homogenizer motor (r/min) | 6000 | 6000 | 4500 | 4500 |
| Stir motor (KW) | 0.55 | 0.75 | 1.1 | 1.7 |
| Stir motor (r/min) | 0-93 | 0-93 | 0-83 | 0-83 |
| Dimension | 1300x1000x 1400/1900mm | 1200x1200x 1500/2000mm | 1400x1400x 1500/2000mm | 1600x1100x 1900/2400mm |
| Total power | 10KW | 10KW | 10KW | 10KW |
| Limit vacuum | -0.097 | -0.097 | -0.097 | -0.097 |
| CF-Q 7500B/C/E | ||
|---|---|---|
| Model | SME-DE10 | SME-DE20 |
| Capacity | 10L | 20L |
| Homogenizer motor (KW) | 2.2 | 2.2 |
| Homogenizer motor (r/min) | 6000 | 6000 |
| Stir motor (KW) | 0.55 | 0.75 |
| Stir motor (r/min) | 0-93 | 0-93 |
| Dimension | 1300x1000x 1400/1900mm | 1200x1200x 1500/2000mm |
| Total power | 10KW | 10KW |
| Limit vacuum | -0.097 | -0.097 |
| CF-Q 7500B/C/E | ||
|---|---|---|
| Model | SME-DE30 | SME-DE50 |
| Capacity | 30L | 50L |
| Homogenizer motor (KW) | 4 | 4 |
| Homogenizer motor (r/min) | 4500 | 4500 |
| Stir motor (KW) | 1.1 | 1.7 |
| Stir motor (r/min) | 0-83 | 0-83 |
| Dimension | 1400x1400x 1500/2000mm | 1600x1100x 1900/2400mm |
| Total power | 10KW | 10KW |
| Limit vacuum | -0.097 | -0.097 |

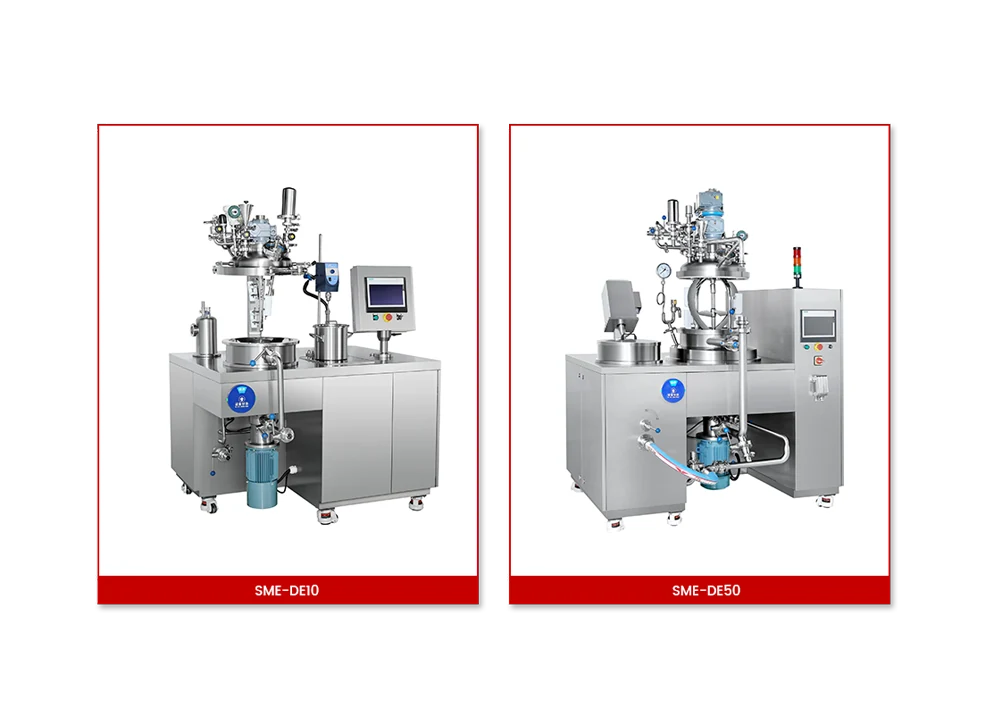

Product references: SME-DE10 / SME-DE20 / SME-DE30 / SME-DE50 MODELS
