Vessel configuration
Fixed-vessel homogenizing. Review the selected agitator, access and discharge arrangement.
Vacuum Emulsification

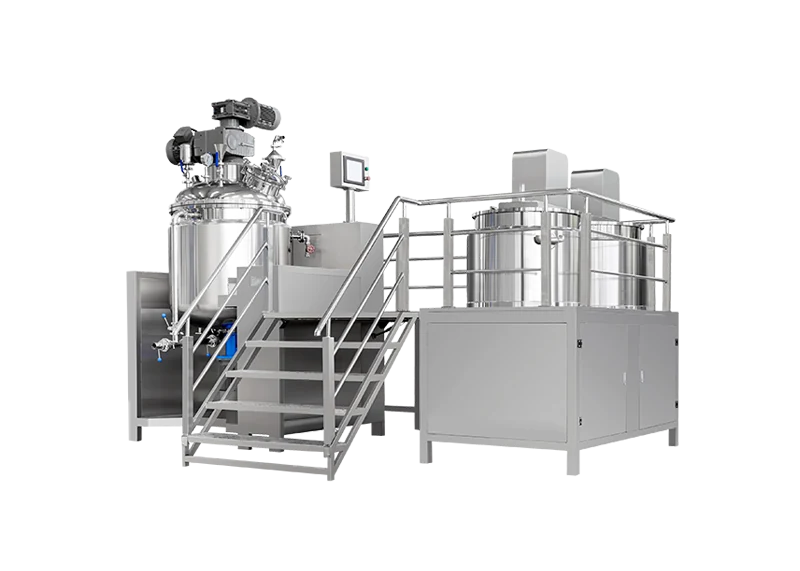

Fixed Type Homogenizing Emulsifier
Mix and homogenize your liquid or cream formulation in a vessel selected for the batch and process. Review viscosity, temperature control and the preparation-to-discharge workflow.
- Batch processselect vessel and working fill
- Mix & homogenizematch viscosity and formulation
- Thermal controlheating / cooling scope reviewed
A CLOSER LOOK
Match the vessel
to the formulation.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

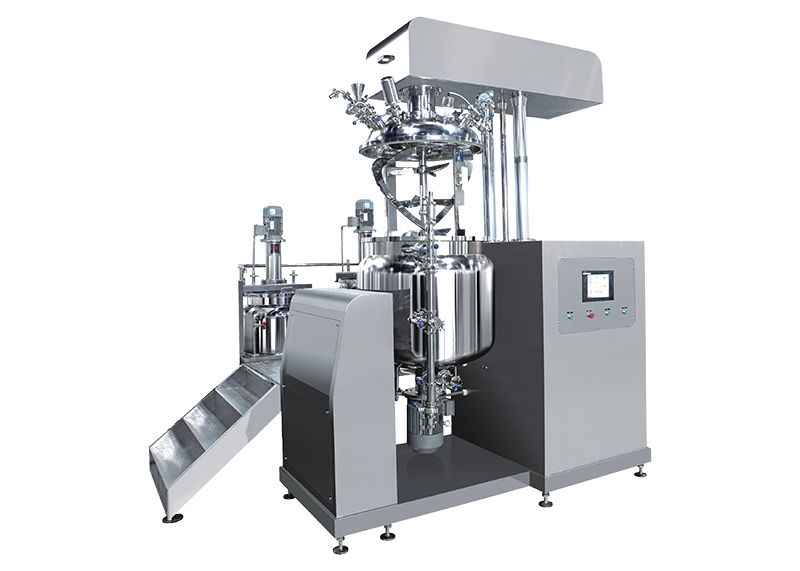

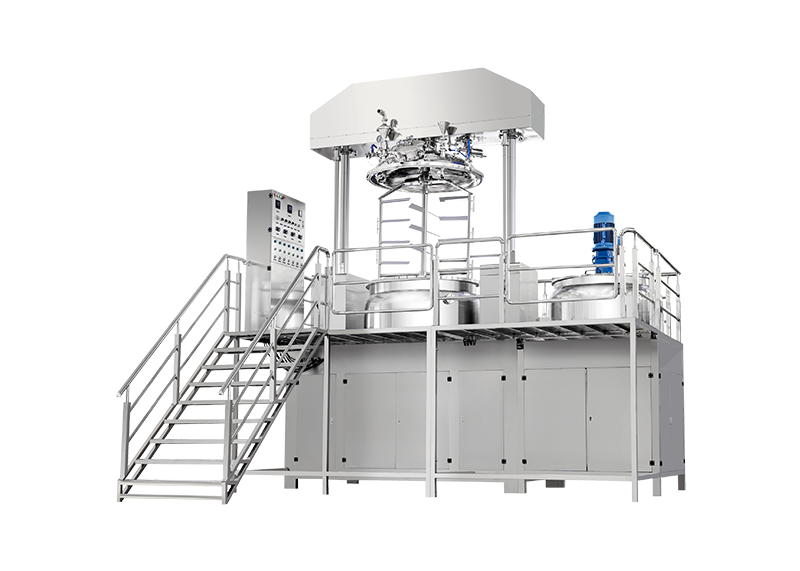

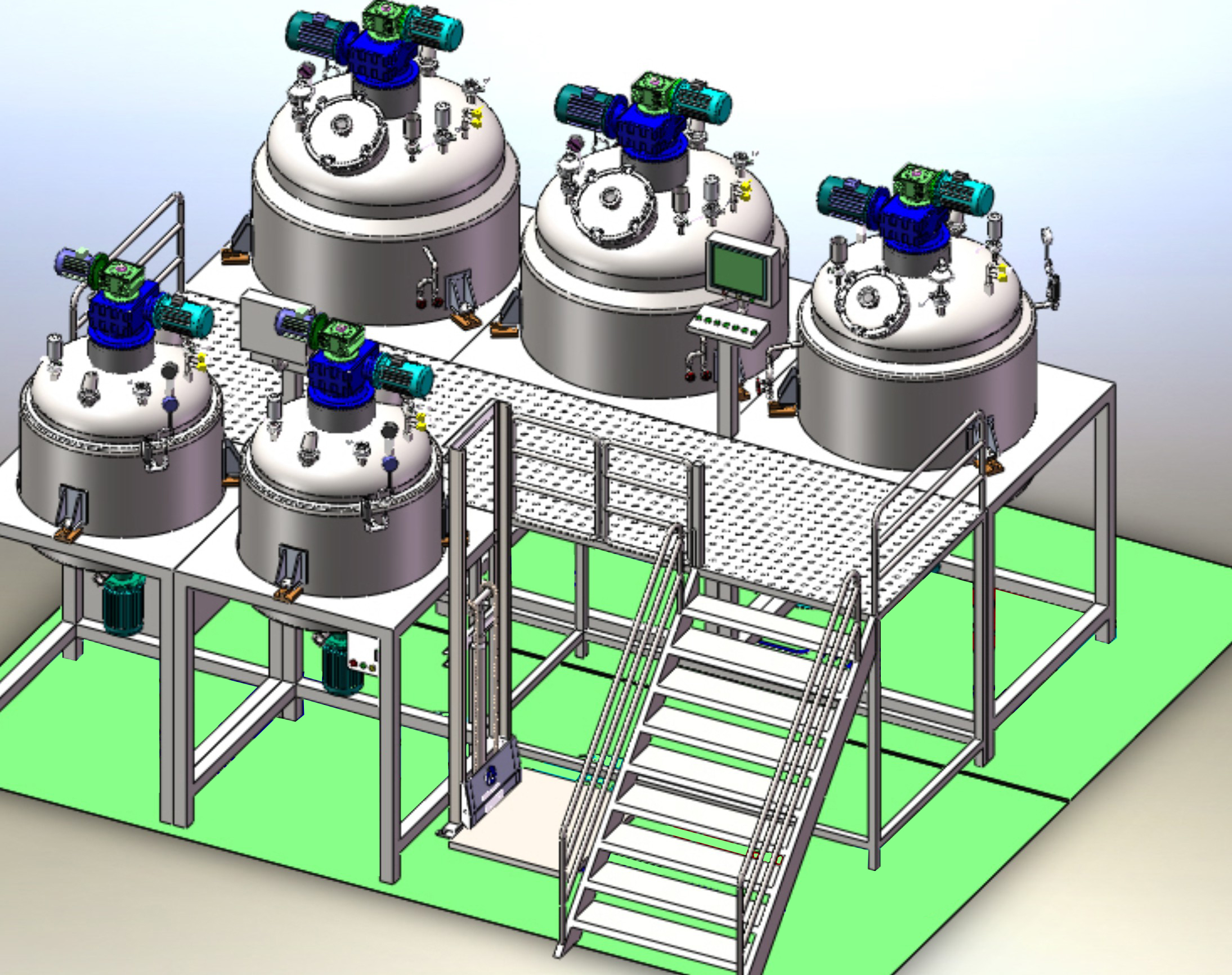

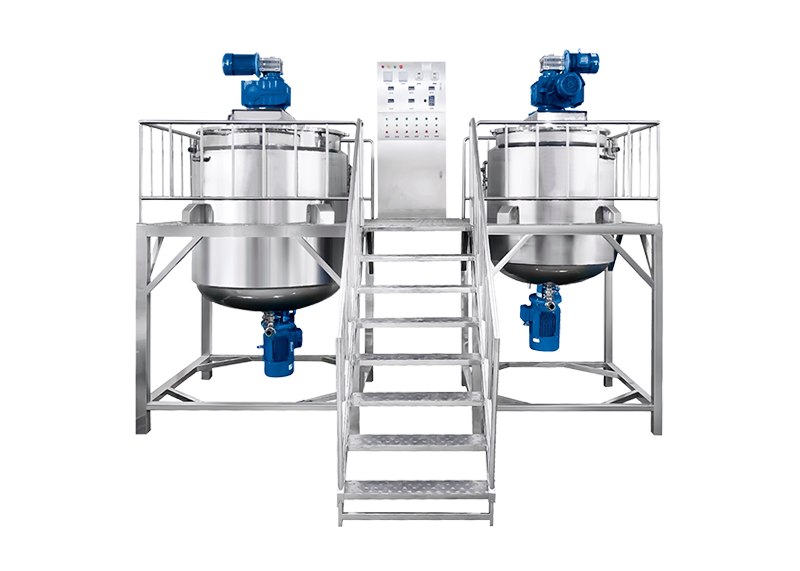

Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
From ingredients
to a prepared batch.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01
Charge
Introduce ingredients in your required process sequence.
- 02
Condition
Apply the specified heating or cooling conditions.
- 03
Mix & homogenize
Use the selected stirring and homogenizing arrangement.
- 04
Check the batch
Review consistency and the endpoint under your process criteria.
- 05
Discharge
Transfer the batch to the next processing or filling step.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
SME-B Series / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Formulation viscosity, ingredients and process temperature
- Batch working volume and homogenizing requirements
- Heating / cooling utilities, discharge method and room height
| Series reference | SME-B Series |
|---|---|
| Configuration | Fixed-vessel homogenizing |
| Heating / cooling | Review vessel jacket and selected utility arrangement |
| US three-phase configuration | 220V, 3-phase, 60Hz; connected loads confirmed in quotation |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
COMPARE CONFIGURATIONS
Choose the size
for your process.
Compare catalogue model references. Confirm the selected model and demonstrated results for your product before ordering.
Scroll across to compare models →
| Model | SME-B200 | SME-B500 | SME-B1000 | SME-B2000 |
|---|---|---|---|---|
| Capacity | 200L | 500L | 1000L | 2000L |
| Homogenizer motor (KW) | 6.5-8 | 6.5-8 | 9-11 | 11-14 |
| Homogenizer motor (r/min) | 1440/2880 | 1440/2880 | 1440/2880 | 1440/2880 |
| Stir motor (KW) | 2.2 | 4 | 5.5 | 5.5 |
| Stir motor (r/min) | 0-63 | 0-63 | 0-63 | 0-63 |
Catalogue references · Capacity, output and operating settings depend on the selected format and product. Final parameters are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.
Explore related equipment, then review which items belong in your project scope with our team.

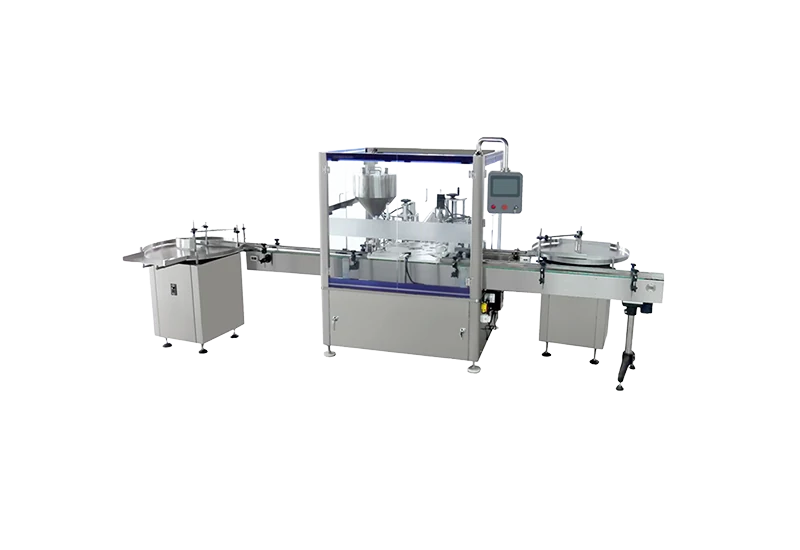

Automatic Liquid and Cream Filling Capping MachineAutomatic Liquid and Cream Filling Capping Machine
Explore equipment

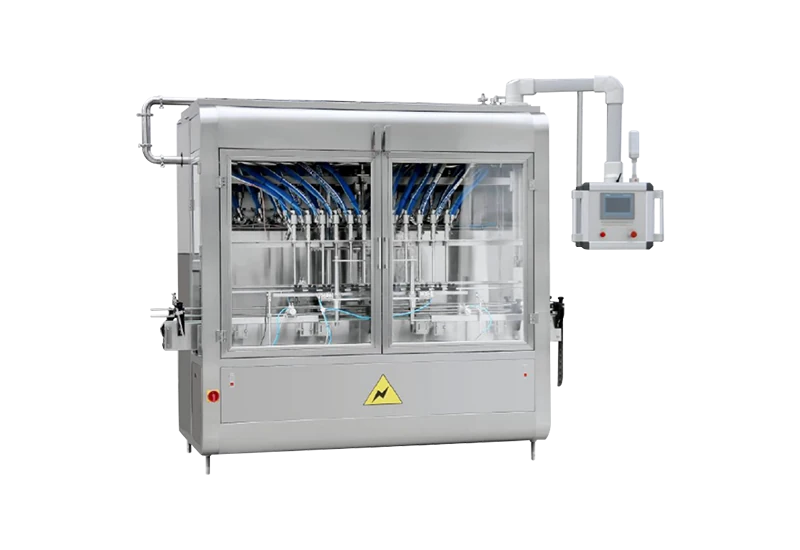

Automatic Straight Line Piston Filling MachineAutomatic Straight Line Piston Filling Machine
Explore equipment

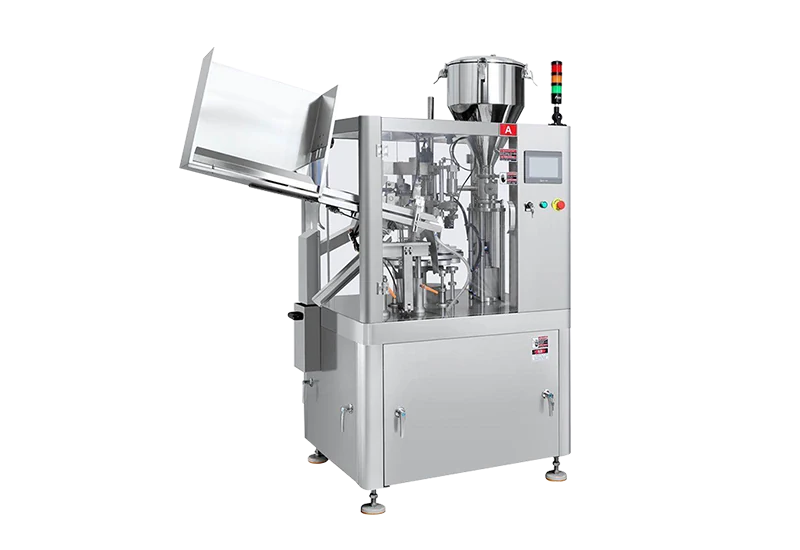

Plastic Tube Filling and Sealing MachinePlastic Tube Filling and Sealing Machine
Explore equipmentEQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 2.1 MB
