Filling arrangement
Match the filling path and container handling to your product.
Liquids & Creams
Automatic Straight Line Piston Filling Machine
Fill liquids or creams into your selected containers. Review product viscosity, fill volume, container dimensions and cleaning access before choosing the configuration.
- Product handlingviscosity and temperature
- Container toolingformat-specific setup
- Filling setupselected for your volume
A CLOSER LOOK
See how the
product is handled.

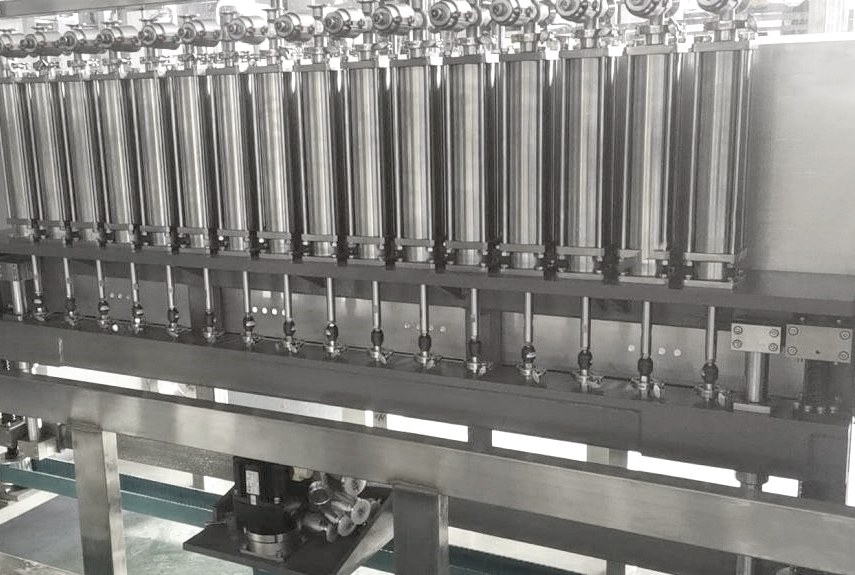

Review the equipment photographs alongside the application, access and changeover requirements for your process.

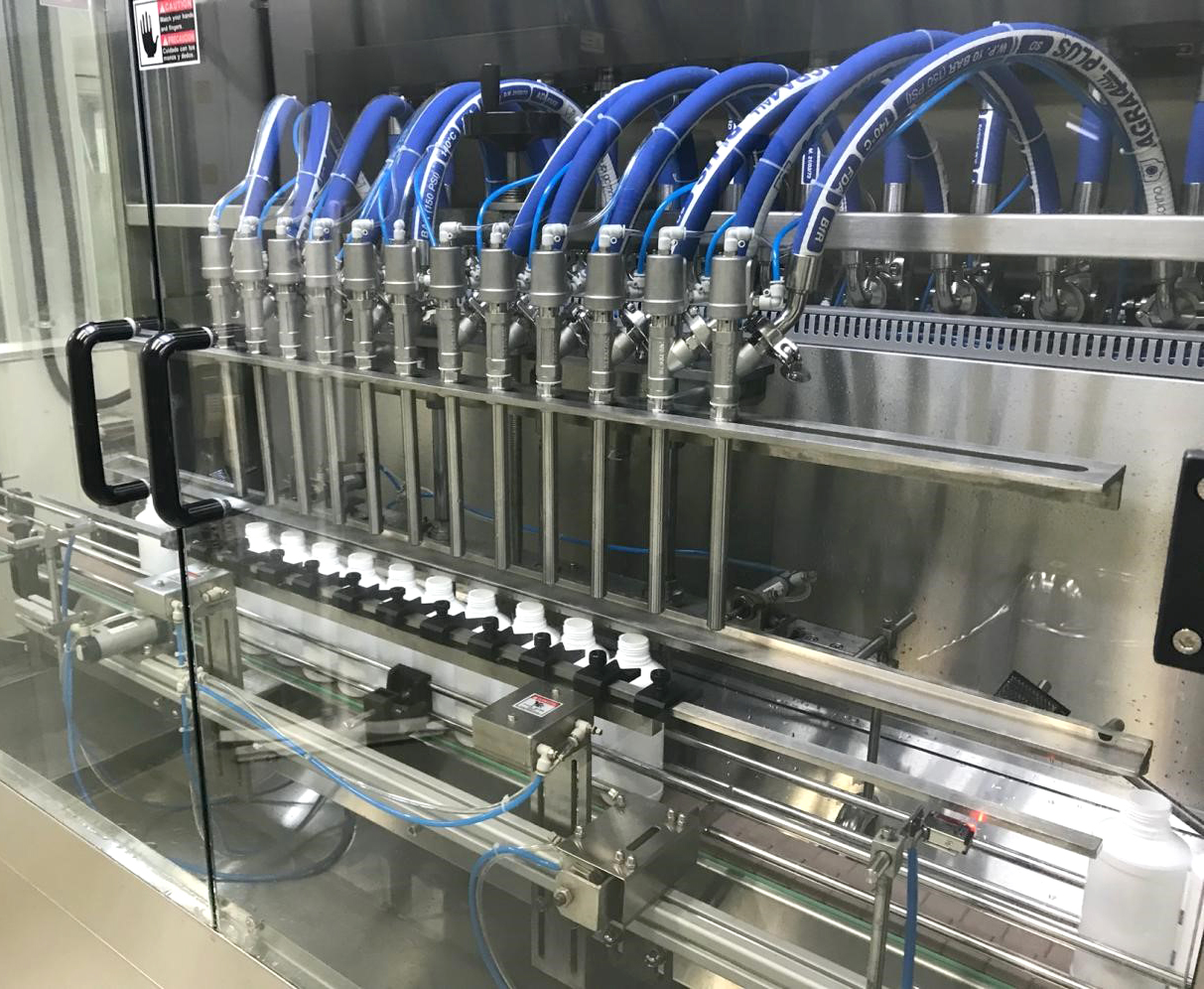

Container positioning
Review format parts, container stability and changeover access.

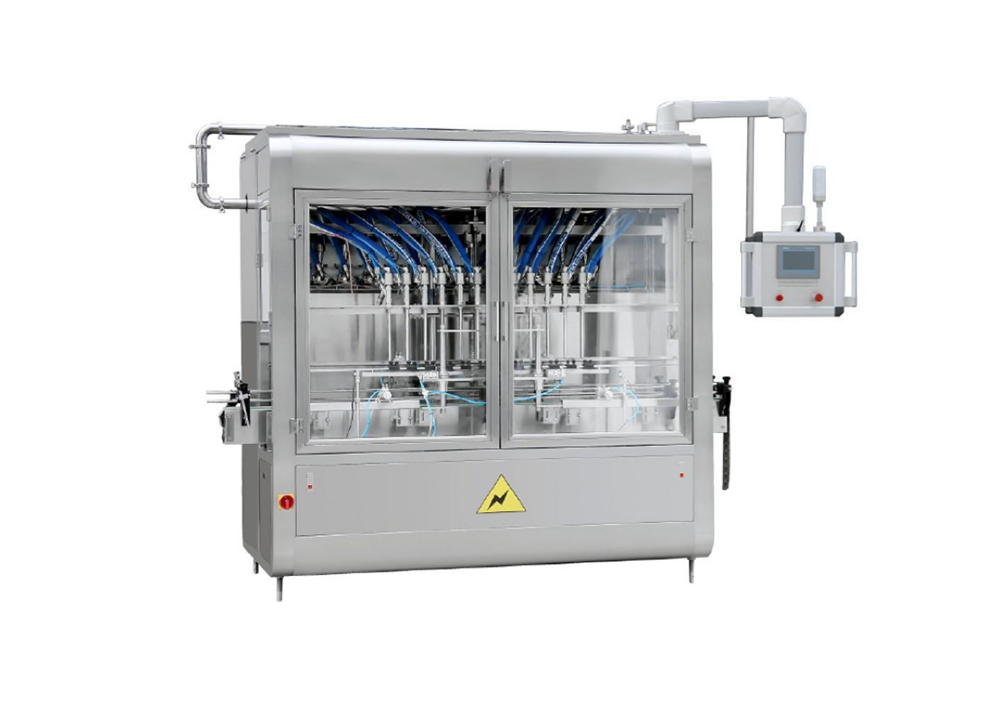

Selected machine configuration
Confirm the machine layout and supplied closure or transfer equipment in your quotation.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
Position. Fill.
Finish the container.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01
Present
Feed and position the selected containers.
- 02
Meter
Set the fill quantity for the product and volume.
- 03
Fill
Fill through the selected dosing and nozzle arrangement.
- 04
Finish the fill
Transfer the filled container to the selected closure step.
- 05
Discharge
Discharge for inspection and downstream packing.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
Straight-line piston filling / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Viscosity, temperature, foaming and target fill volume
- Container / tube samples and closure specification
- Target output, cleaning method and change parts
| Equipment reference | Straight-line piston filling |
|---|---|
| Dosing selection | Selected for product viscosity and fill volume |
| Utilities | Power, air and heating confirmed for selected configuration |
| Filling speed | 45-55 Bottles/Min (500ml/8 Head) |
| Cylinder specification | 50-1000ml |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.
Explore related equipment, then review which items belong in your project scope with our team.
EQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 1.8 MB
