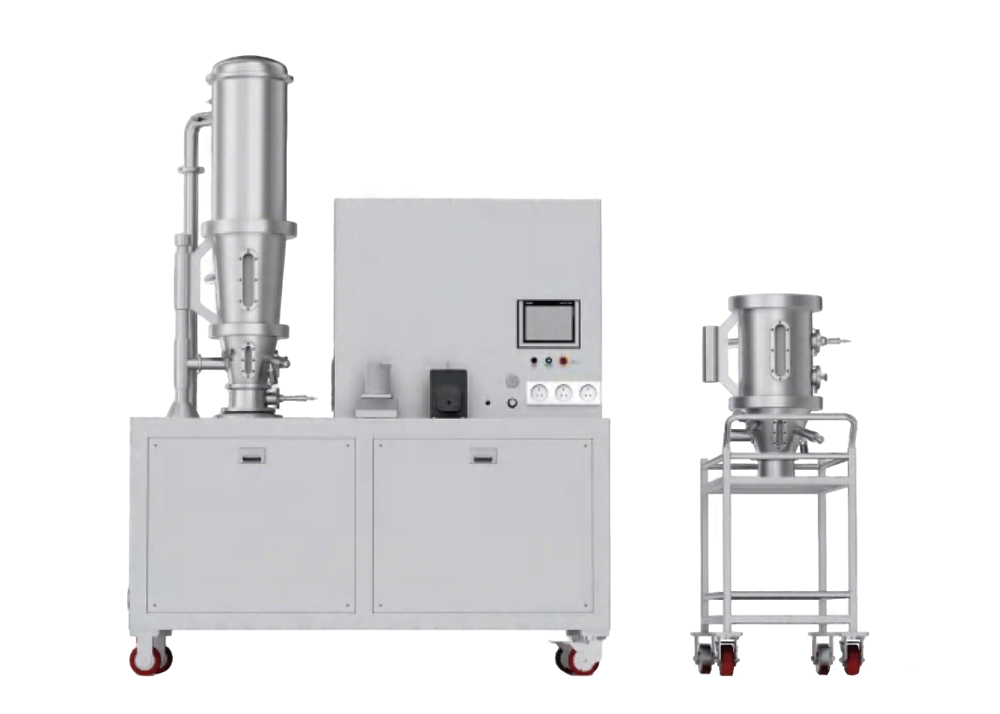

Lab Multifunctional Fluid Bed Granulator
(DPLS Series)
Lab Multifunctional Fluid Bed Granulator
You are here:
A versatile lab-scale unit that replicates industrial processes, allowing for feasibility studies and process optimization with minimal API usage.
- The DPLS Series is a compact, high-precision processing system specifically engineered for laboratory-scale R&D and pilot production.
- It replicates industrial-scale fluid bed processes on a small scale, allowing for efficient product development and process optimization with minimal material usage.
- Pharmaceutical R&D: Ideal for small-batch drug formulation development, pilot testing, and process validation.
- Chemical & Food Research: Suitable for precise experimental drying and granulation of specialty powders where material quantities are limited.
The DPLS Series is a compact, high-precision processing system specifically engineered for laboratory-scale R&D and pilot production.
It replicates industrial-scale fluid bed processes on a small scale, allowing for efficient product development and process optimization with minimal material usage.
Pharmaceutical R&D: Ideal for small-batch drug formulation development, pilot testing, and process validation.
Chemical & Food Research: Suitable for precise experimental drying and granulation of specialty powders where material quantities are limited.
Features and Benefits
- Scale-Up Capability: Specifically designed for laboratory environments, enabling researchers to conduct feasibility studies and process optimization that can be seamlessly scaled up to industrial-size Wonsen units.

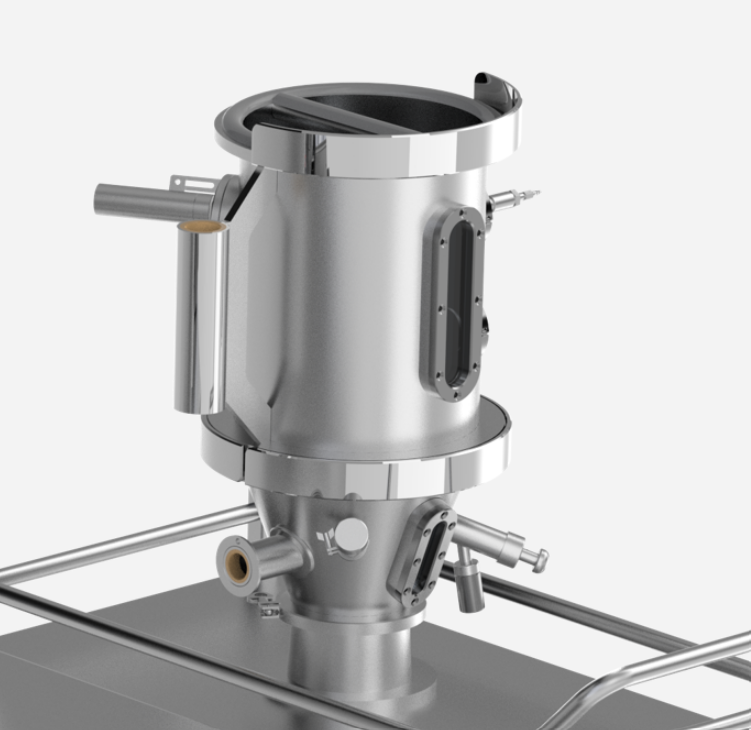

- Comprehensive Functionality: Supports a wide range of laboratory processes including mixing, drying, top-spray granulation, and bottom-spray coating within a single footprint.
- Scalability: The diverse range of models (from 6.5 kg – 500 kg) supports seamless scaling from pilot-scale research to full-scale industrial production.
- Precision Engineering: High-quality laboratory performance with advanced hot air filtration to ensure product purity and reproducibility.
- Wide Industry Utility: Widely used in pharmaceutical, food, and chemical research sectors for reliable product testing and validation.
Volume Range:
Effective volume for granulation and drying ranges from 3 L – 14 L, with coating volumes ranging from 3 L – 12 L.
Batch Capacity:
Production capacity spans from 0.45 kg – 5 kg per batch depending on the process type.
Heating Modes:
Two alternative modes available, including electric heating or steam heating.
Hot Air Filtration:
Equipped with sub-HEPA or HEPA grade filtration for laboratory cleanliness standards.

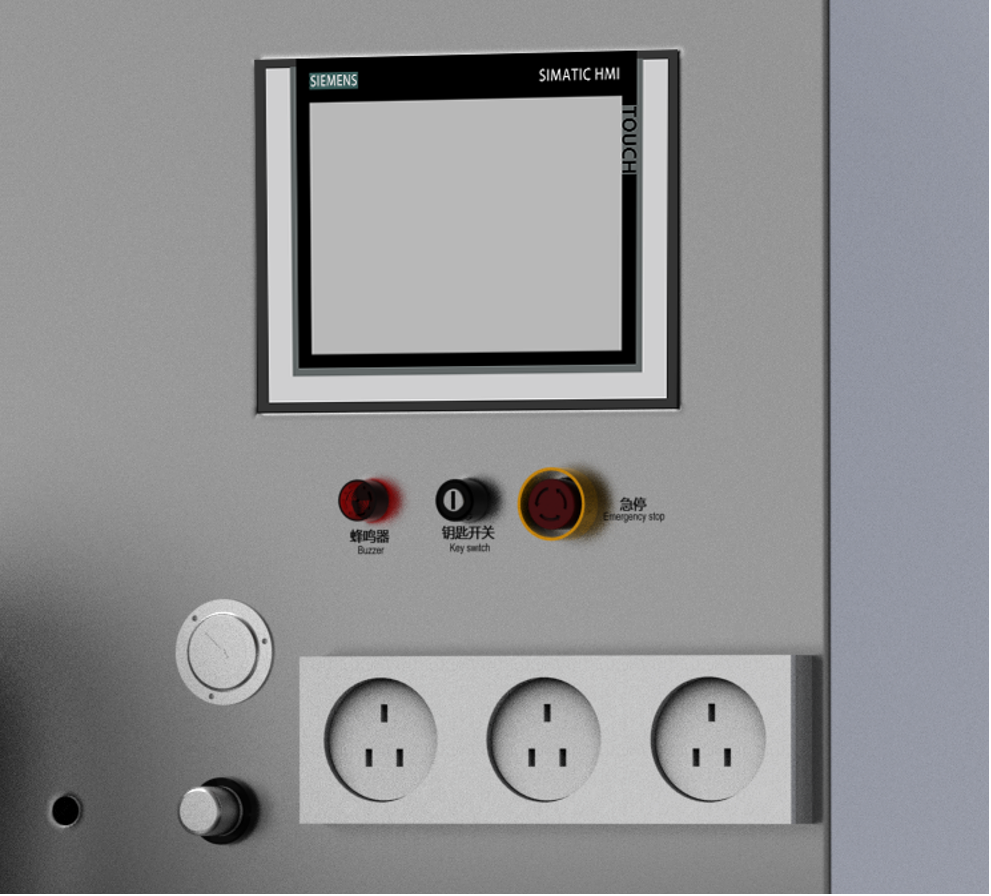

Temperature Control:
Precise control ranging from room temperature up to 100°C.
TECHNICAL PARAMETERS
| DPLS Series | |
|---|---|
| Specification | Details |
| Effective volume (Coating) | 3 L - 12 L |
| Effective volume (Granulation & Drying) | 3 L - 14 L |
| Total power | 6.2 kW - 19.5 kW |
| Compressed air pressure | 0.6 - 0.8 MPa |
| Compressed air consumption | 0.15 - 0.6 m3/min |
| Heating temperature range | Room temperature - 100 °C |
| CF-Q 7500B/C/E | |||
|---|---|---|---|
| Model | DPLS-1 | DPLS-3 | DPLS-5 |
| Weight | 700 kg | 700 kg | 850 kg |
| Dimensions | 1600×850×2375 mm | 1900×1100×2510 mm | 2100×1200×2825 mm |
Product references: DPLS-1 / DPLS-3 / DPLS-5 MODELS
Featured Products
V-Type Blender (V Series)
Automatic Lifting Bin Blender (ZTH Series)
GZL-200H Roller Compactor
Vertical Bin Blender (WSV Series)
Single Column Lifting Bin Blender (HLT Series – Standard)
GZL-1000 Roller Compactor

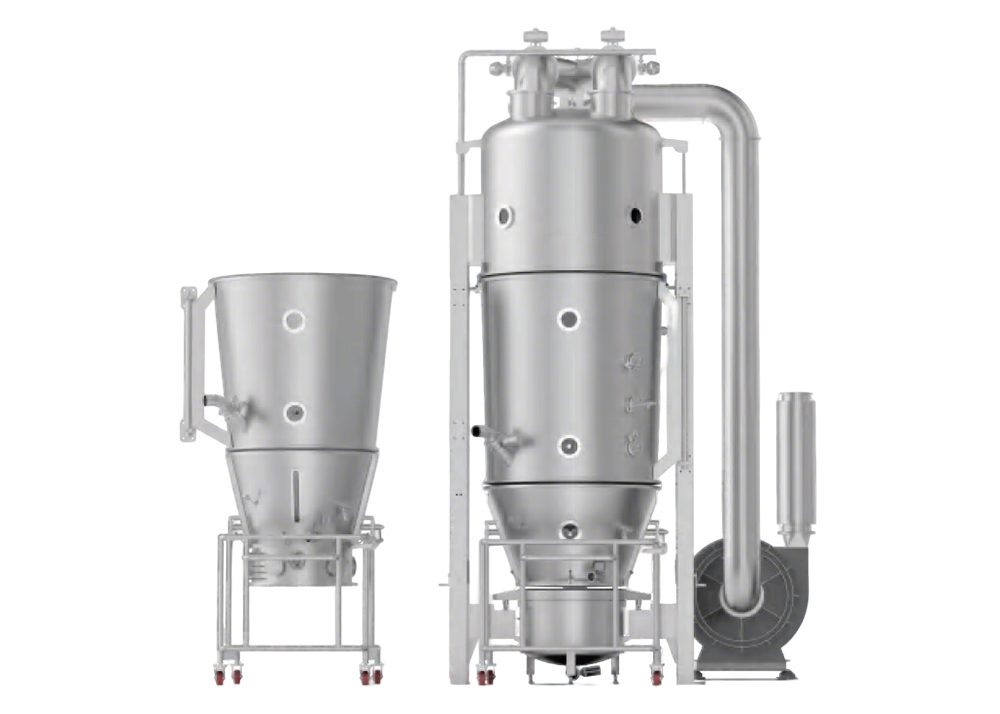

Multifunctional Fluid Bed Granulator (DPL Series)
