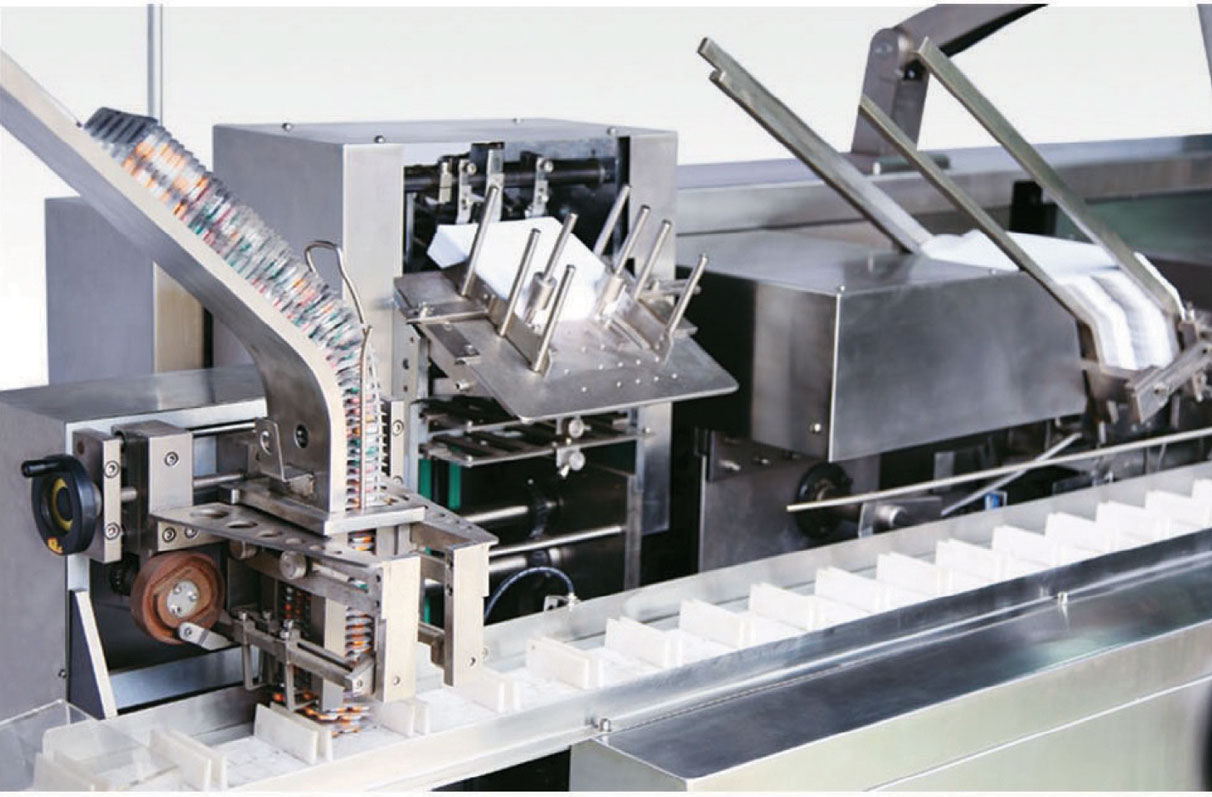

Our horizontal cartoning machines are expertly engineered to efficiently package a diverse array of pre-packed products into carton boxes. These versatile machines can handle both single and multi-pack arrangements. At Encap North America, we offer carton packing solutions that are fully adaptable to meet each customer’s unique requirements. Our product lineup includes machines for packaging sachets, blister packs, and bottles. Continue reading to discover more about our offerings.
ATTRIBUTES
Attributes
- Seamless online product feeding and detection
- Versatile leaflet folding (1 to 4 folds)
- Efficient carton opening and formation
- Batch number printing capability
- Secure carton sealing options: tuck-in or hot melt glue
- Automated rejection system for missing leaflets or products
- Reliable finished product discharge
TECHNICAL PARAMETERS
| CF-Q 7500B/C/E | |
|---|---|
| Encasing Speed | 30-120 cartons/min |
| Sachet Quantity | 1-12 bags (Based on sachet or pouch size) |
| Carton Quality Requirement | 250-350 g/m2 (Based on carton size) |
| Carton Dimension Range (L x W x H) | 70-180×35-85×14-50 mm |
| Leaflet Quality Requirement | 60-70 g/m2 |
| Leaflet Unfolded Leaflet Specification | 80-250×90-170 mm |
| Leaflet Fold Range | 1-4 fold |
| Compressed Air Working Pressure | ≥ 0.6 MPa |
| Compressed Air Consumption | 260-300 L/min |
| Power supply | 220V 50Hz |
| Motor power | 2.2 kw |
| Dimensions | 4200×1050×1600 mm |
| Weight | 1600 kg |

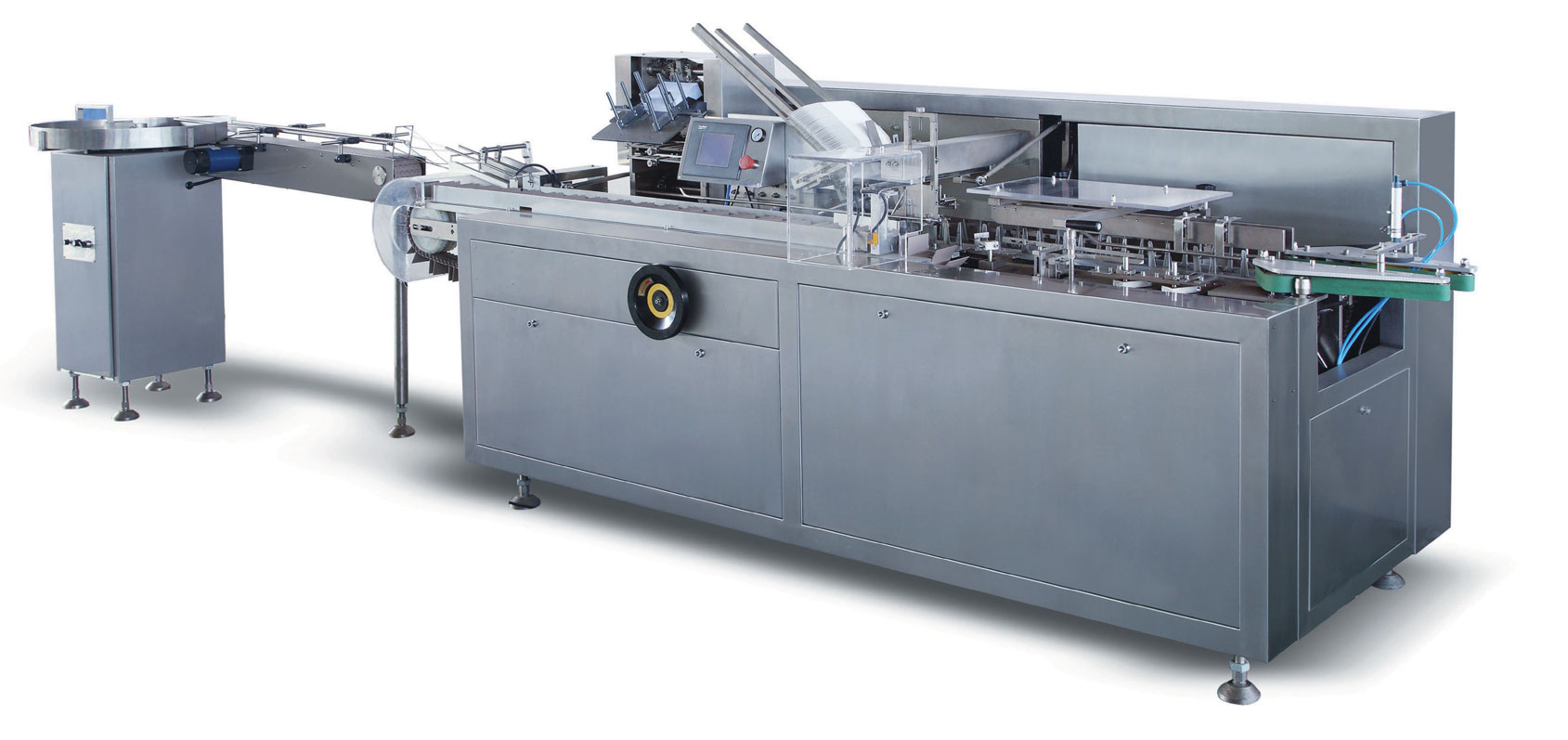

CPZH-H-120D Automatic Horizontal Cartoning Machine (Sachets)

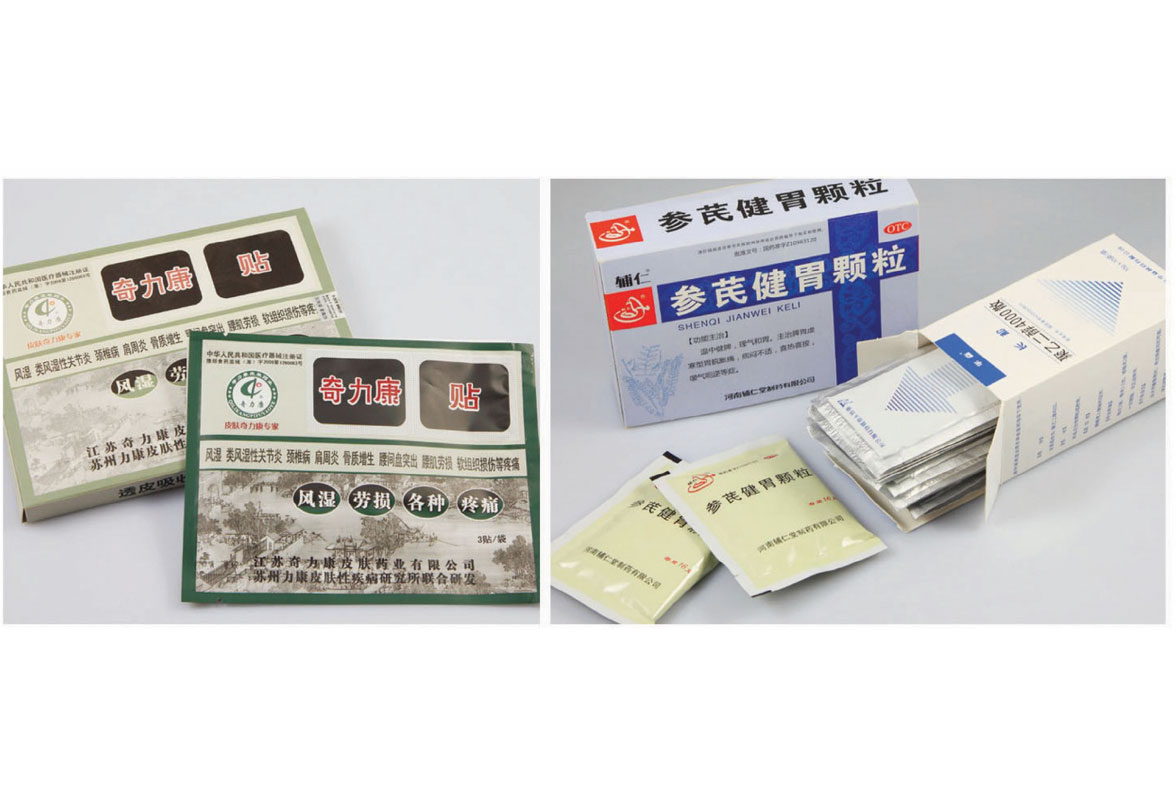

This versatile model is designed for packaging various items into cartons, such as sachets, condoms, adhesive bandages, soft aluminum strips, plasters, coffee bags, face masks, and many other products.

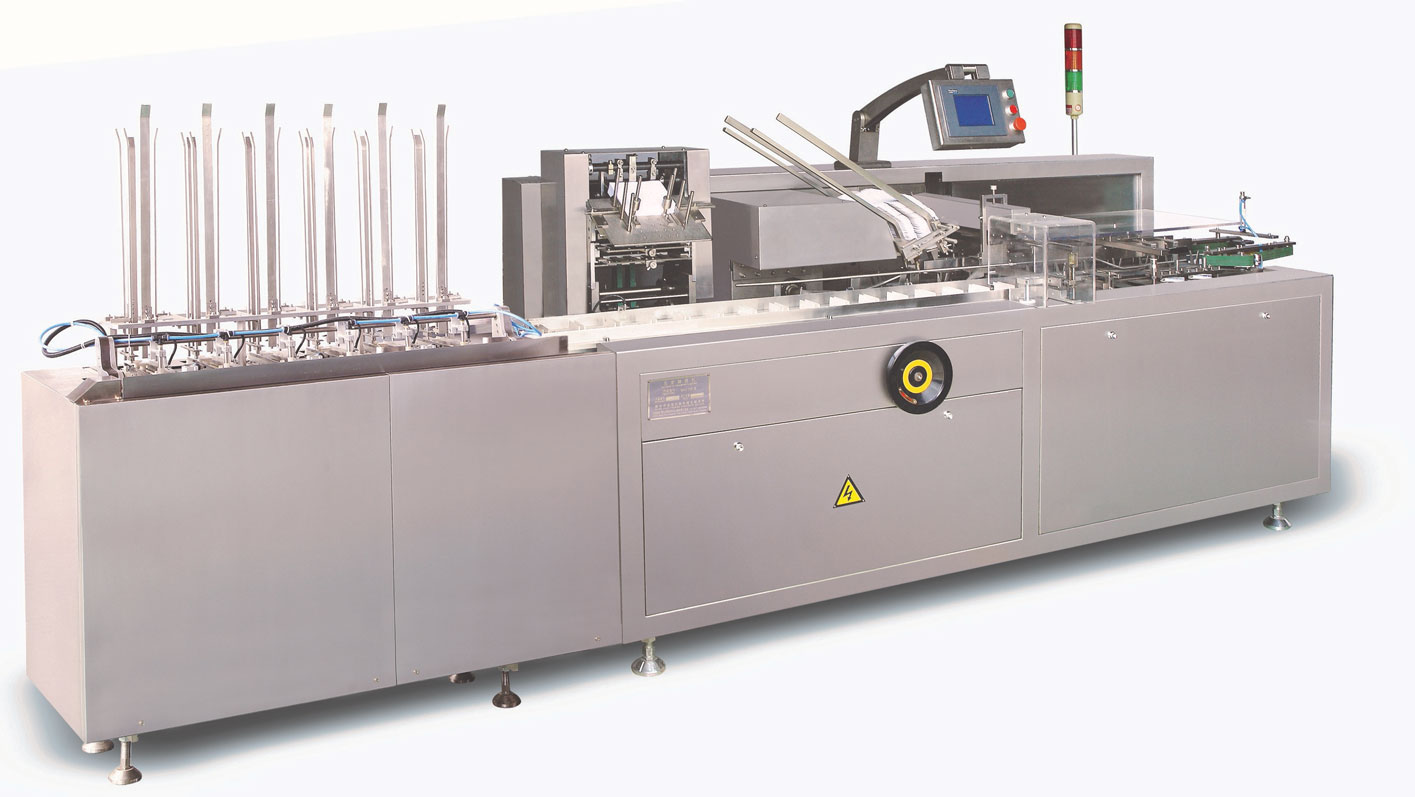

CPZH-H-120III Automatic Horizontal Cartoning Machine (blister package)

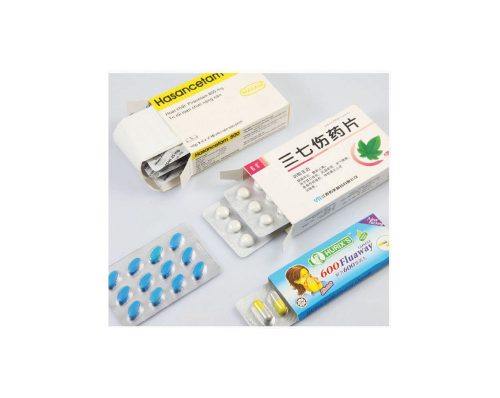

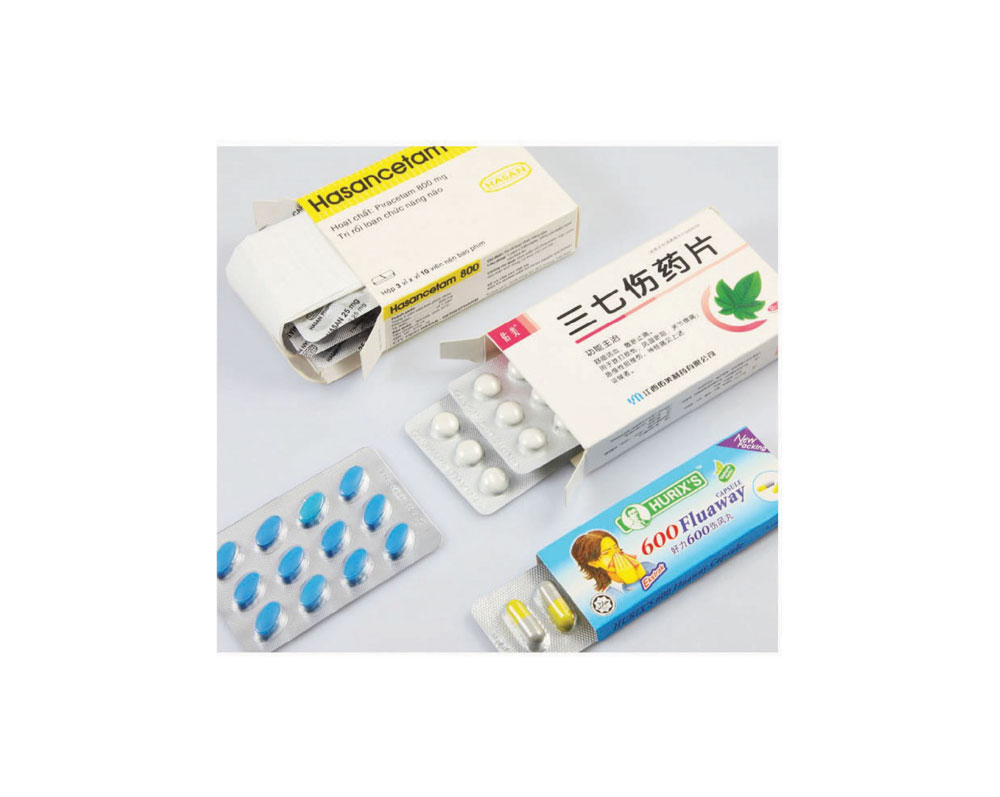

Specially crafted for cartoning blister packages, this machine handles ALU-PVC blisters, ALU-ALU blisters, and similar products with ease and precision, making it ideal for diverse applications.

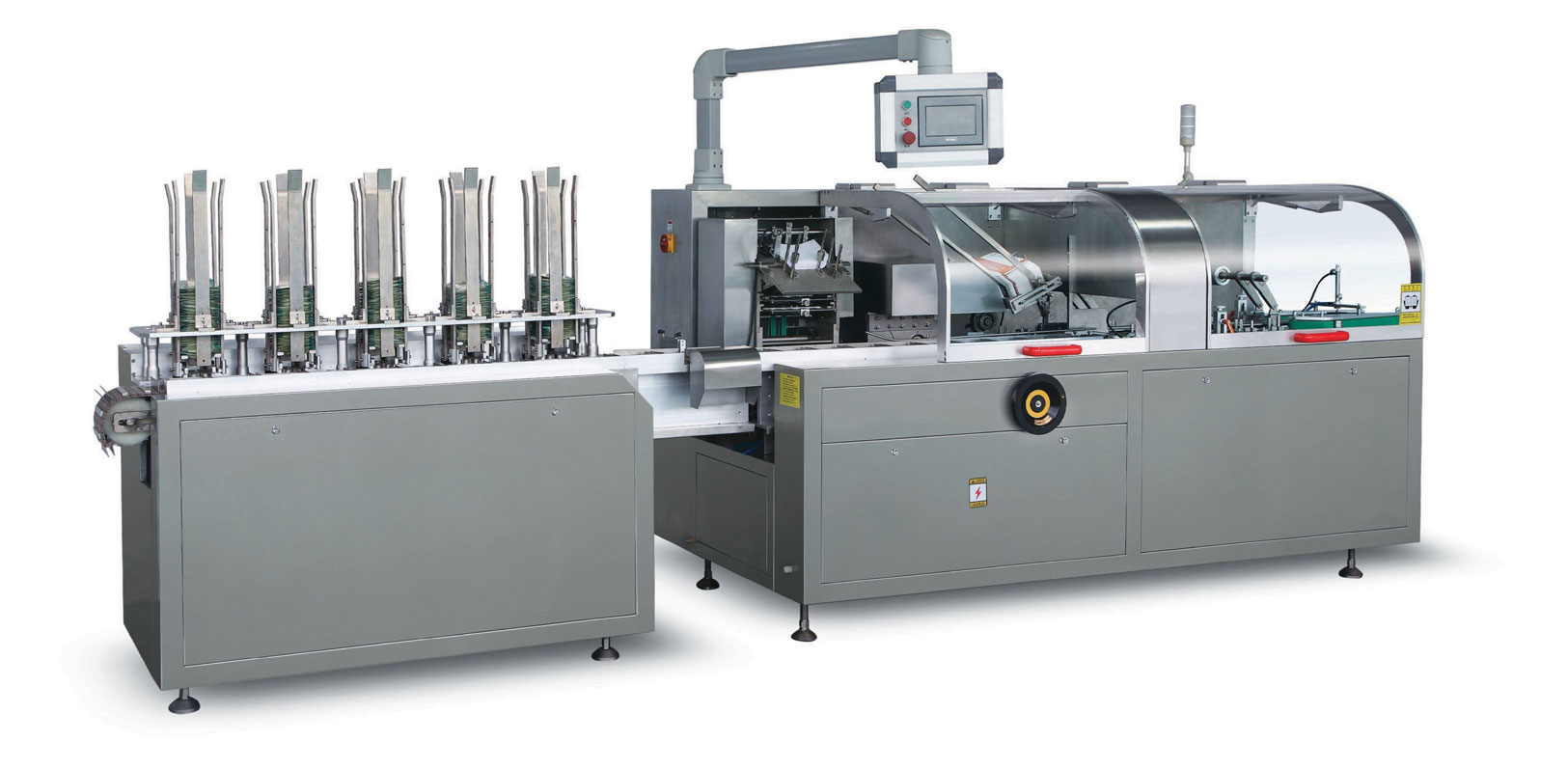

CPZH-H-120P Automatic Horizontal Cartoning Machine (bottles)

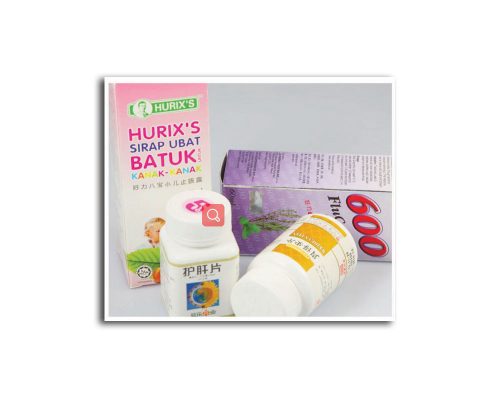

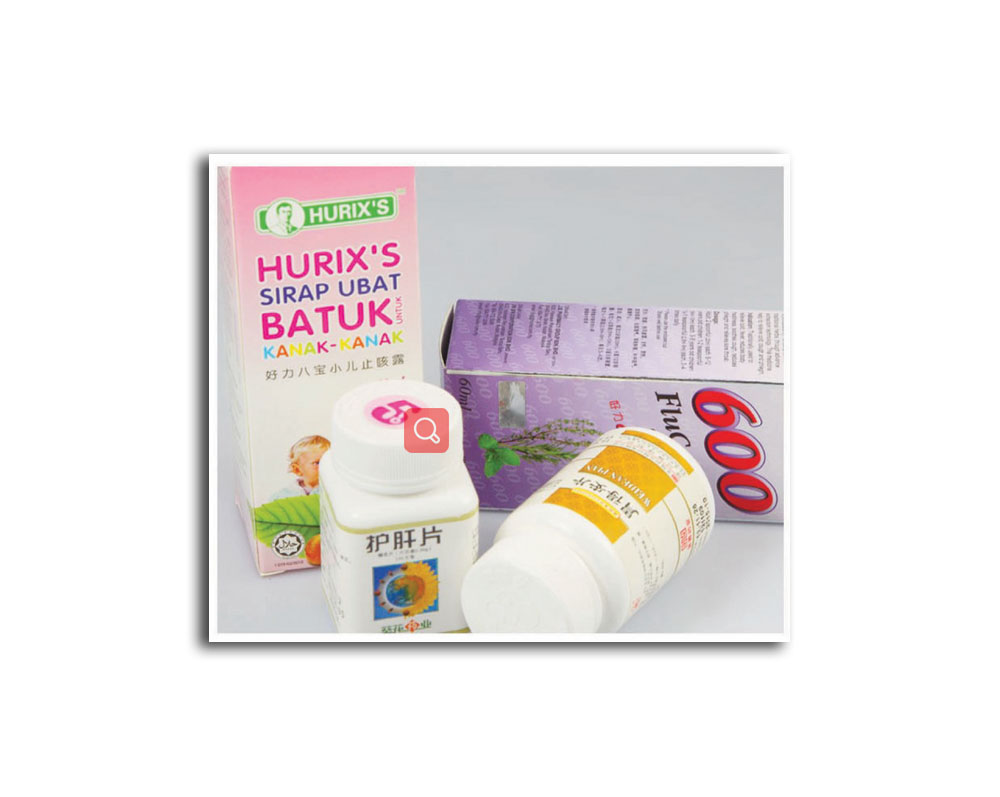

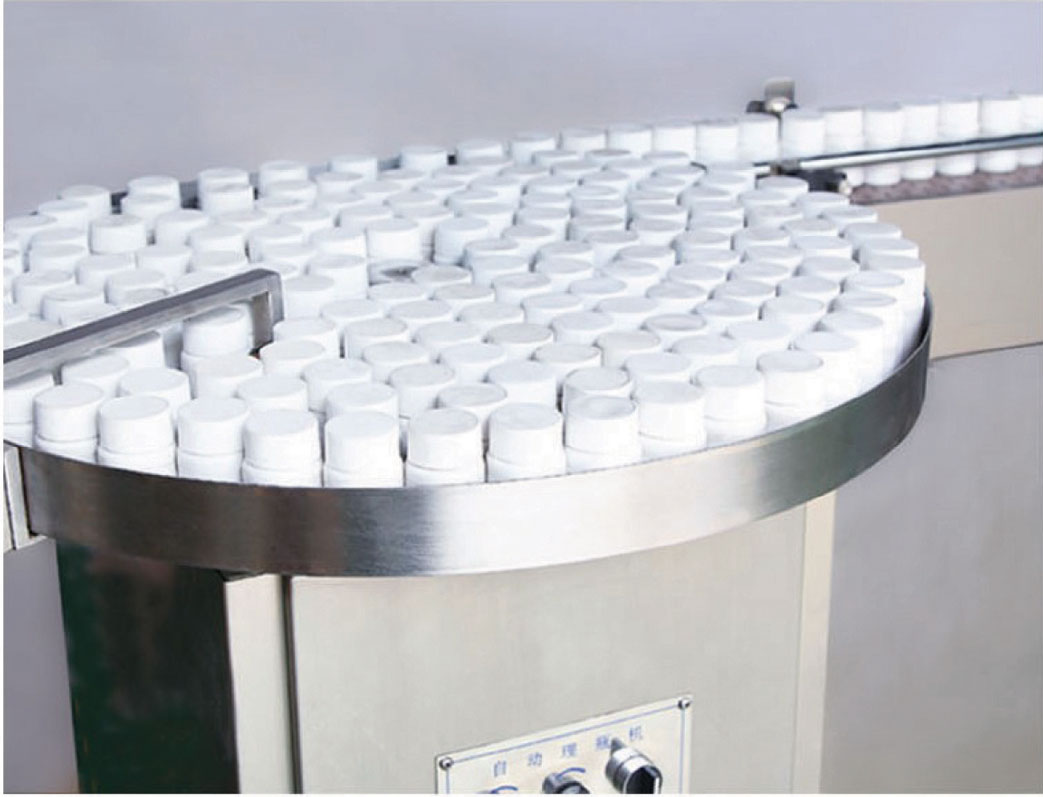

Perfect for cartoning medicinal bottles, whether round or flat, as well as eyedropper bottles and similar types. This machine ensures secure and efficient packaging for a variety of bottle shapes.
