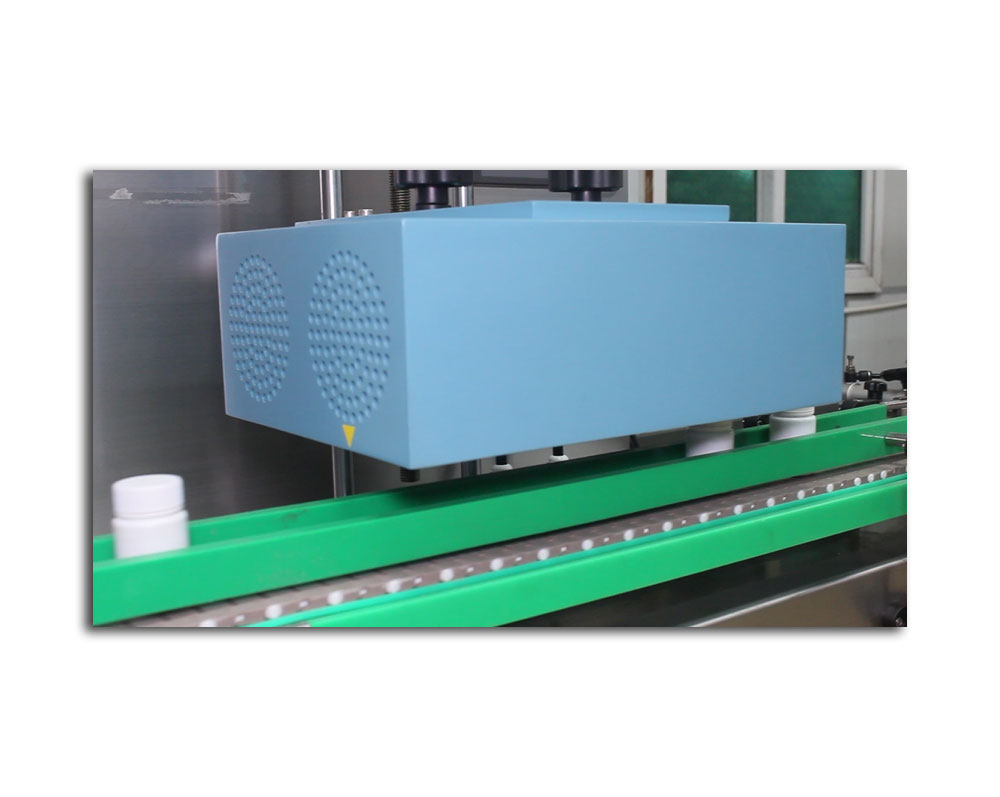

Sealing head
Match the head position and conveyor setup to the capped bottle.
Counter & Packing

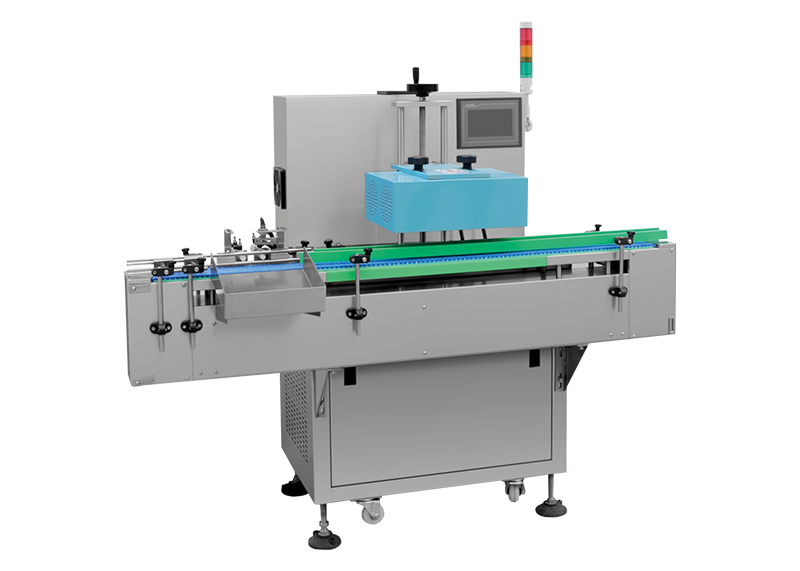

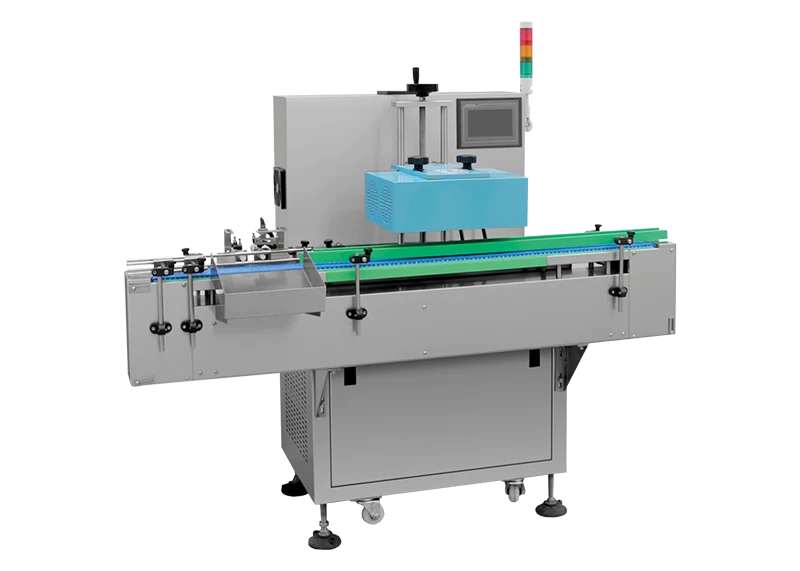

High Frequency Aluminium Foil Sealing Machine
Use electromagnetic induction to bond a compatible foil liner to the bottle mouth. Review the bottle, cap and liner as one sealing system.
- Format changeoverbottle and consumable samples
- Line coordinationmatch upstream / downstream
- Setup reviewmaterial trials by arrangement
A CLOSER LOOK
See the station
in the bottling line.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

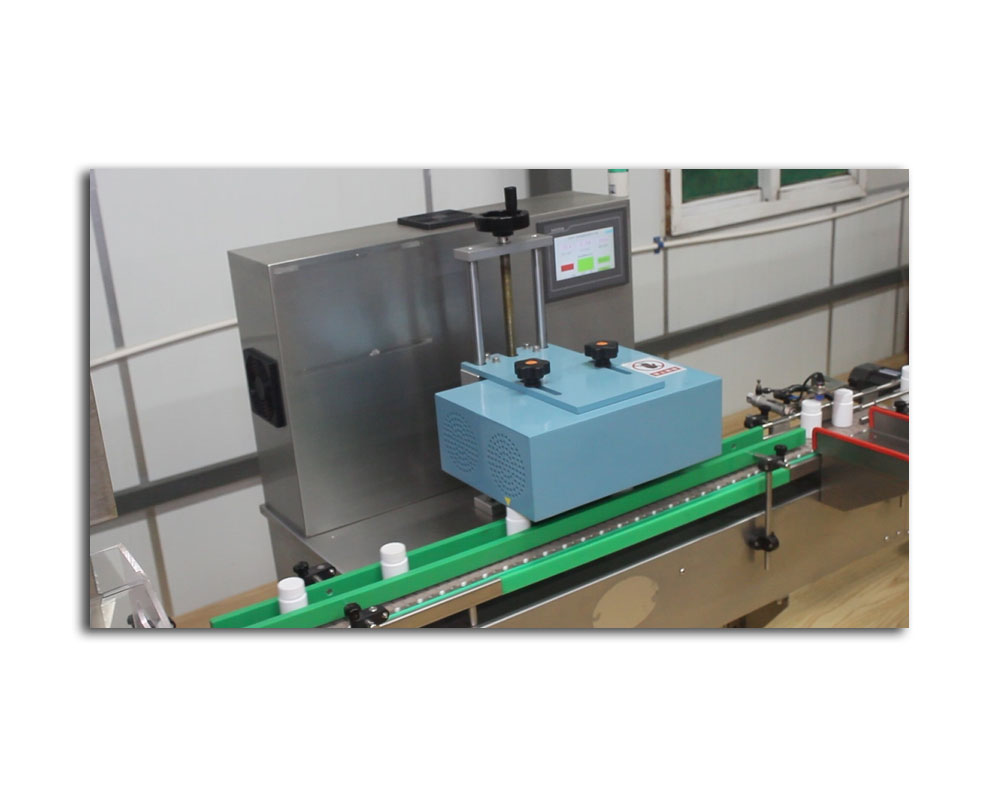

Line installation
Coordinate conveyor speed and bottle spacing with the sealing process.

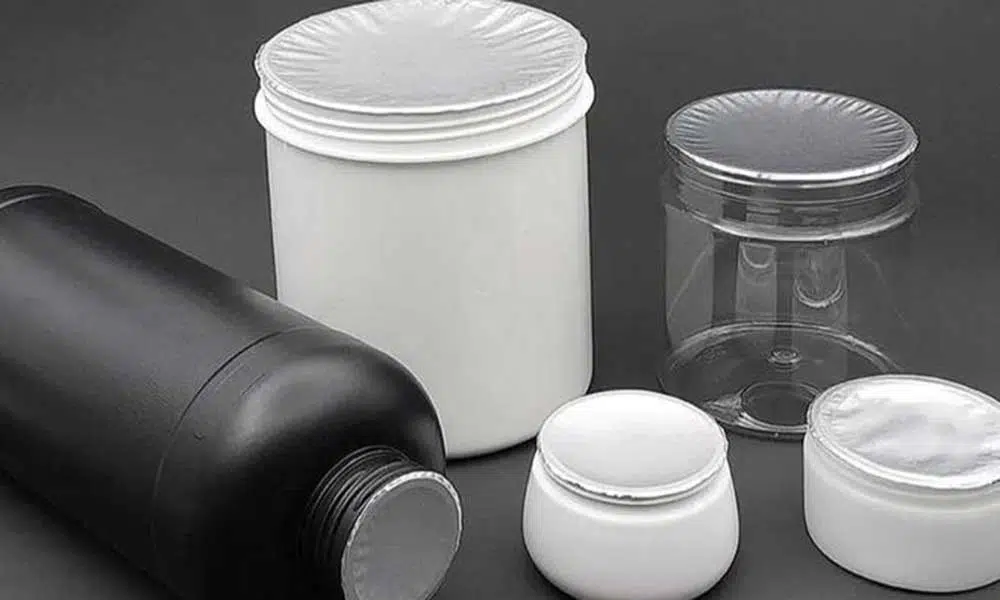

Package compatibility
Use representative bottles, caps and liners to evaluate the seal.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
One station.
A coordinated bottle line.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01
Present capped bottles
Use caps and induction liners compatible with the bottle material.
- 02
Apply induction

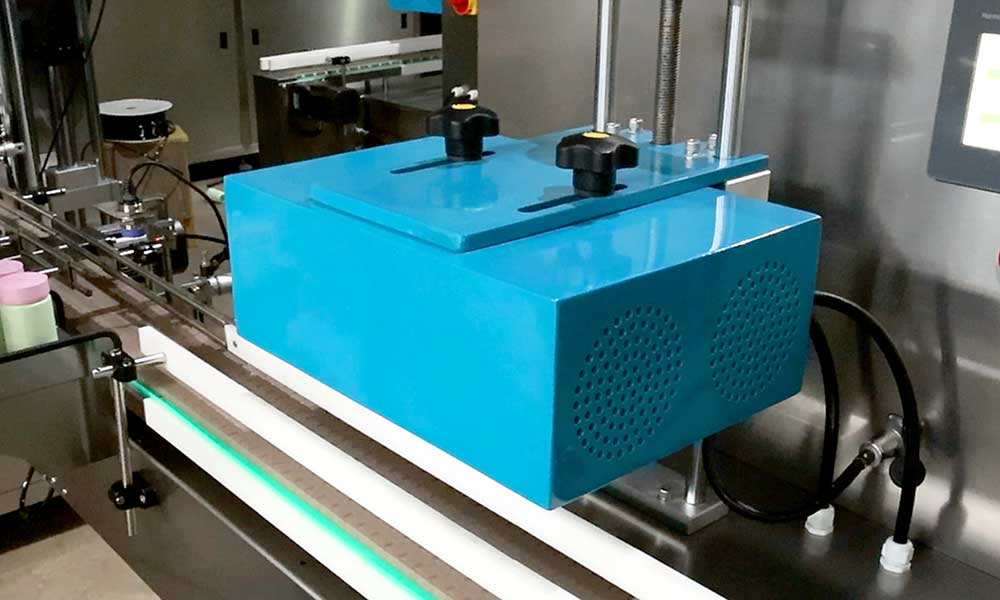

Pass the package beneath the selected induction head.
- 03
Bond the liner
Allow the liner seal layer to bond to the bottle finish.
- 04
Evaluate seals
Check sealing results using your package acceptance criteria.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
CPFK-260 induction sealing / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Bottle dimensions, neck opening and samples
- Consumable specifications and required operation
- Line speed, bottle spacing and upstream / downstream interfaces
| Station reference | CPFK-260 induction sealing |
|---|---|
| Electrical configuration | 220V; phase and 60Hz supply confirmed by selected machine |
| Output | 20-260 bottles/min |
| Power | 4kw |
| Air Pressure | 0.5MPa |
Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.
Explore related equipment, then review which items belong in your project scope with our team.
EQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 1.9 MB
