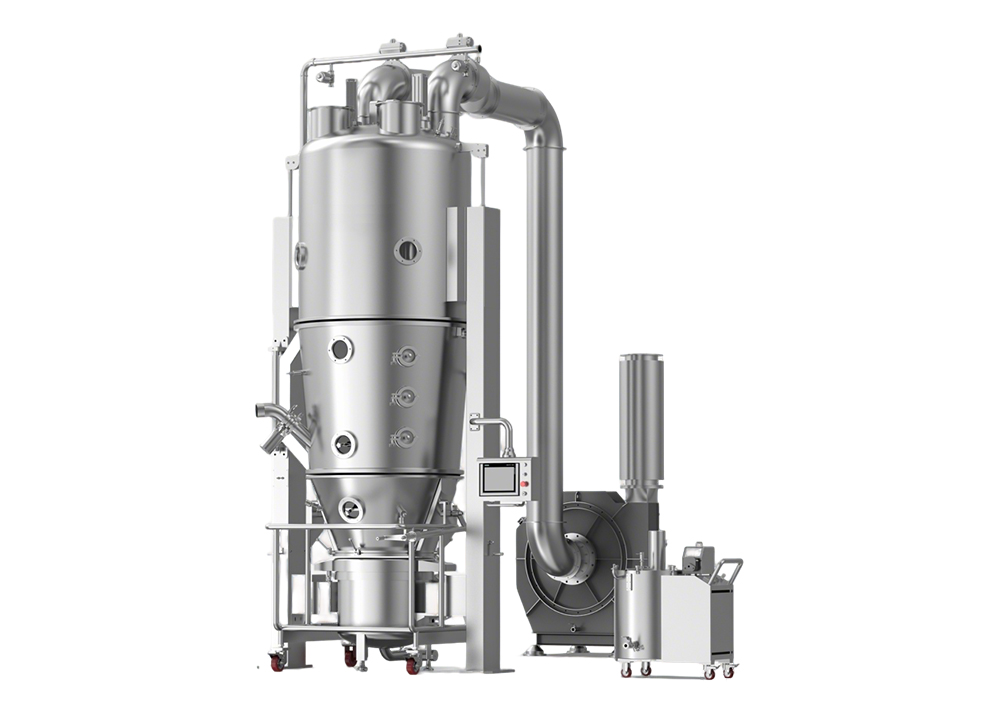

Fluid Bed Granulator
(FL Series)
Fluid Bed Granulator
You are here:
Specifically engineered for granulation and drying, utilizing a top-spray system to achieve precise particle size and moisture content.
- The FL Series is a high-performance, multifunctional process system engineered for solid preparation production in the pharmaceutical, chemical, and food industries.
- By integrating mixing, drying, and granulation into a single unit, it provides a streamlined solution for high-quality product manufacturing.
- Pharmaceutical Industry: It is an essential tool for the complex granulation and drying stages required for various solid dosage forms.
- Chemical and Food Industries: The machine is highly effective for diverse drying and granulating processes that require strict environmental and quality control standards.
Features and Benefits
- Granulation Versatility: The system is equipped with a top-spraying system specifically optimized for efficient and uniform granulation.
- Precision and Control: It utilizes PID precision control to ensure consistent and reproducible process outcomes.
- Operational Efficiency: The design supports high processing efficiency and features closed online sampling, which allows for real-time quality monitoring during production.
- Regulatory Compliance: The FL series is built to fully meet FDA, cGMP, and GMP standards. For advanced data integrity needs, the control system can be optionally configured to comply with 21 CFR Part 11 requirements.
- Advanced Modular Options: To enhance facility-specific needs, the system is compatible with various upgrades, including WIP (Washing-in-Place) systems, PAT (Process Analytical Technology), final dedusting, and dehumidifier systems.
Volume Range:
Effective volume ranges from 45 L – 1430 L.
Batch Capacity:
Production capacity spans from 6.5 kg – 500 kg per batch.
Heating Modes:
Two alternative modes available, including electric heating or steam heating.
TECHNICAL PARAMETERS
| FL Series | |
|---|---|
| Specification | Details |
| Effective volume | 45 L - 1430 L |
| Total power | 7.5 kW - 75 kW |
| Steam pressure | 0.4 - 0.6 MPa |
| Compressed air pressure | 0.6 - 0.8 MPa |
| Compressed air consumption | 0.4 - 1.8 m3/min |
| Heating temperature range | Room temperature - 120 °C |
| FL Series | |||||||
|---|---|---|---|---|---|---|---|
| Model | FL-15 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 |
| Main machine weight | 800 kg | 1000 kg | 1200kg | 1400 kg | 2000 kg | 2500 kg | 3500 kg |
| Auxiliary machine Weight | 2790 kg | 2790 kg | 3280 kg | 4020 kg | 3280 kg | 4050 kg | 4450 kg |
| Dimensions | 578×984×3114 | 722×984×3234 | 1022×1340×4154 | 1024×1540×4708 | 1378×1840×4840 | 1580×1840×5365 | 1868×2240×6000 |
| FL Series | ||||
|---|---|---|---|---|
| Model | FL-15 | FL-30 | FL-60 | FL-120 |
| Main machine weight | 800 kg | 1000 kg | 1200kg | 1400 kg |
| Auxiliary machine Weight | 2790 kg | 2790 kg | 3280 kg | 4020 kg |
| Dimensions | 578×984×3114 | 722×984×3234 | 1022×1340×4154 | 1024×1540×4708 |
| FL Series | |||
|---|---|---|---|
| Model | FL-200 | FL-300 | FL-500 |
| Main machine weight | 2000 kg | 2500 kg | 3500 kg |
| Auxiliary machine Weight | 3280 kg | 4050 kg | 4450 kg |
| Dimensions | 1378×1840×4840 | 1580×1840×5365 | 1868×2240×6000 |
Product references: FL-15 / FL-30 / FL-60 / FL-120 / FL-200 / FL-300 / FL-500 MODELS
