Automatic Strip Packing Machine
You are here:

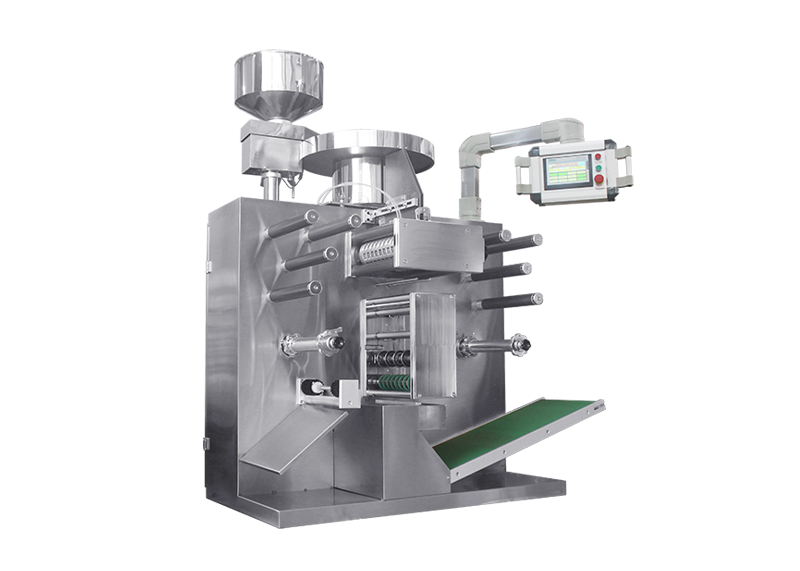

The SLB Series Automatic Strip Packing Machine is suitable for aluminum-aluminum foil heat sealing for tablets, candy, and pills.
An automatic strip packing machine is a type of packaging equipment used primarily in the pharmaceutical, healthcare, and food industries to package products like tablets, capsules, pills, candies, and other small items in a strip format. The machine automates the process of heat sealing products between two layers of packaging material, such as aluminum foil or plastic film, creating individual compartments or strips that are easy to handle and distribute.
ATTRIBUTES
- Uses PLC, frequency converter, and man-machine interface.
- Accurate feeding and sealing with stable performance.
- Enhances product grade and extends durability.
- Ideal for nutraceutical and pharmaceutical industry needs.
TECHNICAL PARAMETERS
| CF-Q 7500B/C/E | |||
|---|---|---|---|
| Model | SLB-220 | SLB-300 | SLB-400 |
| Speed of Drum (rpm) | 7-15 (stepless) | 7-15 (stepless) | 7-15 (stepless) |
| Production Capacity (pcs/h) | 20000-85000 | 20000-100000 | 20000-120000 |
| Packing Dimension (mm) | 220 | 300 | 400 |
| Electro Thermal Power | 380V/1kW×2 | 380V/1.2kW×2 | 380V/1.5kW×2 |
| Main Motor Power (kw) | 0.55 | 1.1 | 1.5 |
| Air Pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Air Supply | ≥0.1m3 /min | ≥0.1m3 /min | ≥0.1m3 /min |
| Dimensions (mm) | 1450×850×1670 | 1500×850×1670 | 1500×950×1670 |
| Weight (kg) | 650 | 900 | 1000 |
SEE THE MACHINE IN ACTION
CONTACT US TODAY TO LEARN MORE
Ready to elevate your production capabilities? Contact Encap North America today to speak with one of our experts. We’ll provide you with all the information you need, including a personalized consultation to determine how our extensive range of machinery and equipment can meet your specific needs. Request a quote, schedule a virtual demo, or download our detailed product brochure to get started.
