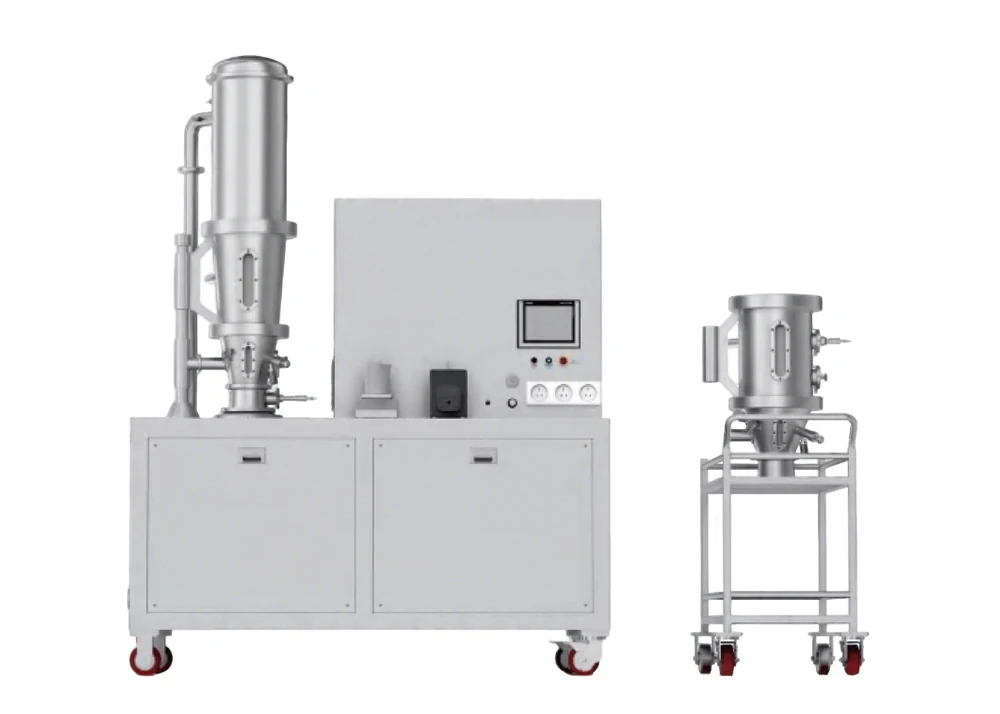

Processing arrangement
Review the chamber and process configuration against your material and required operation.
Granulating & Blending

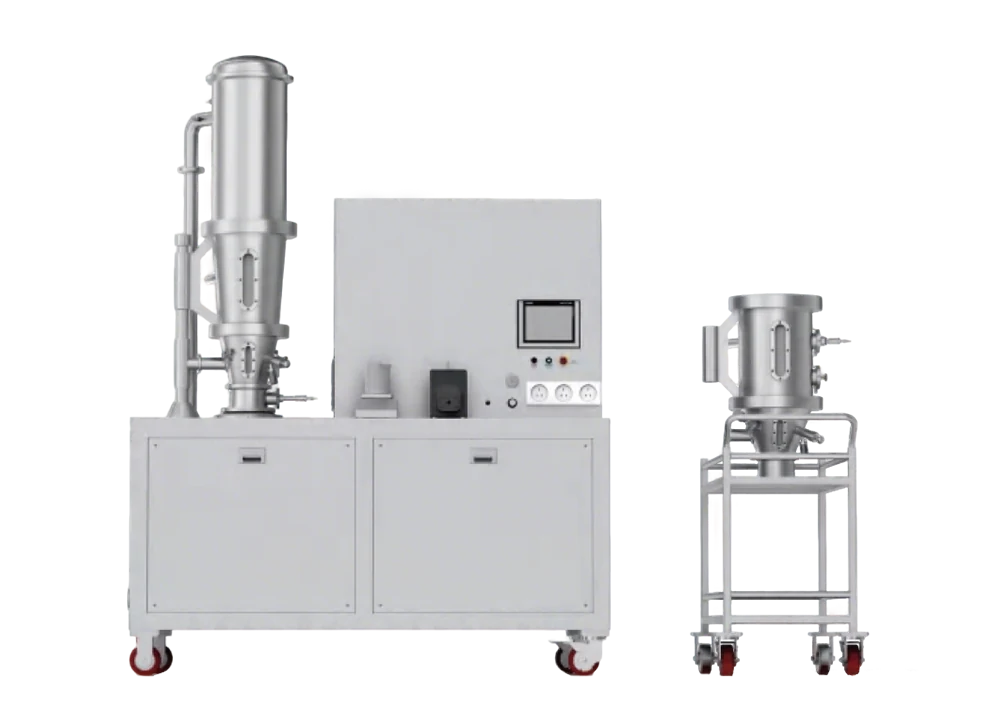

DPLS Lab Fluid-Bed Processor
Mix, granulate and dry in a fluid-bed process. Review top-spray granulation and bottom-spray coating configurations for your formulation.
- Fluid-bed processcontrolled product air stream
- Spray configurationselected for the application
- Batch selectionworking load depends on product
A CLOSER LOOK

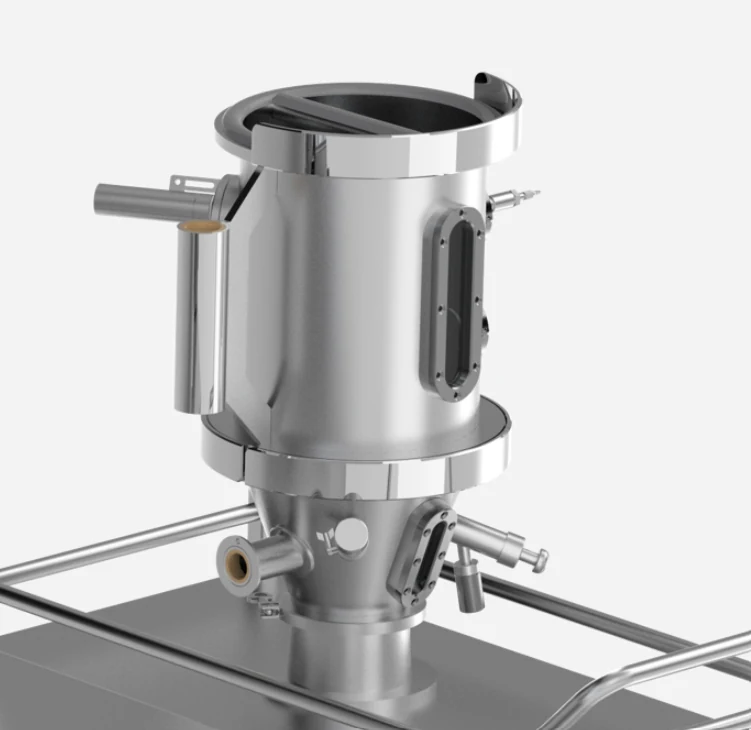

Inside the
fluid-bed system.
Review the equipment photographs alongside the application, access and changeover requirements for your process.

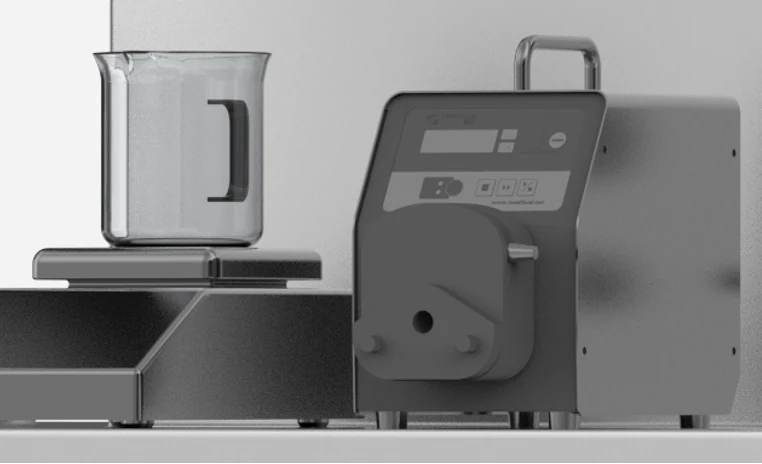

Equipment configuration

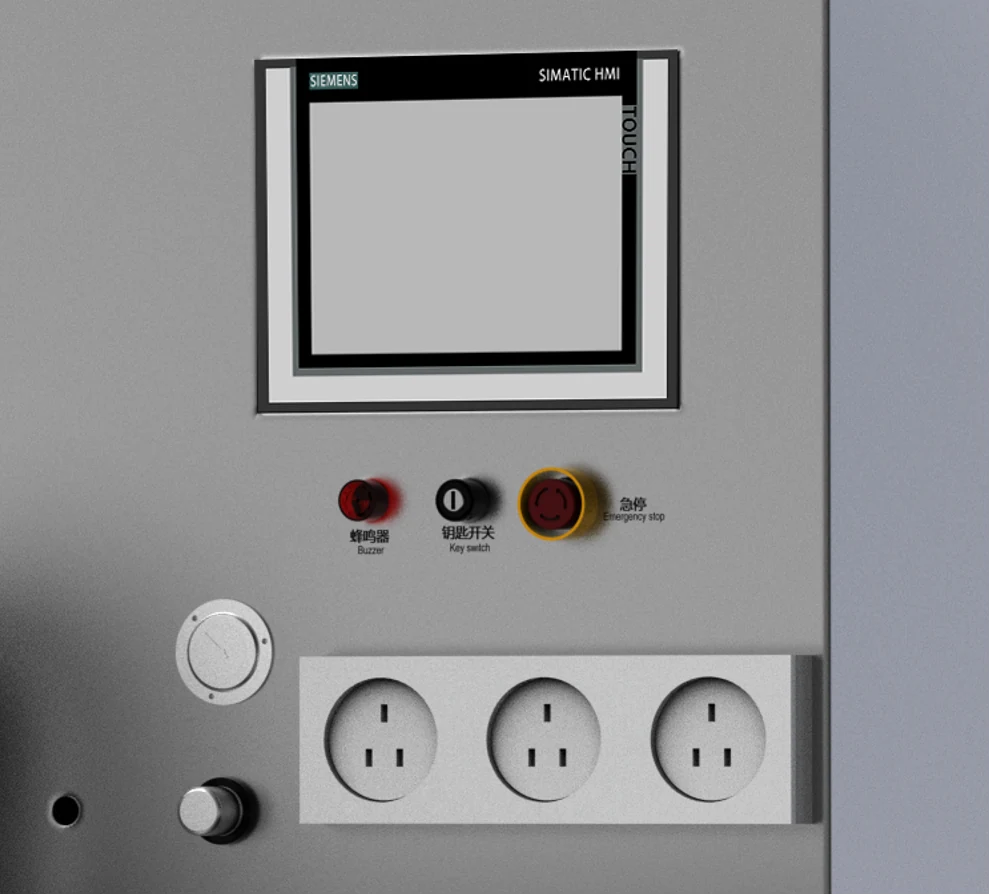

Confirm the container, controls and process attachments for the selected model.
Catalogue equipment photographs; the selected model, tooling and appearance are confirmed with your quotation.
HOW IT WORKS
Control the air.
Develop the process.
Follow the main stages, then review the settings and acceptance criteria with our team using your own product.
- 01
Load & fluidize
Load the material and establish the fluidizing air stream.
- 02
Spray
Apply the selected binder or coating liquid through the configured spray system.
- 03
Develop & dry
Adjust process conditions to develop the product and remove moisture.
- 04
Check endpoint
Review granule size, coating requirements or final moisture.
- 05
Discharge
Transfer the processed product for the next step.
Process overview · Actual equipment sequence and configuration are selected for your application.
CONFIGURATION & SELECTION
DPLS Series / CONFIGURATION REFERENCEKnow what you
are selecting.
Catalogue selection reference. Output depends on the product, tooling and operating conditions. Final specifications, utility loads and supplied options are confirmed for the machine in your quotation.
Bring these details to the discussion
- Material bulk density, batch load and target endpoint
- Binder / coating formulation and spray configuration
- Available steam / heating, air handling, ceiling height and exhaust route
| Series reference | DPLS Series |
|---|---|
| Process | Configured fluid-bed granulation / drying / coating |
| Heating and air handling | Scope and utility loads selected for the project |
| Effective volume (Coating) | 3 L - 12 L |
| Effective volume (Granulation & Drying) | 3 L - 14 L |
| Total power | 6.2 kW - 19.5 kW |
| Compressed air pressure | 0.6 - 0.8 MPa |
| Compressed air consumption | 0.15 - 0.6 m3/min |
| Heating temperature range | Room temperature - 100 °C |
| US three-phase configuration | 220V, 3-phase, 60Hz; connected loads confirmed in quotation |

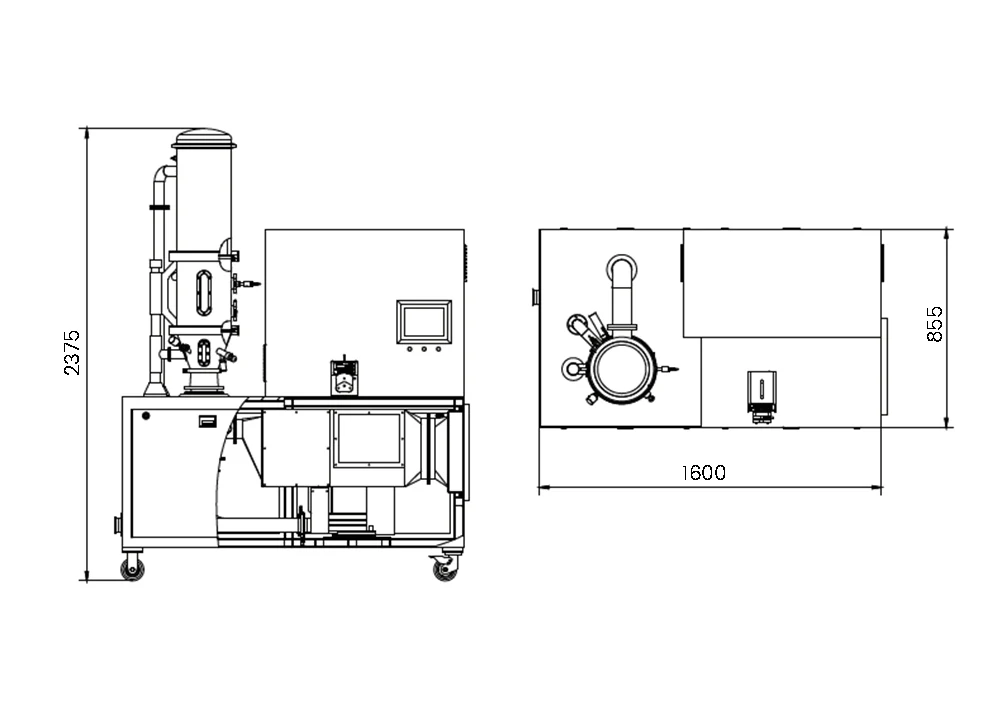

Need the configuration sheet or layout?Ask our team for the model-specific specifications, utility requirements and equipment scope for your project. Technical details are confirmed in your quotation.
SUPPORT THROUGH PRODUCTION
The equipment is
only the beginning.
Practical support from selection through production. Services, scheduling and responsibilities are agreed for your project.
Select & plan
Review the application, equipment scope, FAT and delivery plan before the machine ships.
Discuss your projectInstall & start up
Arrange installation assistance, commissioning, operator training and production coaching.
Explore startup supportKeep production moving
Talk with our San Diego team about maintenance, troubleshooting, parts and repair.
Ask for technical supportPLAN THE NEXT STEP
Build the process
around your product.
Explore related equipment, then review which items belong in your project scope with our team.
EQUIPMENT FINANCING
Plan the machine.
Explore the payment options.
Ask about financing for an eligible equipment purchase, with an equipment quote and payment terms reviewed together.
Financing is subject to approval and program availability.
Catalogue specification
Confirm the exact model, current configuration, utilities and included equipment with our team before ordering.
Download catalogue spec sheet (PDF) · 2.8 MB
