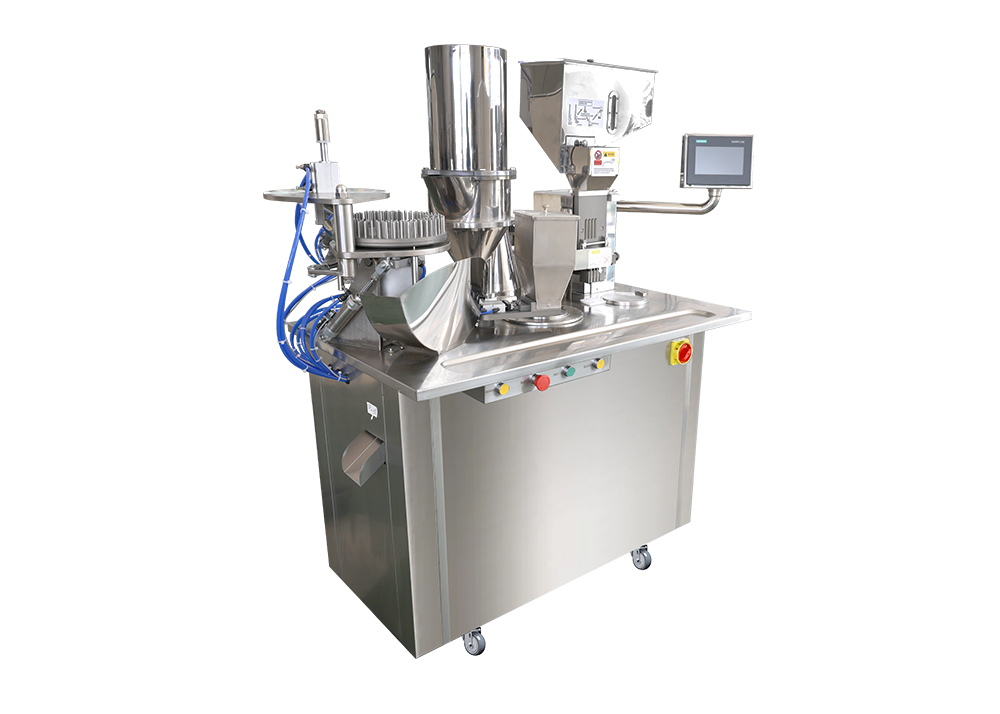

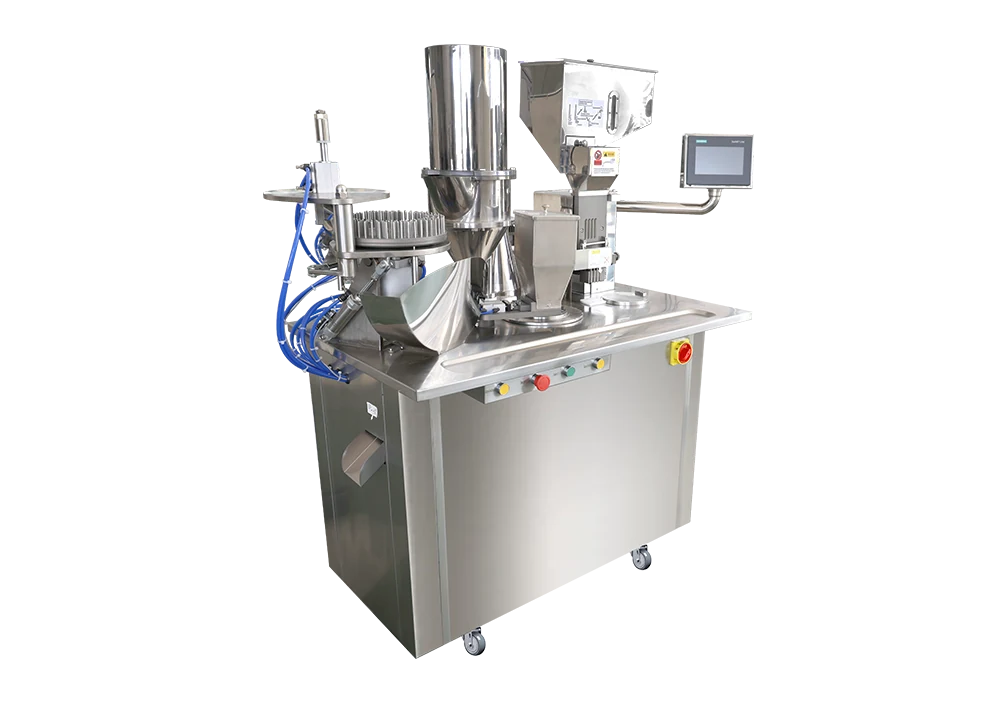

JTJ-D Semi-Automatic Capsule Filling Machine
You are here:
The JTJ-D Semi-Automatic Capsule Filling Machine is a versatile solution for hard capsule production, offering the flexibility to fill either powder or pellets.
Compared with standard powder-filling models, the JTJ-D can be configured for pellet filling by changing the filling configuration, allowing manufacturers to process different capsule formulations on the same machine. Designed for reliable operation and easy changeover, it is well suited for R&D, pilot production, and small to medium batch manufacturing in the pharmaceutical and nutraceutical industries.
ATTRIBUTES
- Dual Filling Capability: Unlike standard powder-filling models, the JTJ-D can be configured for either powder or pellet filling, providing greater production flexibility for different capsule formulations.
- Flexible Filling Configuration: Easily adapts to different product formulations, making one machine suitable for multiple applications.
- Semi-Automatic Operation: Automatically completes capsule separation, filling, locking, and discharge, while manual capsule loading provides greater flexibility for small-batch production.
Key Features & Benefits
Accurate and Consistent Filling
Designed to deliver stable filling performance and reliable weight consistency throughout production.
Compatible with Multiple Capsule Sizes
Suitable for a wide range of hard gelatin and HPMC capsule sizes with interchangeable molds.
Accurate and Consistent Filling
Perfect for R&D, pilot production, clinical trials, and small to medium-scale manufacturing.
Easy Cleaning and Maintenance
Simple structure with convenient access to key components for fast cleaning and product changeover.
TECHNICAL PARAMETERS
| JTJ-C | |
|---|---|
| Productivity for powder filling | 10000-24000 capsules/ hour |
| Productivity for granule filling | 6000-9000 capsules/ hour |
| Capsule type | 000#, 00#, 0#, 1#, 2#, 3#, 4# mechanism standard capsules |
| Filling formulations | Non-stick wet powder, small granules |
| Total power | 2.12 kW |
| Air pressure | 0.03 m3/min 0.7 MPa |
| Vacuum pump | Pumping rate 40 m3/h |
| Overall dimensions (L*W*H) | 1.8 × 0.8 × 1.75 (m3) |
| Total Weight | 330 kg |
Product references: JTJ-D MODEL
