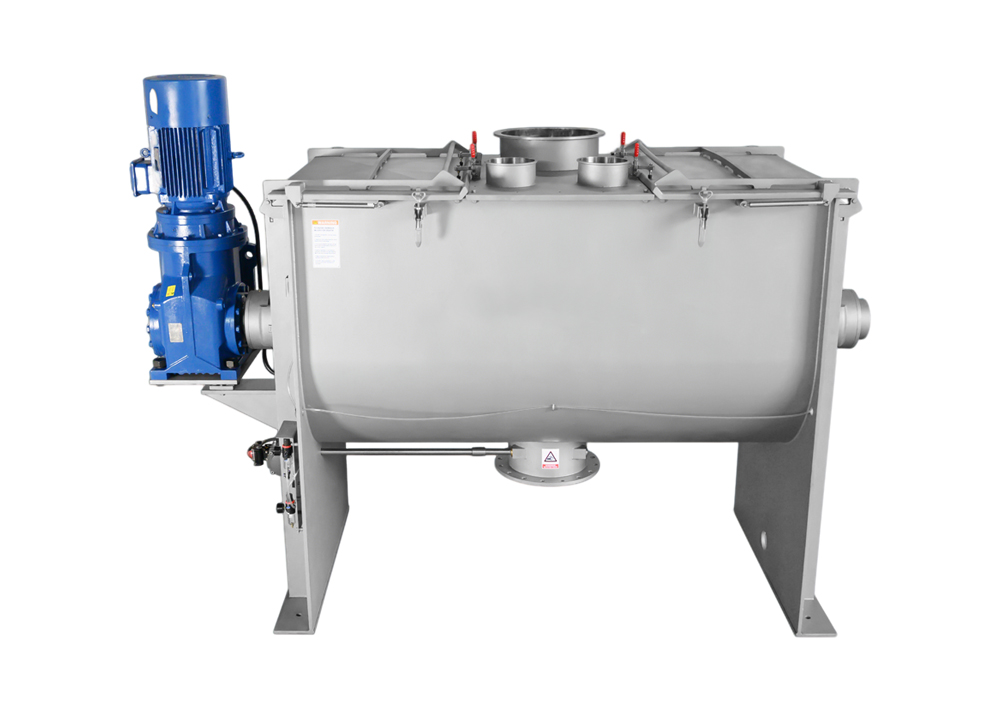

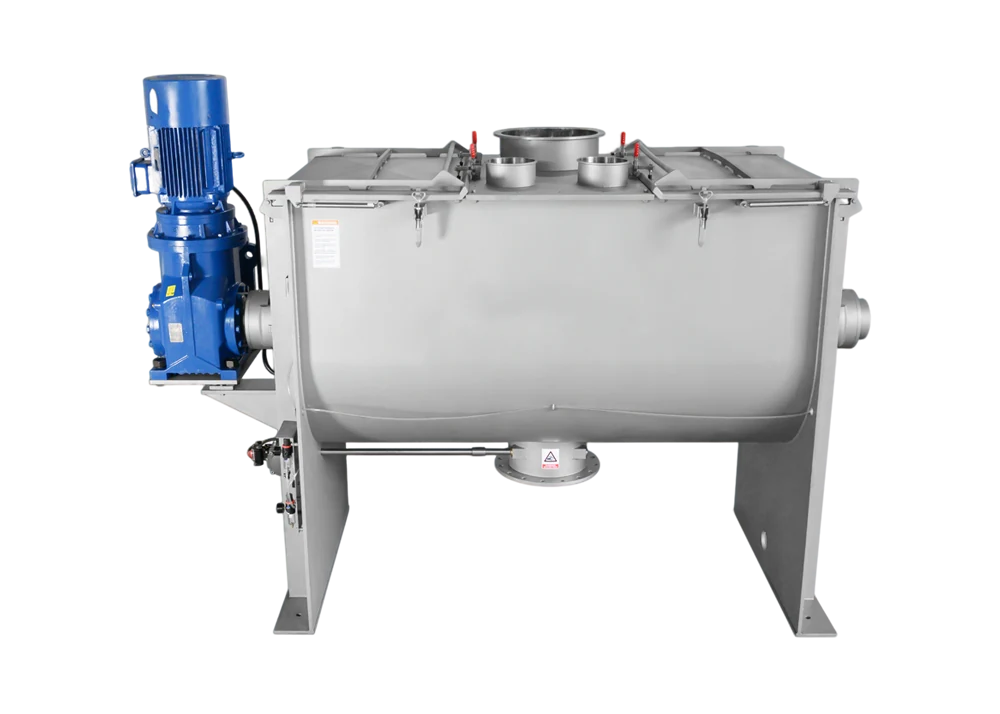

Horizontal Spiral Ribbon Mixer (WSL Series)
You are here:
Optimized for viscous materials and solid-plasma mixtures (powder and rubber slurry).
Mixing of viscous or sticky materials and solid-liquid slurries. Primarily used in the pesticide, chemical, and refractory industries for materials requiring heating or cooling during the blending process.
ATTRIBUTES
- Optimized Flow Dynamics: The multi-layer spiral design creates more vortices in the flow, which accelerates mixing speed and improves overall uniformity.
- Low Resistance Movement: The U-shaped cylinder structure ensures that powders and semi-liquids move with minimal resistance.
- Versatile Material Handling: Specifically adapted for viscous material mixing and solid-plasma (powder and rubber slurry) mixtures.
Broad Application Scope: Highly adaptable for industries including pesticides, food, chemicals, ceramics, and refractory materials.
Key Features & Benefits
Structure:
Consists of a U-shaped container, ribbon mixing blades, and transmission parts.
Mixing Mechanism:
Features positive and negative rotation ribbons installed on the same horizontal axis, forming a low-power, high-efficiency environment.
Blade Design:

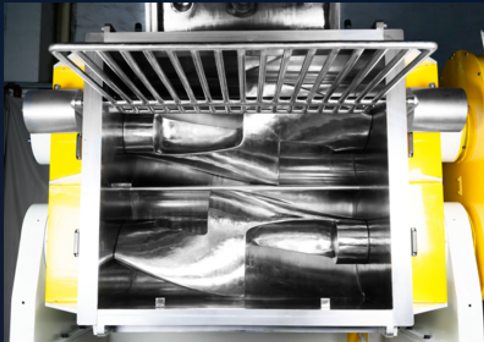

Spiral strip blades are made of double or triple layers; outer layers move material to the center, while inner layers transport material to the sides.
TECHNICAL PARAMETERS
| WSL Series | |
|---|---|
| Specification | Details |
| Bin Volume Range | 50 L – 3500 L |
| Power | 2.2 - 37 kW |
| Speed | 58 - 31 r/min |
Product references: WSL-100 / WSL-150 / WSL-300 / WSL-500 / WSL-1000 / WSL-1500 / WSL-2000 / WSL-3000 / WSL-4000 / WSL-5000 / WSL-6000 MODELS
