ROLLSTOCK EQUIPMENT

Choose the dose.
Choose the lanes.

Compare auger and volumetric-cup filling, then review single-lane and multi-lane back-seal packaging around your product.

01 / STICK PACKS & SACHETS

Two ways to measure the fill.

The VP-320 pair uses back-seal rollstock packaging. Choose the dosing system around the product, then confirm the pack dimensions and seal performance through a trial.

AUGER DOSING

VP-320Y

A servo-controlled auger meters powder through a screw. Review powder flow, bulk density, target dose and the selected auger tooling.

Hopper → Auger rotation → Measured powder fill

Dosing: Auger / nominal 1–200 g
Packing speed: 18–40 packs/min
Bag length × width: 50–180 × 20–150 mm
Maximum film width: 320 mm

Discuss VP-320Y

VOLUMETRIC CUP DOSING

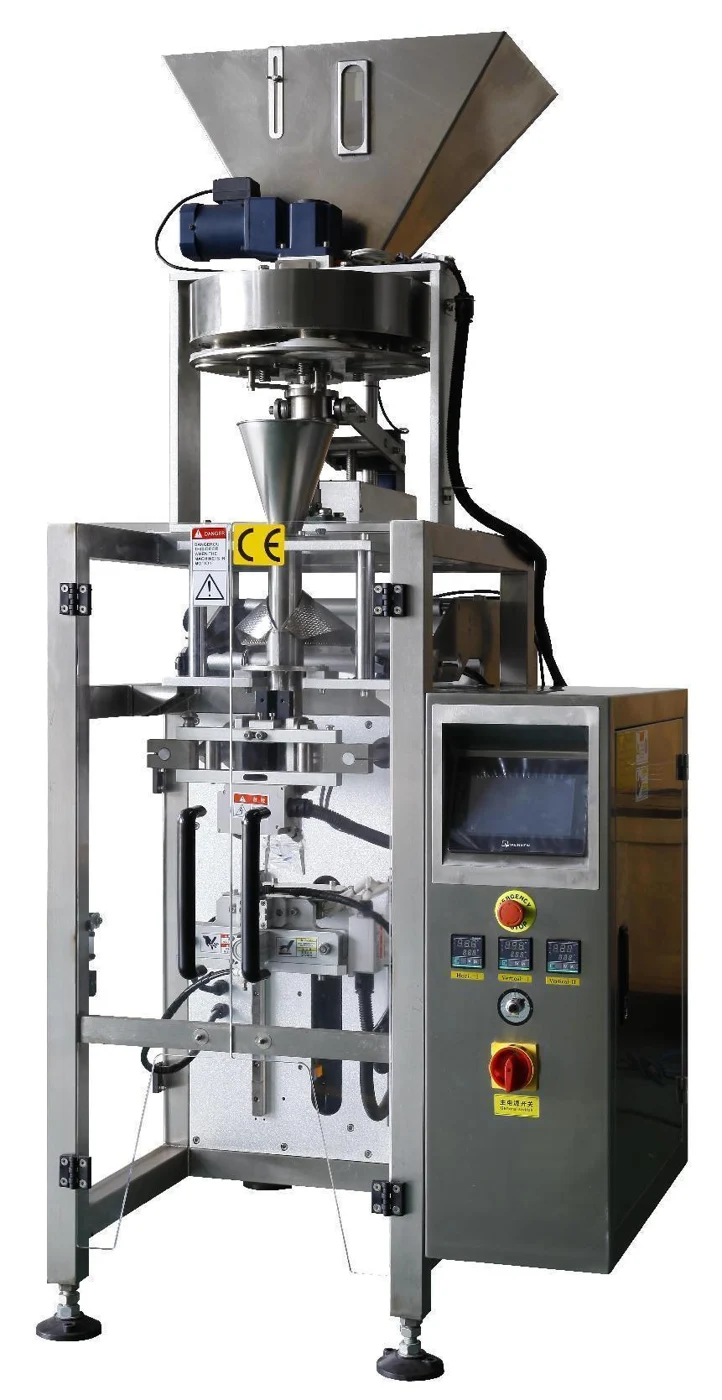

VP-320YL

A measuring cup meters a fixed volume. Consider this configuration for free-flowing granules; check particle size, bulk density and weight variation using your actual product.

Hopper → Cup volume → Measured granule fill

Dosing: Volumetric cup / nominal 2–100 mL
Packing speed: 20–35 packs/min
Bag length × width: 50–150 × 20–150 mm
Maximum film width: 320 mm

Discuss VP-320YL

Specification ranges are reference values for these configurations. Actual output and dosing depend on the product, tooling and pack. Cup volume in mL is not a guaranteed fill weight in grams.

Coordinate the rollstock.

Confirm film width, print repeat, back-seal layout, laminate stiffness and the sealing window. Approve the material and finished pack on the intended line.

Explore rollstock layers & selection

MULTI-LANE POWDER PACKING

Additional lane configurations.

VP-320-2L

A two-lane auger configuration for powder projects that need parallel packing.

Lanes: 2
Reference speed: 20–30 packs/min/lane
Bag length × width: 50–150 × 20–60 mm
Maximum film width: 320 mm

Bag width is fixed by the selected tooling. The final two-lane configuration is confirmed separately.

Discuss VP-320-2L

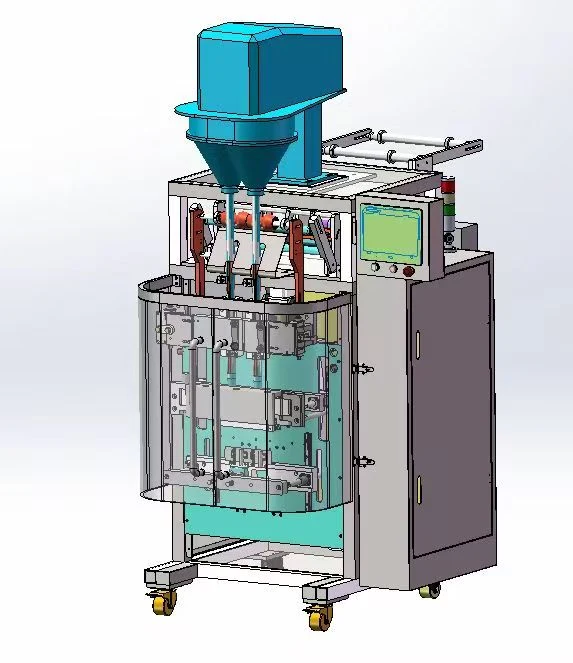

GBK-BF350

Multi-lane auger filling with independent dose adjustment by lane and automatic forming, sealing and cutting.

Configured lanes: 2–4
Reference speed: 30–40 bags/min/lane
Reference fill: 4–10 g/bag
Bag length × width: 40–160 × 20–60 mm
Maximum film width: 350 mm

Final lane count and fixed bag width depend on tooling. Use per-lane speed with the selected number of lanes; do not assume every lane option runs at the maximum rate.

Discuss GBK-BF350

Reference specifications describe the listed configurations. Output depends on the product, dose or count, package, tooling and operating conditions. Confirm the final model, utilities and trial criteria before ordering.
