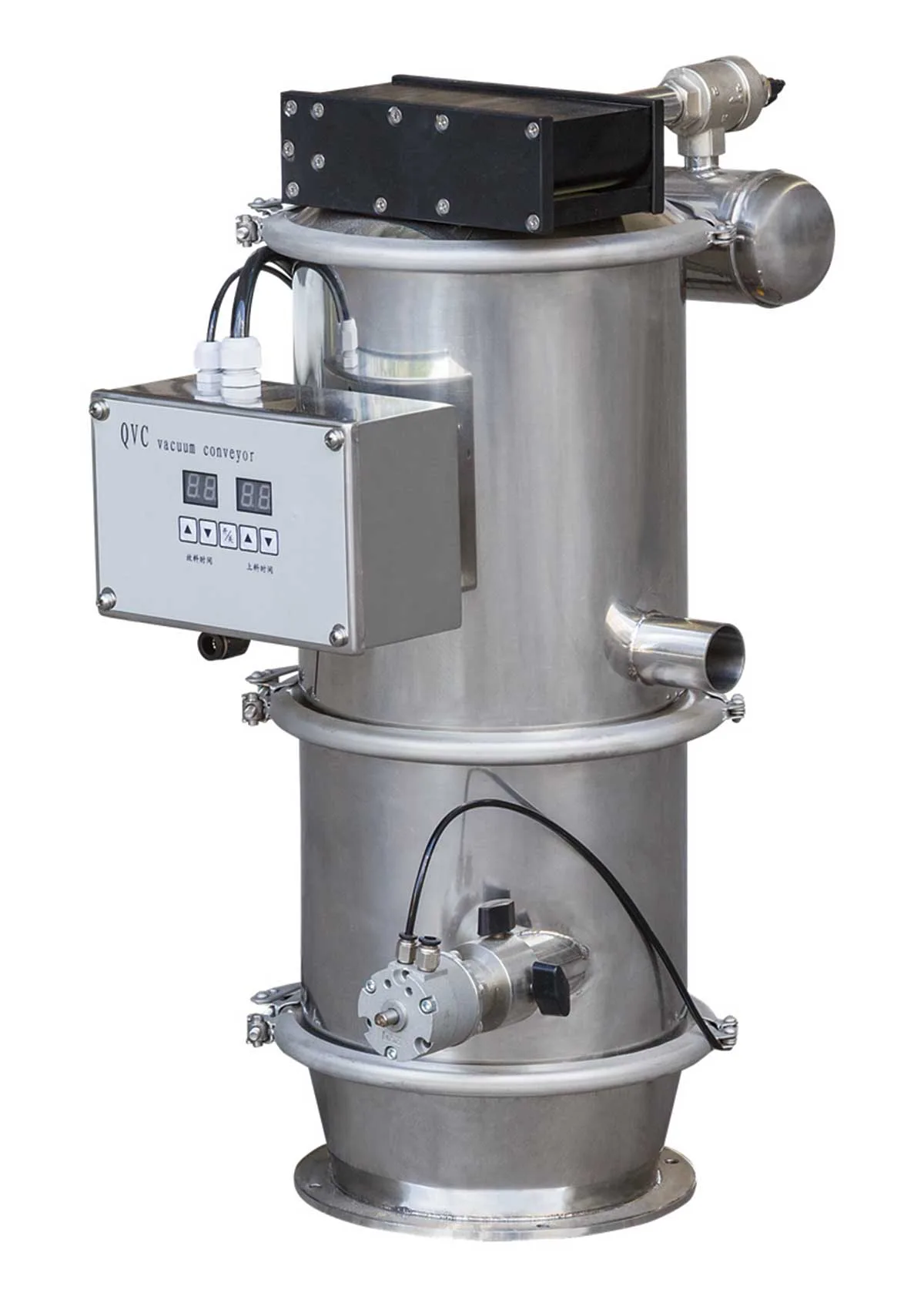

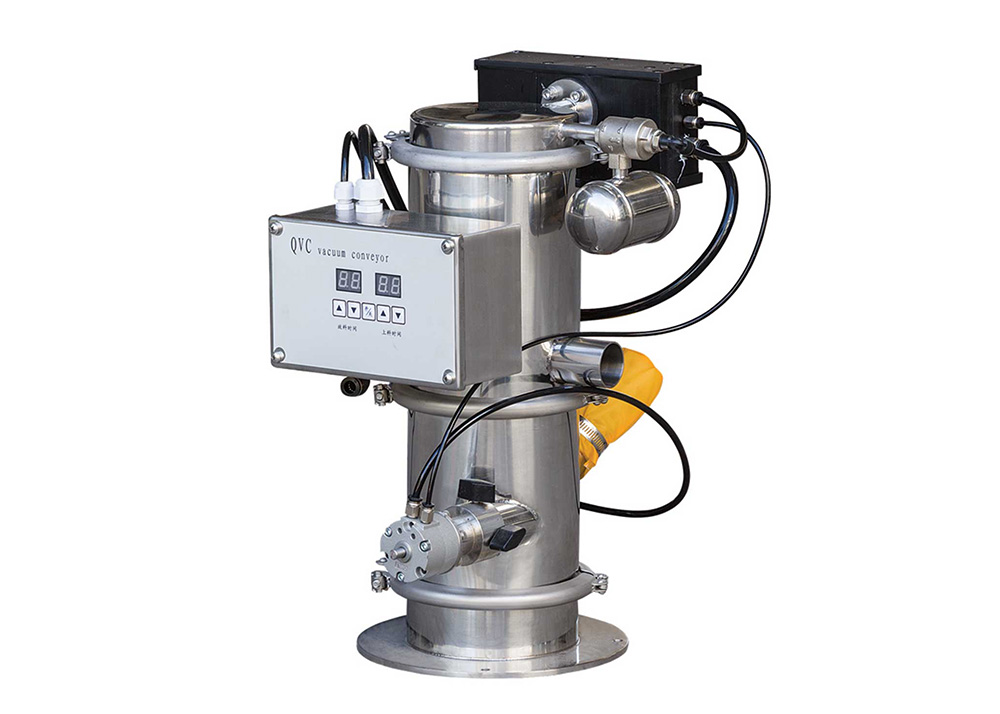

QVC Series Vacuum Loading Machine
You are here:
The QVC Series Vacuum Loader efficiently transfers materials directly from containers into mixers, tablet machines, packing machines, vibration sieves, granulators, and capsule filling machines. This automation eliminates the need for manual loading, reducing labor and ensuring GMP compliance.
ATTRIBUTES
Attributes
- Utilizes compressed air to create a vacuum.
- Operates by drawing powder upward, which is then blocked by a filter.
- Automates material loading, reducing manual labor.
TECHNICAL PARAMETERS
| CF-Q 7500B/C/E | ||
|---|---|---|
| Model | QVC-1 | QVC-2 |
| Conveying Capacity | 250kg/h | 500kg/h |
| Air Consumption | 11m3/h | 22m3/h |
| Supply Pressure | 0.6MPa | 0.6MPa |
| Dimensions | Ф140×470mm | Ф220×620mm |
