Unmatched Precision and Efficiency for Liquid Capsule Production

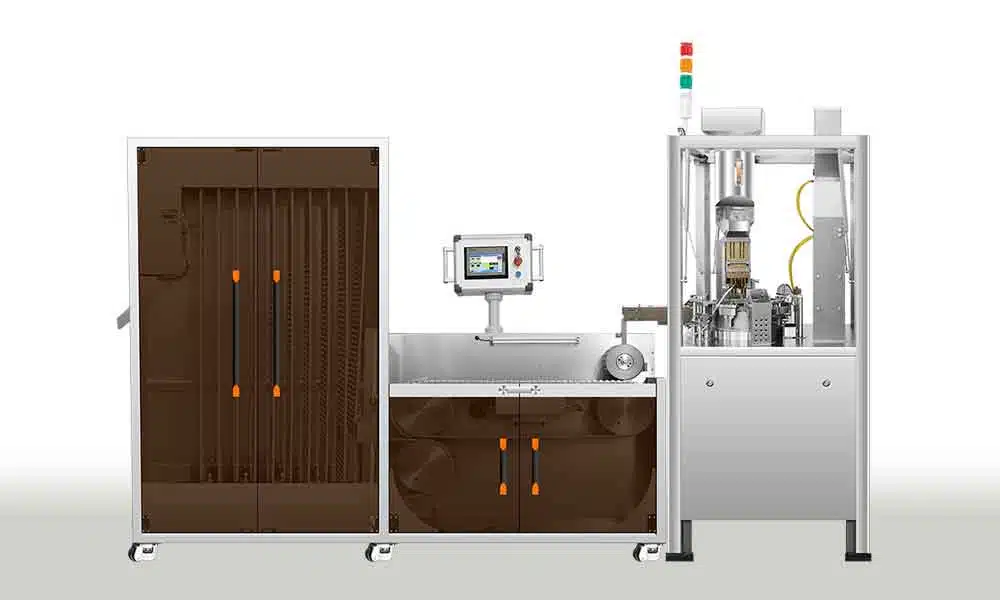

The Automatic Capsule Liquid Filling Machine with Capsule Banding from Encap North America is engineered to meet the highest standards of pharmaceutical and nutraceutical production. Designed for precision, reliability, and efficiency, this machine is ideal for companies looking to enhance their capsule filling operations with a focus on liquid formulations.
Key Features
1. High-Precision Filling Technology

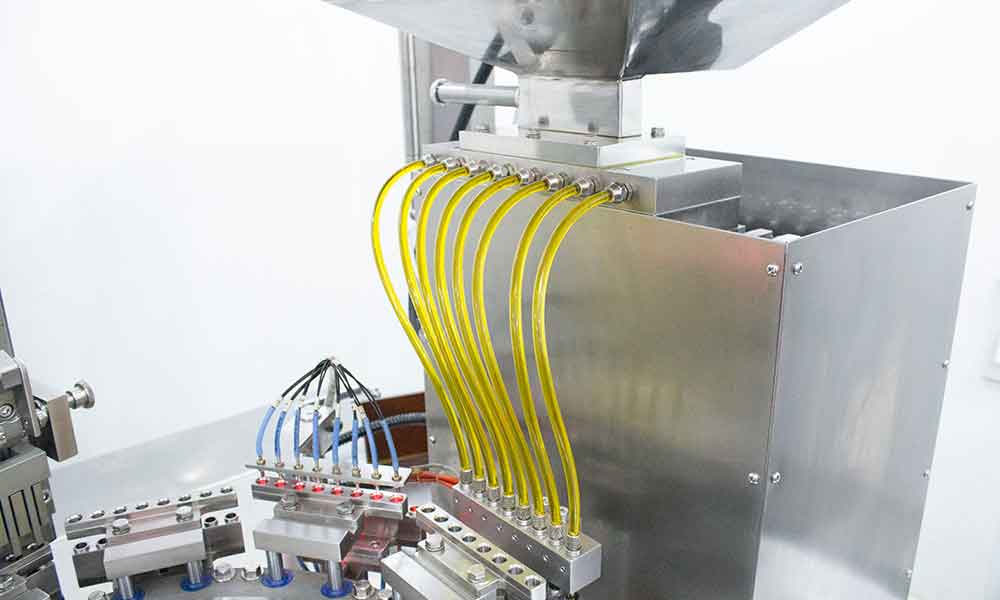

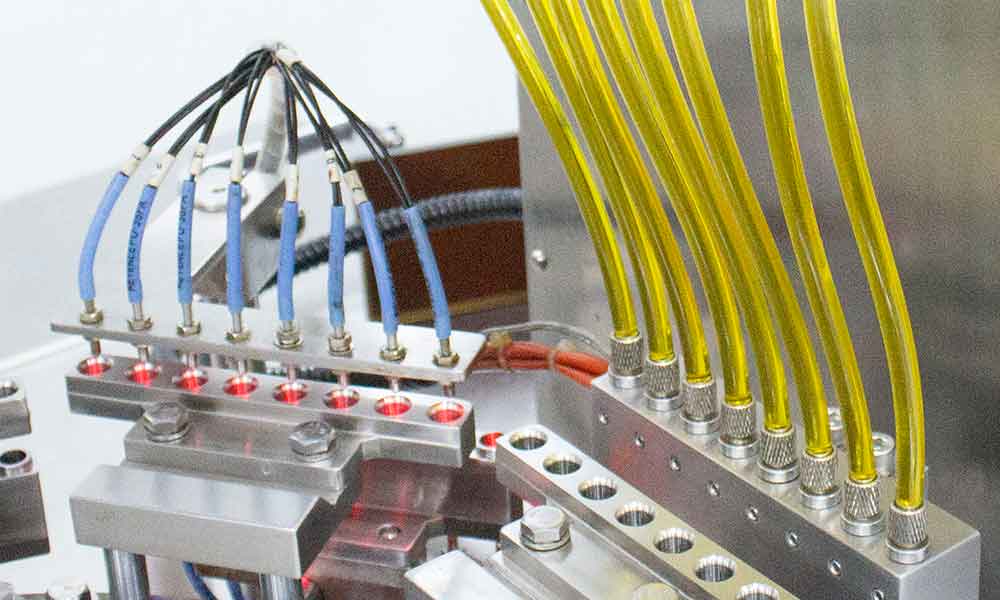

Our machine utilizes advanced filling technology to ensure consistent and accurate filling of liquid formulations into hard capsules. This minimizes waste and ensures each capsule meets your exacting standards.
2. Efficient Banding System

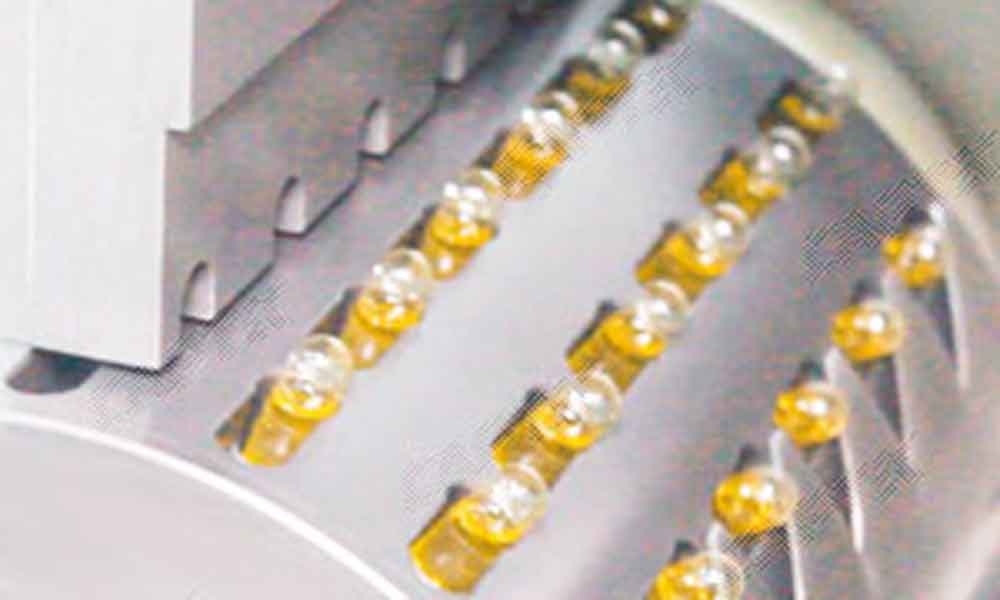

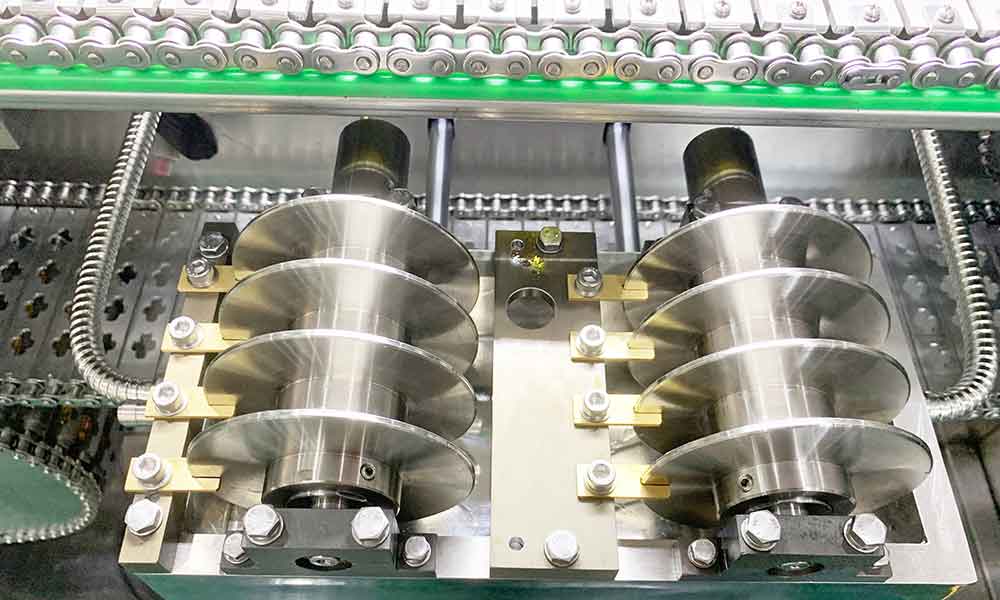

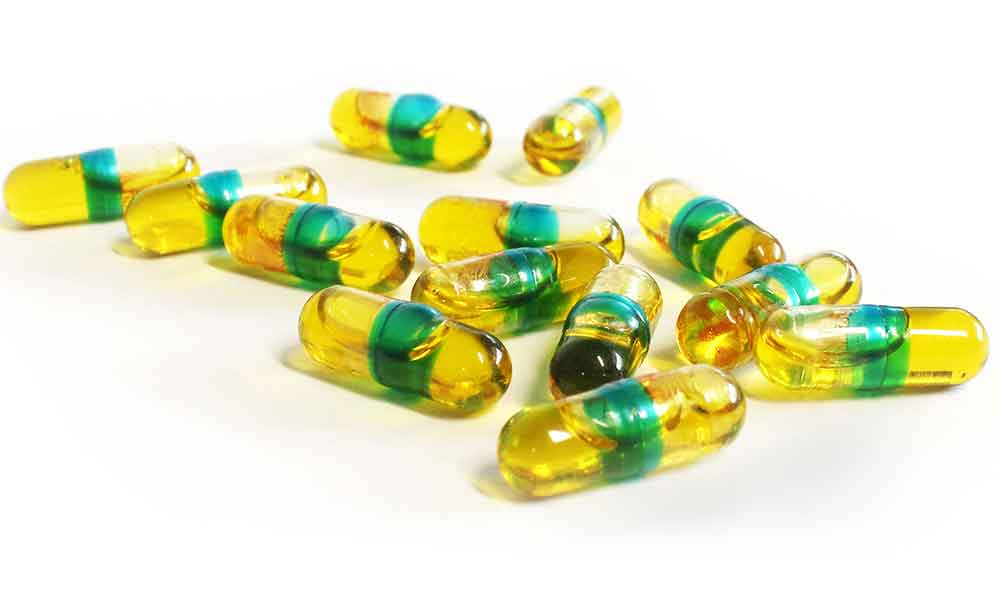

Integrated with a state-of-the-art capsule banding system, this machine provides an additional seal to prevent leakage, offering extra protection for sensitive liquid formulations. The banding also enhances the visual appeal of the capsules, making them more attractive to consumers.
3. Versatile Application
Suitable for a wide range of liquid viscosities, this machine can handle everything from thin liquids to thicker, more viscous formulations. It’s designed to work seamlessly with a variety of capsule sizes, providing flexibility in your production line.
4. Automated Operation
Featuring fully automated controls, the machine reduces manual intervention, ensuring a smoother production process. The user-friendly interface allows operators to monitor and adjust settings with ease, minimizing downtime and maximizing productivity.
5. Robust Construction
Built with high-quality stainless steel, this machine is not only durable but also easy to clean and maintain. It meets GMP standards, ensuring compliance with industry regulations and maintaining the integrity of your production environment.
TECHNICAL PARAMETERS
| CF-Q 7500B/C/E | |||
|---|---|---|---|
| Model | YNJP-300C | YNJP-450C | YNJP-600C |
| Max. Output | 18,000 capsules/hour | 27,000 capsules/hour | 36,000 capsules/hour |
| Number of Die Holes | 4 | 6 | 8 |
| CF-Q 7500B/C/E | |
|---|---|
| Filling Dosage Form | Oily liquid, solution, suspension |
| Capsule Size | 00# ~ 2# |
| Motor Power (Plunger Pump) | 3.1kw+2.2kw (Dust Collector) |
| Power Supply | AC 220/380V 50/60Hz 3 Phases |
| Noise | ≤75dBA |
| Vacuum Degree | -0.02~-0.06 MPa |
| Dimensions | 870×1090×2100mm |
| Weight | 850kg |
TECHNICAL PARAMETERS
| Model | Max. Output | Dimensions |
|---|---|---|
| CBM-300C | 18,000 capsules/hour | 2460×830×1900mm |
| CBM-450C | 27,000 capsules/hour | 2460×870×1900mm |
| CBM-600C | 36,000 capsules/hour | 2460×920×1900mm |
| CF-Q 7500B/C/E | |||
|---|---|---|---|
| Model | CBM-300C | CBM-450C | CBM-600C |
| Max. Output | 18,000 capsules/hour | 27,000 capsules/hour | 36,000 capsules/hour |
| Dimensions | 2460×830×1900mm | 2460×870×1900mm | 2460×920×1900mm |
| CF-Q 7500B/C/E | |
|---|---|
| Motor Power | 3.6kw |
| Power Supply | AC 220/380V 50/60Hz 3 Phase |
| Air Compression | 6m³/h |
| Relative Humidity | 25%~40% |
| Environment Temperature | 20°C~25°C |
Why Choose Encap North America?
Enhanced Production Efficiency
Our machine is designed to streamline your production process, reducing waste and increasing output. With high-speed operation and minimal maintenance requirements, it allows you to maintain consistent quality while meeting demanding production schedules.
Superior Product Quality
The precise filling and secure banding capabilities of this machine ensure that each capsule is filled accurately and sealed properly, preserving the integrity and efficacy of your liquid formulations. This results in a higher-quality end product that meets consumer expectations.
Versatile and Scalable
Whether you’re producing small batches or scaling up to meet higher demand, our machine offers the flexibility you need. Its ability to handle different capsule sizes and liquid viscosities makes it a versatile choice for a wide range of applications.
Applications Across Industries
This Automatic Capsule Liquid Filling Machine is not just limited to the pharmaceutical industry. Its versatility makes it suitable for:
Nutraceuticals
Perfect for encapsulating liquid vitamins, herbal extracts, and other health supplements.
Cosmetics
Ideal for producing beauty capsules filled with essential oils, serums, and other liquid formulations.
Veterinary Products
Efficiently fill capsules with liquid medications or supplements designed for animals.
SEE THE MACHINE IN ACTION
Interested in learning how this machine can optimize your production process? Watch our video demonstration to see the Encap Automatic Capsule Filling Machine in operation and discover how it can enhance your business.
Simplified Maintenance and Support
To keep your operations running smoothly, this machine is designed for easy maintenance. With straightforward cleaning procedures and readily available spare parts, you can minimize downtime and keep production on track. Additionally, our expert support team is always on hand to assist with any technical issues, ensuring that your machine continues to perform at its best.
