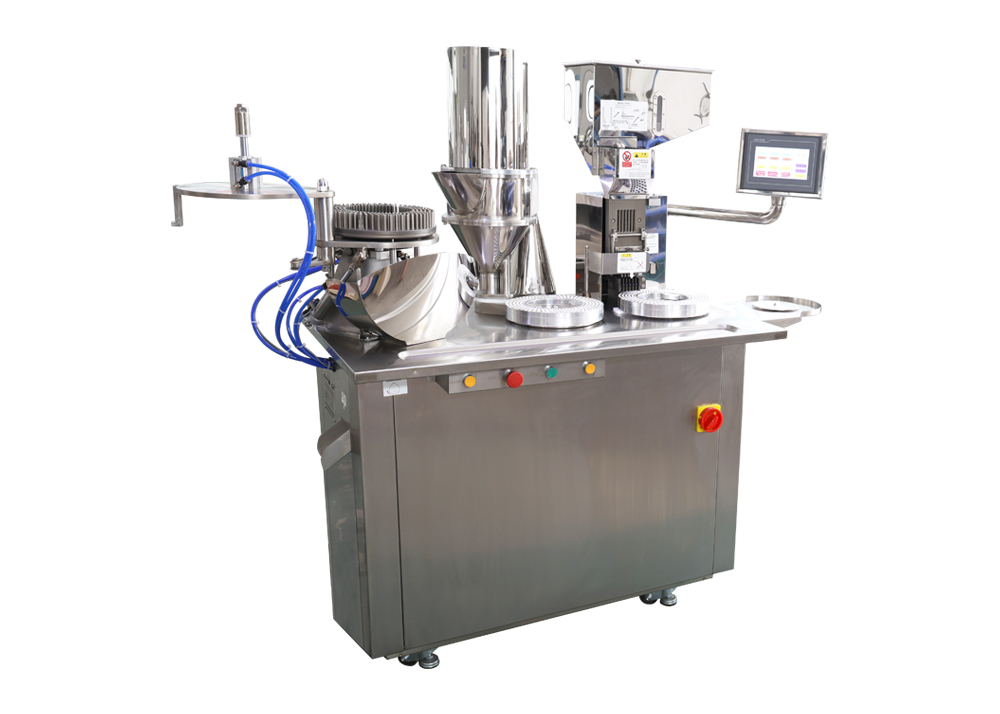

JTJ-C Semi-Automatic Capsule Filling Machine

Products
You are here:
  1. Home
  2. Capsule Filling Machinery and Equipment
  3. JTJ-C Semi-Automatic Capsule Filling Machine

Semi Automatic Capsule Filling Machine offers a practical and cost-effective solution for small to medium-scale capsule production.

Compared with full automatic models, it provides greater flexibility and easier operation while maintaining stable filling performance.

ATTRIBUTES

Cost-Effective Investment:

Semi automatic capsule filling machines require a significantly lower initial investment compared with full automatic systems, making them ideal for:

  • Start-up companies
  • Laboratories
  • R&D applications
  • Pilot production
  • Small batch manufacturing

Download Spec Sheet

Enquire Here

Key Features & Benefits

Flexible Production

The machine is suitable for frequent product changes and trial formulations. Operators can easily adjust the filling process according to different powder characteristics and capsule sizes.

Easy Operation and Maintenance

With a simpler mechanical structure, the machine is:

  • Easy to operate
  • Easy to clean
  • Easy to maintain

The reduced complexity also helps minimize maintenance cost and downtime.

Lower Material Waste

During product development or small-scale production, semi automatic operation allows better process monitoring and easier adjustment, helping reduce powder waste and material loss.

Compact Design

Compared with full automatic capsule filling lines, semi automatic models require less installation space and simpler utility conditions, making them suitable for facilities with limited workshop area.

TECHNICAL PARAMETERS

CF-Q 7500B/C/E
Productivity10000-25000 capsules/ hour
Capsule type 000#, 00#, 0#, 1#, 2#, 3#, 4# mechanism standard capsules
Filling formulations Non-stick wet powder, small granules
Total power2.12kW
Air pressure0.03m3/min 0.7MPa
Vacuum pumpPumping rate 40m3/h
Overall dimensions (L*W*H)1.8 × 0.8 × 1.75 (m3)
Total Weight330kg

Product references: JTJ-C MODEL
